3211819
| Manufacturer | |
| Description | DINレール・ターミナルブロック PT 6 BU Conn Feed-Through Terminal Blocks 2 POS 41A TERM BLOCK MOD FEED-THROUGH BLUE DIN Rail Terminal Blocks PT 6 BU PT6BU |
| Category |
Business
| Tradename | CLIPLINE PT | Standard Package | 1 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - UL | 40A | Voltage - UL | 600V |
| Current - IEC | 41A | Voltage - IEC | 1000V |
| Voltage Rating | 1 kV | Current Rating (Max) | 41 A |
Mechanical
| Color | Blue | Width | 8.2 mm |
| Height | 42.2 mm | Length | 57.7 mm |
| Wire Gauge | 8 | Stripping Length | 12mm |
| Terminal - Width | 8.2mm | Termination Style | Push In, Spring |
| Number of Contacts | 2 | Number of Positions | 2 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 8-20 AWG |
| Wire Gauge or Range - mm2 | 0.5-10mm² | ||
Product Info
| Type | Feed Through | Series | PT |
| Number of Levels | 1 | ||
Similar Parts
3031005
Phoenix Contact
Terminal Block Tools & Accessories PS-8 MODULAR TEST PLUG Conn Test Plug PL 1 POS ST 1 Port TEST ADAPTOR RED Phoenix Contact 3031005 Test Adapter Terminal Block, Series: PS PS-8
3030323
Phoenix Contact
ターミナルブロック・ツールとアクセサリ FBS10-8 Conn Jumper PL 10 POS ST BRIDGE TERM BLOCK 10POS Phoenix Contact 3030323 Plug In Bridge Terminal Block, Series: FBS Terminal Block Tools & Accessories FBS10-8 Bridge;Plug-InBridge;10;Red;Crossconnectionsintheterminalcenter. Comb bridge; ways:10; Width:8mm Phoenix Contact FBS 系列 10 极跳片
3024481
Phoenix Contact
Terminal Block Tools & Accessories ATP-ZFK 2.5/6 PARTITION PLATE STS Connector Accessories Partition Plate Gray PARTITION PLATE GRAY Phoenix Contact 3024481 Partition Plate Terminal Block, Series: ATP-ST PARTITION PLATE PartitionPlate;TermBlk;Gray;49mmH;75mmL;2mmW Separating plate; Application: ST6; polyamide Phoenix Contact ATP-ST 系列 隔板
0201744
Phoenix Contact
Terminal Block Tools & Accessories MPS-MT Test Plug, Consisting Of Metal Part For 2.3mm Diameter Socket Hole TERM BLK TEST PLUG W/O SLEEVE Testplugs Test Plug
3030284
Phoenix Contact
Terminal Block Tools & Accessories FBS 2-8 Conn Jumper PL 2 POS ST BRIDGE TERM BLOCK 2POS Phoenix Contact 3030284 Plug In Bridge Terminal Block, Series: FBS Bridge;Plug-InBridge;2;Red;Crossconnectionsintheterminalcenter. Phoenix Contact FBS 系列 2 极跳片
3030297
Phoenix Contact
Terminal Block Tools & Accessories FBS 3-8 Conn Jumper PL 3 POS ST BRIDGE TERM BLOCK 3POS Phoenix Contact 3030297 Plug In Bridge Terminal Block, Series: FBS Bridge;Plug-InBridge;3;Red;Crossconnectionsintheterminalcenter Phoenix Contact FBS 系列 3 极跳片
3030860
Phoenix Contact
Terminal Block Tools & Accessories RB ST 6-(2.5/4) STEP DOWN BRIDGE Conn Jumper M 2 POS ST REDUCING BRIDGE 2POS RED Phoenix Contact 3030860 Reducing Bridge Terminal Block, Series: RB ST Bridge;TermBlk;ReducingBridge;2;Red Phoenix Contact RB ST 系列 减少桥接
3030310
Phoenix Contact
Terminal Block Tools & Accessories FBS 5-8 5 POS BRIDGE Conn Jumper PL 5 POS ST BRIDGE TERM BLOCK 5POS Cross connector/jumper for modular terminal block FBS 5-8 Bridge;Plug-InBridge;5;Red;Crossconnectionsintheterminalcenter. Phoenix Contact FBS 5-8 系列 5 极跳片
3030307
Phoenix Contact
Terminal Block Tools & Accessories FBS 4-8 4 POS BRIDGE Conn Jumper PL 4 POS ST BRIDGE TERM BLOCK 4POS Jumper bar FBS 4-8 Cross connector/jumper for modular terminal block FBS 4-8 Bridge;Plug-InBridge;4;Red;Crossconnectionsintheterminalcenter. Phoenix Contact FBS 系列 4 极跳片
3000587
Phoenix Contact
CONN SWITCH JMPR 2POS GRY/ORG Terminal Block Tools & Accessories SB-MER 2-8 SB-MER2-8 Phoenix Contact

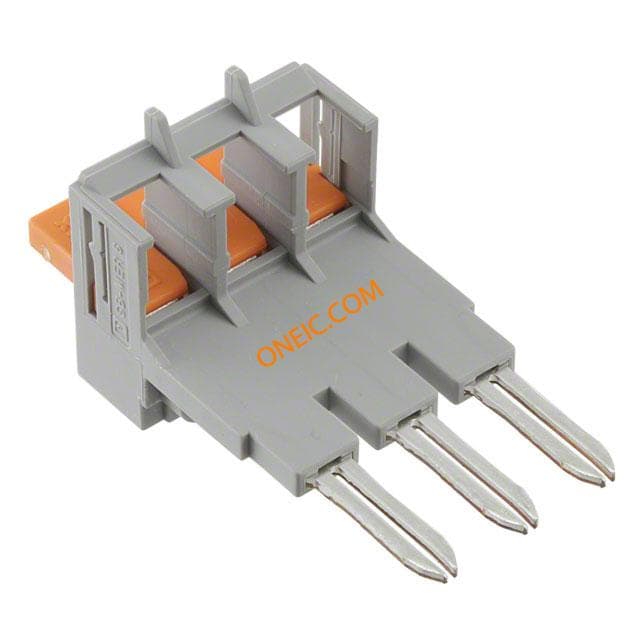

3000588
