3210169
| Manufacturer | |
| Description | DIN Rail Terminal Blocks PT 2,5-TWIN-MT Conn Disconnect and Test Disconnect Terminal Blocks F 3 POS Screw 20A CONN TERM BLK W/TEST DISC 5.2MM Non-Fuse DIN Rail Terminal, 20A, 400V, Grey ,Push In Termination Conn;TermBlk;DINRail;Disconnect,Test;Push-InConn;26-12AWG;Gray;5.2mmW Phoenix Contact PT 系列 灰色 刀剥离端子块 , 20A, 400 V |
| Category |
Business
| Tradename | CLIPLINE PT | Product Category | DIN Rail Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - UL | 20A | Voltage - UL | 300V |
| Current - IEC | 20A | Voltage - IEC | 400V |
| Voltage Rating | 400 V | Current Rating (Max) | 20A |
| Voltage - Input (Min) | 400V | ||
Mechanical
| Color | Gray | Wire Gauge | 26 → 12 AWG |
| Termination | Screw | Cable Material | 0.14 → 4mm² |
| Mounting Style | DIN Rail | Number of Rows | 3 |
| Housing Material | Polyamide | Primary Material | DINRail |
| Stripping Length | 10mm | Terminal - Width | 5.2mm |
| Termination Rows | 推入式 | Termination Style | Push In, Spring |
| Color - Connectors | Grey | Number of Contacts | 3 |
| Number of Positions | 3 | Material - Insulation | Polyamide (PA), Nylon |
| Wire Gauge or Range - AWG | 12-26 AWG | Wire Gauge or Range - mm2 | 0.14-4mm² |
Product Info
| Type | Disconnect and Test Disconnect Te... | Gender | F |
| Series | PT | Disconnect Type | Switch, Knife |
| Number of Layers | 单层 | Number of Levels | 1 |
| Base Product Number | PIT2.5-TWIN-MT | ||
Documents & Media
Similar Parts
1204517
Phoenix Contact
Screwdrivers, Nut Drivers & Socket Drivers SZF 1-0 6X3 5 Digital Input Module SCREWDRIVER SLOT 0.6X3.5MM 7.13" Bladed screwdriver SZF 1-0,6X3,5 Screwdriver, blade: 0.6 x 3.5 x 100 mm, length 180 mm Actuationtool,forSTterminalblocks,size:0.6x3.5x100mm

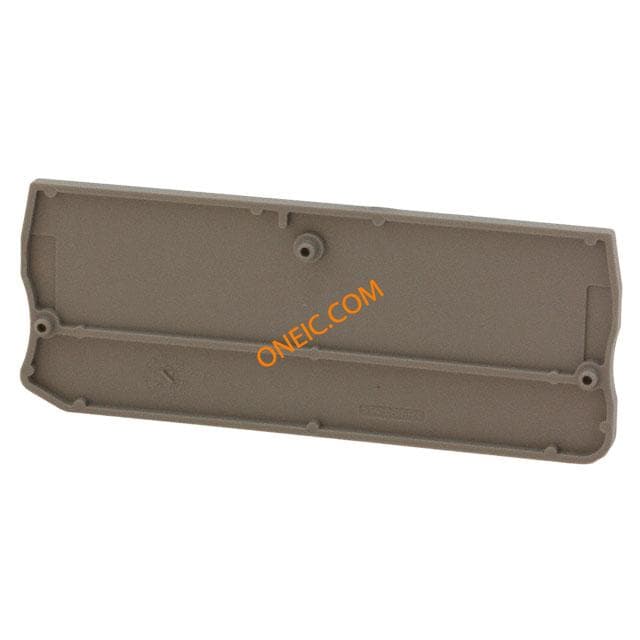

3211317
