3100305
| Manufacturer | |
| Description | DIN Rail Terminal Blocks 4.2mm MINI BLOCK MT 1.5 GRAY 4.2mm Conn Modular Terminal Blocks F 2 POS Screw ST 17.5A CONN TERM BLK FEED THRU 4.2MM Non-Fuse DIN Rail Terminal, 17.5A, 400V, Grey ,Screw Down Termination TERMINAL BLOCK, DIN, GREY Conn;TermBlk;Screw;1;2;30-14;Gray;15A;300V;4kV;M2;0.22Nm(Min.);PA Phoenix Contact MT 系列 灰色 标准 DIN 导轨端子 , 17.5A, 400 V |
| Category |
Business
| Product | DIN Rail Terminal Blocks | Product Category | DIN Rail Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | UL,CSA | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current - UL | 15A | Voltage - UL | 300V |
| Current - IEC | 17.5A | Voltage - IEC | 400V |
| Voltage Rating | 400 V | Number of Poles | :1 |
| Conductor Strand | :1.5mm² | Voltage - Working | :400V |
| Current Rating (Max) | 17.5 A | Voltage - Input (Min) | 400V |
| Voltage - Protection Level (VP) (2416) | 4kV | ||
Mechanical
| Color | Gray | Depth | 4.2 |
| Pitch | :4.2mm | Width | 4.2 mm |
| Length | 22 mm | Weight | 0.081694 oz |
| Wire Gauge | 26 | Termination | Screw |
| Mounting Type | Straight | Terminal Type | :Screw |
| Connector Type | :Terminal Block, DIN Rail | Contact Finish | :- |
| Mounting Style | DIN Rail | Number of Rows | 2 |
| Contact Material | :- | Housing Material | Polyamide |
| Length - Overall | 22 | Primary Material | DINRail |
| Size / Dimension | 22mmLx4.2mmW | Stripping Length | 6mm |
| Terminal - Width | 4.2mm | Pin Hole Diameter | 4.2mm |
| Termination Style | Screw | Color - Connectors | Grey |
| Number of Contacts | 2 | Cross Hole Diameter | 0.14to1.5mm^2 |
| Number of Positions | 2 | Material - Insulation | Polyamide (PA), Nylon |
| Thread/Screw/Hole Size | M2 | Wire Gauge or Range - AWG | 26-16 |
| Wire Gauge or Range - mm2 | 16 | 1st Connector Mounting Type | :DIN Rail |
| Torque - Rated (oz-in / mNm) | 0.22Nm(Min.) | ||
Product Info
| Type | Wire to Wire | Gender | F |
| Series | MT | Number of Levels | 1 |
| Base Product Number | MT1,5 | Compatible Sensor Size (Max) | :1.5mm² |
Documents & Media
Similar Parts
1205037
Phoenix Contact
Screwdrivers, Nut Drivers & Socket Drivers SM. SCREWDRIVER Hardware Tools, ScrewDriver, Bladed, Matches All Screw Terminal Blocks Up To 1.5mm Sqaure SCREWDRIVER SLOT 0.4X2.5MM 6.34" Tool, Driver ScrewDriver;160mm;0.4mm;2.5mm;80mm;30g
1401637
Phoenix Contact
ターミナルブロック・ツールとアクセサリ E/MBK END BRACKET Connector Accessories End Clamp Straight Polyamide Gray TERMINAL BLOCK END BRACKET End bracket E/MBK Terminal Block Tools & Accessories E/MBK END BRACKET Mn35 Digital Multimeter Ac/Dc Volts, Dc Amps, Resistance, Temp EndClamp;TermBlk;Gray;22mmLx6.2mmWx11.4mmH Phoenix Contact E/MBK 系列 端夹
0803579
Phoenix Contact
Terminal Block Tools & Accessories 4.2mm 10x10 STRIPS CONN ACC MARKER STRIP UNPRINTED Phoenix Contact 0803579 Marker Card Terminal Block, Series: ZBFM Connector Accessories Flat Zack Marker Sheet Polyamide White Zackmarkersheet,flat,unprinted:100-section,10strips Phoenix Contact ZBFM 系列 标记卡
3001624
Phoenix Contact
Terminal Block Tools & Accessories 10POS. FIXED BRIDGE Conn Jumper M 10 POS ST CONN TERM BLK FIXED BRIDGE Phoenix Contact 3001624 Fixed Bridge Terminal Block, Series: FBRN CONNECTION BAR, FBRN-10-4N FixedBridgeBar;TermBlk;Universal;10;Silver Phoenix Contact FBRN 系列 固定桥接
0800268
Phoenix Contact
Terminal Block Tools & Accessories ZBFM 4/WH CONN ACC MARKER STRIP PREPRINT Zack Strip, Flat, 100-Section, Labeled Horizontally With Consecutive Numbers From 1-100, For All Terminal Blocks, Pitch 4.2mm, Color White
3100321
Phoenix Contact
Terminal Block Tools & Accessories END COVER Connector Accessories End Cover Straight Gray CONN TERM BLK END COVER Phoenix Contact 3100321 Cover Terminal Block, Series: D-MT END COVER, D-MT 1.5 EndCover;TermBlk;Gray;22mmL;1mmW Phoenix Contact D-MT 系列 端板
1421659
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET FOR NS15 Connector Accessories End Clamp Polyamide Gray CONN TERM BLK END BRACKET 5.2MM Phoenix Contact 1421659 End Clamp Terminal Block, Series: E/MK EndClamp;TermBlk;Gray;21.2mmL;6mmW;18mmH

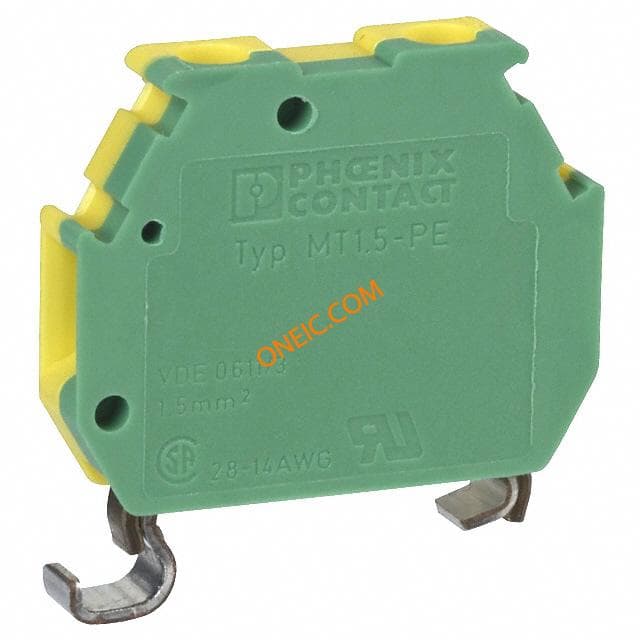

3100318
