3061826
| Manufacturer | |
| Description | CONN TERM BLK PLUG RCPT 4POS DIN Rail Terminal Blocks PT 6-QUATTRO/2P PT6-QUATTRO/2P Feed-Through Terminal |
| Category |
Business
| Tradename | CLIPLINE PT | Standard Package | 50 |
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Current - UL | 40A | Voltage - UL | 600V |
| Current - IEC | 41A | Voltage - IEC | 1000V |
| Voltage Rating | 1000 V | Current Rating (Max) | 41A |
Mechanical
| Color | 灰色 | Length | 3.929" (99.80mm) |
| Height (Max) | 2.008" (51.00mm) | Housing Color | Gray |
| Mounting Type | DIN Rail | Stripping Length | 12mm |
| Terminal - Width | 8.2mm | Termination Rows | 插入式，推入式 |
| Termination Style | Plug Receptacles, Push In, Spring | Number of Positions | 4 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 8-20 AWG |
| Wire Gauge or Range - mm2 | 0.5-10mm² | ||
Product Info
| Type | Plug Connection | Series | PT |
| Number of Levels | 1 | ||
Environmental
| Operating Temperature | +125°C | ||
Documents & Media
Similar Parts
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
3040588
Phoenix Contact
Terminal Block Tools & Accessories PC Connector Accessories Keying CONN TERM BLK KEYING STAR RED Phoenix Contact 3040588 Keying Star Terminal Block, Series: PC KEYINGSTAR,RED Phoenix Contact CLIPLINE 系列 键接星
0808781
Phoenix Contact
Terminal Block Tools & Accessories ZBF 8 UNPRINTED 10 SECTION ZACK MARKER STRIP Phoenix Contact 0808781 Marker Strip Terminal Block, Series: ZBF Cable Accessories Zack Strip Polyamide White Phoenix Contact ZBF 系列 标记条
0201744
Phoenix Contact
Terminal Block Tools & Accessories MPS-MT Test Plug, Consisting Of Metal Part For 2.3mm Diameter Socket Hole TERM BLK TEST PLUG W/O SLEEVE Testplugs Test Plug
3030310
Phoenix Contact
Terminal Block Tools & Accessories FBS 5-8 5 POS BRIDGE Conn Jumper PL 5 POS ST BRIDGE TERM BLOCK 5POS Cross connector/jumper for modular terminal block FBS 5-8 Bridge;Plug-InBridge;5;Red;Crossconnectionsintheterminalcenter. Phoenix Contact FBS 5-8 系列 5 极跳片
1206421
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Galvanized, Perforated, HeIGHt 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM SLOTTED 2M DINrail,Galvanized,perforated,height7.5mm,width35mm,eachpiece2MTRS
1206434
Phoenix Contact
Mounting Hardware NS 35/ 7,5 ZN UNPERF 2000MM DIN Rail, Material Galvanized, Un-Perforated, Height 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM UNSLOT 2M NS35/75ZNUNPERF2000MM
1201756
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN rail, Deep Drawn, High Profile DIN RAIL 35X15MM UNSLOT ALUM 2M NS35/15-ALUNPERF2000MM(Suppliedin2meterlengthspriceper2meters)

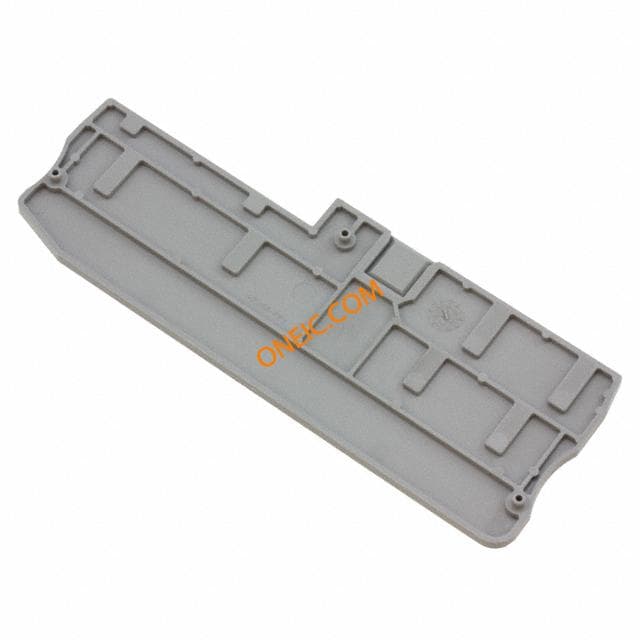

3061855
Phoenix Contact
CONN TERM BLK END COVER PT GRAY Terminal Block Tools & Accessories D-PT 6-QUATTRO/2P D-PT6-QUATTRO/2P Phoenix Contact
3033804
Phoenix Contact
CONN TERM BLK JUMPER 4POS RED Terminal Block Tools & Accessories FBSRH 4-8 FBSRH4-8

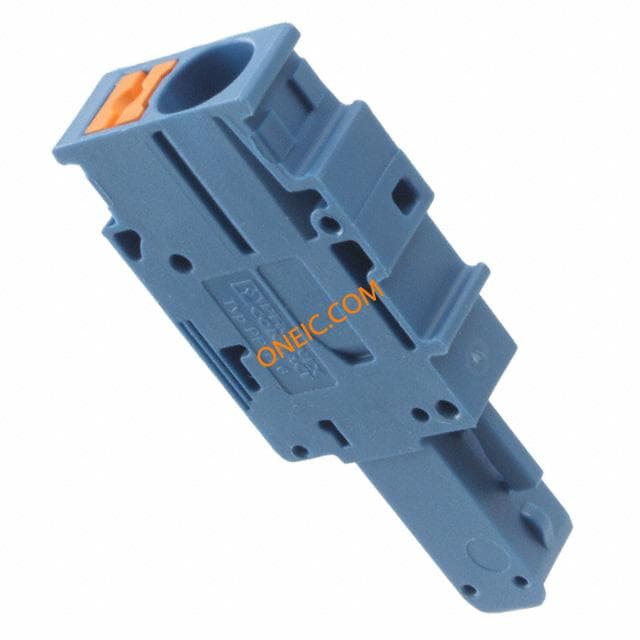

3061703
Phoenix Contact
CONN TERM BLK PLUG 1POS BLUE TERM BLOCK PLUG 1POS STR DIN Rail Terminal Blocks PP-H 6/ 1-M BU PP-H6/1-MBU Phoenix Contact CLIPLINE 系列 1 路 接线端子插头, 推入式端接, 1000 V

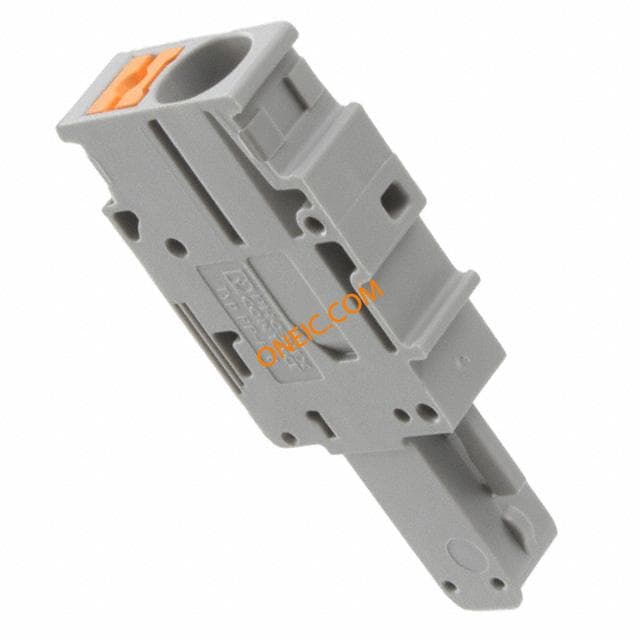

3061664
