3058334
| Manufacturer | |
| Description | DIN Rail Terminal Blocks RSC 5-T-F Conn Feed-Thru F 2 POS Screw 50A CONN TERM BLOCK FEED THRU 13MM Conn;TermBlk;Panel;TestDisconnect;2;26-8AWG;Gray;13mmW |
| Category |
Business
| Standard Package | 1 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - UL | 45A | Voltage - UL | 600V |
| Current - IEC | 50A | Voltage - IEC | 800V |
| Voltage Rating | 800 V | Current Rating (Max) | 50 A |
| Voltage - Input (Min) | 800V | ||
Mechanical
| Color | Gray | Depth | 13 |
| Width | 13 mm | Height | 39.7 mm |
| Length | 3.146" (79.90mm) | Wire Gauge | 26 |
| Termination | Screw | Housing Color | Gray |
| Mounting Type | Direct Mount | Mounting Style | DIN Rail |
| Number of Rows | 2 | Housing Material | Polyamide |
| Length - Overall | 79.9 | Terminal - Width | 13.0mm |
| Termination Style | Bolt and Nut | Number of Contacts | 2 |
| Number of Positions | 2 | Material - Insulation | Polyamide (PA), Nylon |
| Wire Gauge or Range - AWG | 8-26 AWG | Wire Gauge or Range - mm2 | 0.1-10mm² |
Product Info
| Type | Feed-Thru | Gender | F |
| Series | RSC | Features | Disconnect Point |
| Number of Levels | 1 | ||
Documents & Media
Similar Parts
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
0806602
Phoenix Contact
Mounting Hardware NS 35/15 - 2 METERS PRICED PER METER DIN RAIL 35MMX15MM SLOTTED 2M Din Rail 35mm DINrail35mmNS35/15PERFORATEDWH
1201798
Phoenix Contact
取り付け用金具類 PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Un-Perforated, 2.3mm Thick, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din-Rail,NS35/15-2,3UNPERF2000MM,1=2meters CustomcutDIN-Rail
1201442
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories End Clamp Polyamide Gray DINRAIL END BRACKET UNIVERSAL Phoenix Contact 1201442 End Clamp DIN Rail, Series: E/UK EndClamp;TermBlk;Gray;50.8mmLx9.5mmWx35.3mmH Holder; grey; Width:9.5mm; TS32,TS35; Ht:35.3mm; L:50.5mm Phoenix Contact E/UK 系列 端夹
0829131
Phoenix Contact
Terminal Block Tools & Accessories ZB 13:UNBEDRUCKT MARKER STRIP WHITE Connector Accessories Zack Marker Strip For Terminal Block Polyamide White Terminal Marker
2770215
Phoenix Contact
Terminal Block Tools & Accessories TS-KK 3 Separating Plate, Color Gray SEPARATING PLATE GRAY SEPARATOR, TS-KK3 SeparatingPlate;TermBlk;Gray
3022218
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories Snap-on End Bracket Polyamide Gray END BRACKET FOR 35 MM DIN RAIL Phoenix Contact 3022218 End Bracket Terminal Block, Series: CLIPFIX End bracket CLIPFIX 35 EndBracket;TermBlk;SnapOn;57mmL;9.5mmW
1201413
Phoenix Contact
Terminal Block Tools & Accessories E/UK 1 Connector Accessories End Brackets For Supporting The Ends Of Double Level and Three Level Terminal Blocks Polyamide Gray DINRAIL END BRACKET UNIVERSAL Assembly adapters E/UK 1 Connector Accessories End Brackets For Supporting The Ends Of Double Level and Three Level Terminal Blocks Pol EndBracket;TermBlk;DINRail;10mm;Gray DIN Rail Terminal Blocks End Clamp E/UK1
3022276
Phoenix Contact
Terminal Block Tools & Accessories CLIPFIX 35-5 Connector Accessories End Clamp Polyamide Gray END BRACKET TERM BLOCK SNAP ON Phoenix Contact 3022276 End Bracket Terminal Block, Series: CLIPFIX END CLAMP, DIN RAIL MOUNT EndBracket;TermBlk;SnapOn;35mmH;48.5mmL;5.5mmW Holder Phoenix Contact CLIPFIX 系列 端子架

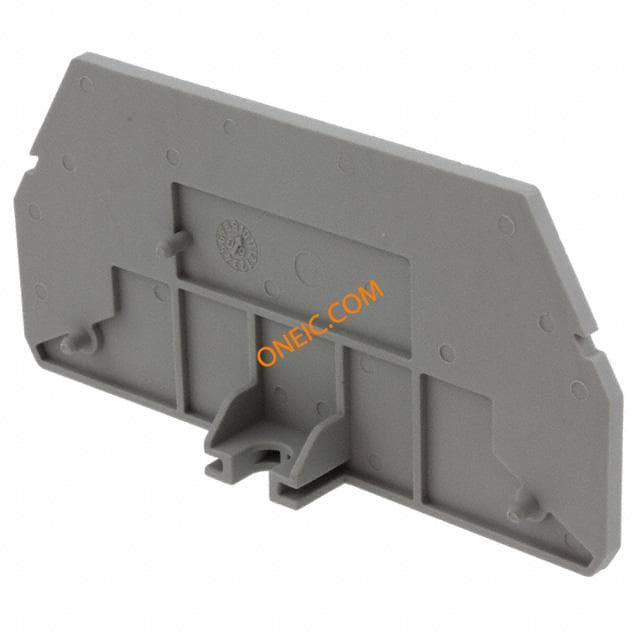

3059346
