3057432
| Manufacturer | |
| Description | DIN Rail Terminal Blocks UTME 4-CT/1P Conn Feed-Thru F 2 POS 28A TERM BLOCK UTME 4-CT/1P Conn;TermBlk;DINRail;SingleLVL;TestDisconnect;Screw/Plug-inConn;26-10AWG;Gray |
| Category |
Business
| Tradename | CLIPLINE UT | Other Names | UTME 4-CT/1P |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - UL | 25A | Voltage - UL | 300V |
| Current - IEC | 28A | Voltage - IEC | 500V |
| Current Rating (Max) | 28 | Voltage - Input (Min) | 500V |
Mechanical
| Depth | 6.2 | Height | 57 |
| Length | 3.406" (86.51mm) | Wire Gauge | 10-26 |
| Height (Max) | 2.244" (57.00mm) | Housing Color | Gray |
| Mounting Type | DIN Rail | Number of Rows | 2 |
| Housing Material | Polyamide | Length - Overall | 86.5 |
| Stripping Length | 9mm | Terminal - Width | 6.2mm |
| Termination Style | Plug Receptacles, Screw | Number of Contacts | 2 |
| Number of Positions | 2 | Material - Insulation | Polyamide (PA), Nylon |
| Wire Gauge or Range - AWG | 10-26 AWG | Wire Gauge or Range - mm2 | 0.14-6mm² |
Product Info
| Type | Feed-Thru | Gender | F |
| Series | UT | Features | Disconnect Switch |
| Number of Levels | 1 | ||
Documents & Media
Similar Parts
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
0828746
Phoenix Contact
Wire Identification UCT-TMF 6 TERM BLOCK MARKER 6.2MM WHITE Labels Marker Label Polycarbonate White 5.6x5mm Markerforterminalblocks-UCT-TMF6
0818140
Phoenix Contact
Unspecified Tools & Accessories UC-TMF 6 UNICARD 80 SECTION Connector Accessories Terminal Block Marker Polyamide White UNICARD SHEETS 1 ROLL=80 LABELS Terminal Block Tools & Accessories UC-TMF 6 UNICARD 80 SECTION UNICARDSHEETS80-SECTION
0201744
Phoenix Contact
Terminal Block Tools & Accessories MPS-MT Test Plug, Consisting Of Metal Part For 2.3mm Diameter Socket Hole TERM BLK TEST PLUG W/O SLEEVE Testplugs Test Plug
0808710
Phoenix Contact
Terminal Block Tools & Accessories ZBF 6: UNBEDRUCKT MARKER STRIP 10 SECT Zack Strip, Flat, Unprinted 10-Section, For Individual Labeling With M-Pen Or Zbf-T, Sufficient For 100 Terminal Blocks, Color White 10 SECTION ZACK MARKER STRIP Phoenix Contact 0808710 Marker Strip Terminal Block, Series: ZBF ZACKSTRIP,FLAT,UNPRINTED Phoenix Contact ZBF 系列 标记条
3030349
Phoenix Contact
Terminal Block Tools & Accessories FBS 5-6 5 POS BRIDGE Connector Accessories Plug-in Bridge For Cross-Connections In The Terminal Center BRIDGE TERM BLOCK 5POS Phoenix Contact 3030349 Plug In Bridge Terminal Block, Series: FBS Cross connector/jumper for modular terminal block FBS 5-6 Bridge;Plug-InBridge;5;Red;Crossconnectionsintheterminalcenter. Phoenix Contact FBS 系列 5 极跳片
3030336
Phoenix Contact
Terminal Block Tools & Accessories FBS 2-6 2P PLUG-IN BRIDGE Conn Jumper PL 2 POS ST BRIDGE TERM BLOCK 2POS Phoenix Contact 3030336 Plug In Bridge Terminal Block, Series: FBS Bridge;Plug-InBridge;2;Red;Crossconnectionsintheterminalcenter. FBS 2-6
1206421
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Galvanized, Perforated, HeIGHt 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM SLOTTED 2M DINrail,Galvanized,perforated,height7.5mm,width35mm,eachpiece2MTRS
0801681
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din Rail, Material Steel, Unperforated, HeIGHt 7.5mm, Width 35mm, Length 2M DIN RAIL 35MMX7.5MM UNSLOT 2M DIN rail,unperforated,steel,35x7.5x2000 DINRail;Steel;Chromated;7.50mm;35mm;2meterlength
1206434
Phoenix Contact
Mounting Hardware NS 35/ 7,5 ZN UNPERF 2000MM DIN Rail, Material Galvanized, Un-Perforated, Height 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM UNSLOT 2M NS35/75ZNUNPERF2000MM
0828736
Phoenix Contact
Terminal Block Tools & Accessories UCT-TM 6 TERM BLOCK MARKER 6.2MM WHITE Connector Accessories Terminal Block Marker Polycarbonate White UCT-TM6
0828295
Phoenix Contact
Terminal Block Tools & Accessories TMT (EX9,5)R TERM BLOCK MARKER Marker For Terminal Blocks, Roll, White, Unlabeled Phoenix Contact TMT 系列 端子标记
1201756
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN rail, Deep Drawn, High Profile DIN RAIL 35X15MM UNSLOT ALUM 2M NS35/15-ALUNPERF2000MM(Suppliedin2meterlengthspriceper2meters)
3057445
Phoenix Contact
Terminal Block Tools & Accessories D-UTME 4-CT/1P Cover Width 2.2 Mm END COVER D-UTME 4-CT/1P D-UTME4-CT/1P Phoenix Contact
3057461
Phoenix Contact
DIN Rail Terminal Blocks UPCT 4/2 Conn Terminal Block 2 POS CONN TERM BLOCK UPCT 4/2 UPCT4/2 Phoenix Contact
3035974
PHOENIX CONTACT
Conn Test Adapter PL 1 POS Solder Lug ST Thru-Hole 1 Port ADAPTER TEST 4MM ORANGE Terminal Block Tools & Accessories PAI-4-FIX-5/6 OG PAI-4-FIX-5/6OG
3035978
PHOENIX CONTACT
TEST ADAPTER FOR 4 MM SAFETY TEST PLUGS LATCHES INTO THE BRIDGE ADAPTER TEST 4MM GREEN PAI-4-FIX-5/6 GN Test Clips PAI-4-FIX-5/6 GN PAI-4-FIX-5/6GN Phoenix Contact
3034374
PHOENIX CONTACT
Connector Accessories Cover Profile Carrier COVER PROFILE CARRIER MOUNT APH-ME
3035981
PHOENIX CONTACT
TEST ADAPTER FOR 4 MM SAFETY TEST PLUGS LATCHES INTO THE BRIDGE ADAPTER TEST 4MM BROWN PAI-4-FIX-5/6BN Phoenix Contact

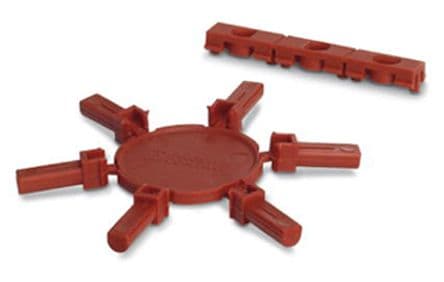

3032855
