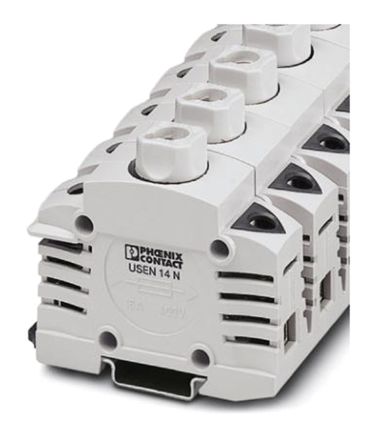

3048357
| Manufacturer | |
| Description | DIN Rail Terminal Blocks USEN 14 N Conn DIN Rail Fused TERM BLOCK Fuse modular terminal block USEN 14 N Fuse terminal blocks for NEOZED fuse inserts USEN14N Fused DIN Rail Terminal |
| Category |
Business
| Other Names | USEN 14 N | Product Category | DIN Rail Terminal Blocks |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - IEC | 16A | Voltage - IEC | 400V |
Mechanical
| Color | Gray | Weight | 3.697064 oz |
| Stripping Length | 19mm | Terminal - Width | 27.0mm |
| Termination Style | Screw | Number of Positions | 2 |
| Material - Insulation | Thermoplastic, Duroplast | Wire Gauge or Range - AWG | 2-16 AWG |
| Wire Gauge or Range - mm2 | 1.5-35mm² | ||
Product Info
| Type | DIN Rail Fused | Fuse Type | NEOZED® D01/E14 |
| Disconnect Type | Fuse, Screw Cap | Number of Levels | 1 |
