点击放大查看
3044636
| Manufacturer | |
| Description | DIN Rail Terminal Blocks UTTB 2,5 2.5MM DBL LEVEL Conn Terminal Block F 4 POS Screw ST 20A CONN TERM BLOCK 26-12AWG MOD T/H Non-Fuse DIN Rail Terminal, 24A, 500V, Grey ,Screw Down Termination TERMINAL BLOCK, 26-12AWG, 2 LEVEL Conn;TermBlk;DINRail;DblLevel;Screw;26-12AWG;Gray;5.2mmW Phoenix Contact UTTB 系列 灰色 双层接线端子块 , 24A, 500 V |
| Category |
Business
| Tradename | CLIPLINE UT | Product Category | DIN Rail Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | cULus,CSA | Material Flammability Rating | UL94 V-0 |
Electrical
| Current - UL | 20A | Voltage - UL | 600V |
| Current - IEC | 24A | Voltage - IEC | 500V |
| Voltage Rating | 500 V | Number of Poles | 2Poles |
| Current Rating (Max) | 24A | Voltage - Input (Min) | 600V |
Mechanical
| Color | Gray | Depth | 5.2 |
| Pitch | :5.2mm | Width | 5.2 mm |
| Height | 72.5 | Length | 69.9 mm |
| Weight | 1.764 lbs | Wire Gauge | 26 → 12 AWG |
| Termination | Screw | Mounting Type | Straight |
| Connector Type | :DIN Terminal Block | Contact Finish | :- |
| Mounting Style | DIN Rail | Number of Rows | 4 |
| Contact Material | :- | Housing Material | Polyamide |
| Length - Overall | 69.9 | Primary Material | DINRail |
| Stripping Length | 9mm | Terminal - Width | 5.2mm |
| Pin Hole Diameter | 5.2mm | Termination Style | Screw |
| Color - Connectors | Grey | Number of Contacts | 4 |
| Number of Positions | 4 | Material - Insulation | Polyamide (PA), Nylon |
| Wire Gauge or Range - AWG | 12-26 AWG | Wire Gauge or Range - mm2 | 0.14-4mm² |
| 1st Connector Mounting Type | :DIN Rail | ||
Product Info
| Type | Terminal Block | Level | DoubleLevel |
| Gender | F | Series | UTTB |
| Number of Levels | 2 | Base Product Number | UTTB2.5 |
Documents & Media
Similar Parts
3047303
Phoenix Contact
Terminal Block Tools & Accessories DP-UTTB 2,5/4 2.5MM SPACER Connector Accessories Spacer Gray CONN TERM BLK SPACER PLATE GRAY Phoenix Contact 3047303 Spacer Plate Terminal Block, Series: DP-UTTB Spacer plate DP-UTTB 2,5/4 PartitionPlate;TermBlk;Gray;69.9mmL;2.6mmW;33mmH
1205053
Phoenix Contact
Screwdrivers, Nut Drivers & Socket Drivers MED. SCREWDRIVER ScrewDriver, Bladed, Matches All Screw Terminal Blocks Up To 4.0mm Connection Cross Section, Blade 0.6 X 3.5mm, Without VDE Approval SCREWDRIVER SLOT 0.6X3.5MM 7.13" Tool, Driver ScrewDriver;180mm;0.6mm;3.5mm;100mm;35g
1050004
Phoenix Contact
ターミナルブロック・ツールとアクセサリ 5.2mm BLANK STRIPS CONNECTOR ACCESSORIES CONN ACC MARKER STRIP UNPRINTED Phoenix Contact 1050004 Marker Strip Terminal Block, Series: ZB Terminal Block Tools & Accessories 5.2mm BLANK STRIPS Zack Strip, Unprinted, 10Section, For Individual Labeling With Mpen, Zbt Or Cms System, Pack Is Sufficient For 100 Terminal Blocks, ... Zack Strip, Unprinted, 10Section, For Individual Labeling With Mpen, Zbt Or Cms System, Pack Is Sufficient For 100 Terminal Blocks, For A Terminal Width Of 5.02mm, Color White ZACK STRIP, UNPRINTED ZBMarkingStrip;TermBlk;5.2mm;Blank;White Marker; Width:5mm; for labelling by user Phoenix Contact ZB 系列 标记条
3030226
Phoenix Contact
Terminal Block Tools & Accessories FBS 20-5 20 P0S BRIDGE Conn Jumper PL 20 POS ST CROSS CONN BRIDGE TRM BLK 20POS Phoenix Contact 3030226 Plug In Bridge Terminal Block, Series: FBS Cross connector/jumper for modular terminal block FBS 20-5 Bridge;Plug-InBridge;20;Red;Crossconnectionsintheterminalcenter. Phoenix Contact FBS 系列 20 极跳片
3030925
Phoenix Contact
Terminal Block Tools & Accessories PAI-4 TEST ADAPTER Conn Test Adapter PL/PL 1/1 POS ST 1 Port TEST ADAPTER TERM BLOCK GRAY Test apaptor for 4mm test plug TEST ADAPTOR TESTADAPTER,COLOR:GRAY Phoenix Contact 灰色 测试连接器适配器, 公
3030174
Phoenix Contact
Terminal Block Tools & Accessories FBS 3-5 Conn Jumper PL 3 POS ST CROSS CONN BRIDGE TERM BLK 3POS Phoenix Contact 3030174 Jumper Bridge;Plug-InBridge;3;Red;Crossconnectionsintheterminalcenter. Comb bridge; ways:3; Width:5mm Phoenix Contact 3 极跳片
3030213
Phoenix Contact
Terminal Block Tools & Accessories FBS 10-5 Conn Jumper PL 10 POS ST CROSS CONN BRIDGE TRM BLK 10POS Phoenix Contact 3030213 Plug In Bridge Terminal Block, Series: FBS Bridge;Plug-InBridge;10;Red;Crossconnectionsintheterminalcenter. Comb bridge; ways:10; Width:5mm Phoenix Contact FBS 系列 10 极跳片
3030161
Phoenix Contact
Terminal Block Tools & Accessories FBS 2-5 Conn Jumper PL 2 POS ST CROSS CONN BRIDGE TERM BLK 2POS Phoenix Contact 3030161 Jumper FBS 2-5 BRIDGE, PLUG IN Bridge;Plug-InBridge;2;Red;Crossconnectionsintheterminalcenter. Comb bridge; ways:2; Width:5mm Phoenix Contact 2 极跳片

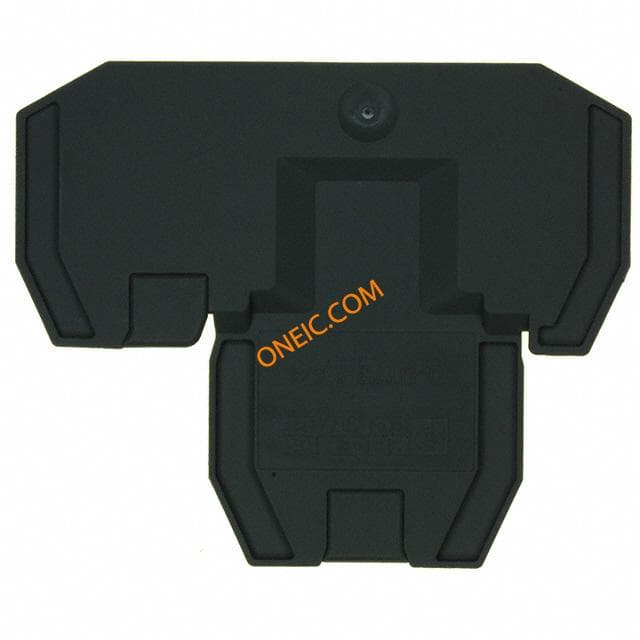

3047293
