3044076
| Manufacturer | |
| Description | DIN Rail Terminal Blocks UT 2.5 DIN/RAIL/TERM Conn Universal Terminal Blocks F 2 POS Screw ST 32A CONN TERM BLK UNIV 26-12AWG GRAY Non-Fuse DIN Rail Terminal, 24A, 1000V, Grey ,Screw Down Termination TERMINAL BLOCK, DIN RAIL, 2WAY, 26-12AWG Conn;TermBlk;DINRail;FeedThru;Screw;2;26-12AWG;Gray;20ANom;600VNom Splice terminal: rail; ways:1; terminals:2; grey; 0.14÷2.5mm2 Phoenix Contact UT 系列 灰色 馈通端子块 , 24A, 1000 V |
| Category |
Business
| Tradename | CLIPLINE UT | Product Category | DIN Rail Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | ATEX Ex |
| Tariff No | 85369010 | Approval Agency | cULus,CSA,VDE |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - UL | 20A | Voltage - UL | 600V |
| Current - IEC | 24A | Voltage - IEC | 1000V |
| Voltage - Test | 8kV | Voltage Rating | 1000 V |
| Number of Poles | 2Poles | Connector Impedance | rail |
| Current Rating (Max) | 24A | Voltage - Input (Min) | 1000V |
Mechanical
| Color | Gray | Depth | 5.2 |
| Pitch | :5.2mm | Width | 5.2 mm |
| Height | 55 mm | Length | 47.7 mm |
| Weight | 0.257500 oz | Wire Gauge | 26 → 12 AWG |
| Termination | Screw | Body Material | polyamide |
| Mounting Type | Straight | Connector Type | :Terminal Block, DIN Rail |
| Contact Finish | :- | Mounting Style | DIN Rail |
| Number of Rows | 2 | Contact Material | :- |
| Housing Material | Polyamide | Length - Overall | 46.9 |
| Package Quantity | 50 | Primary Material | DINRail |
| Stripping Length | 9mm | Terminal - Width | 5.2mm |
| Termination Style | Screw | Wire Strip Length | 9mm |
| Color - Connectors | Grey | Number of Contacts | 2 |
| Number of Positions | 2 | Material - Insulation | Polyamide (PA), Nylon |
| Wire Gauge or Range - AWG | 12-26 AWG | Wire Gauge or Range - mm2 | 0.14-4mm² |
| 1st Connector Mounting Type | :DIN Rail | ||
Product Info
| Spg | 50 | Type | Universal Terminal Blocks |
| Gender | F | Series | UT |
| Features | Universal | Number of Units | 1 |
| Number of Levels | 1 | Base Product Number | UT2.5 |
Environmental
| Operating Temperature | +110°C | ||
Documents & Media
Similar Parts
1050017:0031
Phoenix Contact
Terminal Block Tools & Accessories 5.2mm HZ STRIP 31-40 Connector Accessories Zack Marker Strip Labeled Horizontally Polyamide White CONN ACC MARKER STRIP PREPRINT Phoenix Contact 1050017:0031 Marker Strip Terminal Block, Series: ZB Terminal marking ZBMarkingStrip(1stripof10labels)marked31to40horizontally5.2mm Marker; Width:5mm; 31-40 marks Phoenix Contact ZB5 31 to 40 系列 标记条
3047028
Phoenix Contact
Terminal Block Tools & Accessories D-UT 2.5/10 COVER Connector Accessories End Cover Gray CONN TERM BLK END COVER GRAY Phoenix Contact 3047028 Cover Terminal Block, Series: D-UT TERMINAL BLOCK, END PLATE, 2.5-10MM Cover;TermBlkAcc;Gray;2.2mm End piece; Application: UT; polyamide; ATEX Ex Phoenix Contact D-UT 系列 端板
1207640
Phoenix Contact
取り付け用金具類 NS 35/ 7.5 PERF 755MM Connector Accessories Ns 35 DIN Rail Straight Steel Silver DIN RAIL 35X7.5MM SLOTTED 29.7" DIN rail,perforated,steel,35x7.5x755mm Mounting Hardware NS 35/ 7.5 PERF 755MM DinRail,NS35,Height:7.5mm,length:755mm DIN 导轨 顶帽式, NS35 穿孔型, 755mm x 35mm x 7.5mm
3030226
Phoenix Contact
Terminal Block Tools & Accessories FBS 20-5 20 P0S BRIDGE Conn Jumper PL 20 POS ST CROSS CONN BRIDGE TRM BLK 20POS Phoenix Contact 3030226 Plug In Bridge Terminal Block, Series: FBS Cross connector/jumper for modular terminal block FBS 20-5 Bridge;Plug-InBridge;20;Red;Crossconnectionsintheterminalcenter. Phoenix Contact FBS 系列 20 极跳片
3030925
Phoenix Contact
Terminal Block Tools & Accessories PAI-4 TEST ADAPTER Conn Test Adapter PL/PL 1/1 POS ST 1 Port TEST ADAPTER TERM BLOCK GRAY Test apaptor for 4mm test plug TEST ADAPTOR TESTADAPTER,COLOR:GRAY Phoenix Contact 灰色 测试连接器适配器, 公

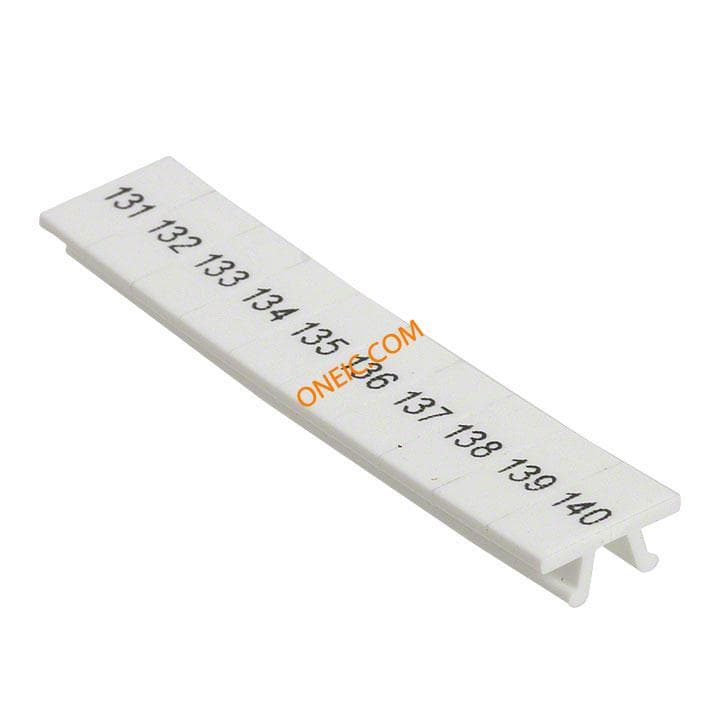

1050017:0131
Phoenix Contact
Terminal Block Tools & Accessories 5.2MM ID STRIP 131-140 Connector Accessories Zack Marker Strip Labeled Horizontally Polyamide White TAG MARKING TERM BLOCK 131-140 Terminal marking ZBMarkingStrip;TermBlk;Horiz;5.2mm;Nos131-140;1strip10labels
3047167
Phoenix Contact
Terminal Block Tools & Accessories ATP-UT PARTITION Connector Accessories Partition Plate Gray CONN TERM BLK PARTITIN PLATE GRY Phoenix Contact 3047167 Partition Plate Terminal Block, Series: ATP-UT PARTITION PLATE PartitionPlate;TermBlk;Gray;50mmL;2mmW;48mmH Separating plate; Application: UT; polyamide; ATEX Ex Phoenix Contact ATP-UT 系列 隔板
3030174
Phoenix Contact
Terminal Block Tools & Accessories FBS 3-5 Conn Jumper PL 3 POS ST CROSS CONN BRIDGE TERM BLK 3POS Phoenix Contact 3030174 Jumper Bridge;Plug-InBridge;3;Red;Crossconnectionsintheterminalcenter. Comb bridge; ways:3; Width:5mm Phoenix Contact 3 极跳片
1050017:0091
Phoenix Contact
Terminal Block Tools & Accessories 5.2MM ID STRP 91-100 Connector Accessories Zack Marker Strip Labeled Horizontally Polyamide White CONN ACC MARKER STRIP PREPRINT Terminal marking ZBMarkingStrip;TermBlk;Horiz;5.2mm;Nos91-100;1strip10labels
0201744
Phoenix Contact
Terminal Block Tools & Accessories MPS-MT Test Plug, Consisting Of Metal Part For 2.3mm Diameter Socket Hole TERM BLK TEST PLUG W/O SLEEVE Testplugs Test Plug
1050017:0061
Phoenix Contact
Terminal Block Tools & Accessories 5.2mm HZ STRIP 61-70 Connector Accessories Zack Marker Strip Labeled Horizontally Polyamide White CONN ACC MARKER STRIP PREPRINT Terminal marking ZBMarkingStrip;TermBlk;Horiz;5.2mm;Nos61-70;1strip10labels Marker; Width:5mm; 61-70 marks White Zack Marker Strip Numbers 61-70
3030161
Phoenix Contact
Terminal Block Tools & Accessories FBS 2-5 Conn Jumper PL 2 POS ST CROSS CONN BRIDGE TERM BLK 2POS Phoenix Contact 3030161 Jumper FBS 2-5 BRIDGE, PLUG IN Bridge;Plug-InBridge;2;Red;Crossconnectionsintheterminalcenter. Comb bridge; ways:2; Width:5mm Phoenix Contact 2 极跳片
3030190
Phoenix Contact
Terminal Block Tools & Accessories FBS 5-5 5 POS BRIDGE Conn Jumper PL 5 POS ST CROSS CONN BRIDGE TERM BLK 5POS Phoenix Contact 3030190 Jumper BRIDGE, PLUG IN Bridge;Plug-InBridge;5;Red;Crossconnectionsintheterminalcenter. Phoenix Contact 5 极跳片
1050017:0041
Phoenix Contact
Terminal Block Tools & Accessories 5.2mm HZ STRIP 41-50 Connector Accessories Zack Marker Strip Labeled Horizontally Polyamide White CONN ACC MARKER STRIP PREPRINT Phoenix Contact 1050017:0041 Marker Strip Terminal Block, Series: ZB Terminal marking ZBMarkingStrip(1stripof10labels)marked41to50horizontally5.2mm Marker; Width:5mm; 41-50 marks Phoenix Contact ZB5 41 to 50 系列 标记条

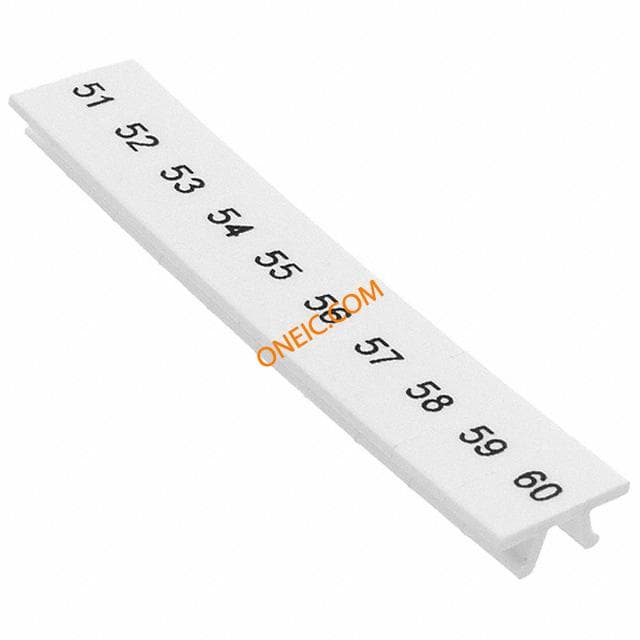

1050017:0051
