Business
| Product | Pluggable Terminal Blocks | Tradename | CLIPLINE ST |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | cULus,VDE | Material Flammability Rating | UL94 V-0 |
Electrical
| Current - UL | 20A | Voltage - UL | 600V |
| Current - IEC | 24A | Voltage - IEC | 500V |
| Voltage Rating | 500 V | Number of Poles | 3Poles |
| Current Rating (Max) | 24A | Voltage - Input (Min) | 500V |
Mechanical
| Color | Gray | Depth | 5.2 |
| Width | 5.2 mm | Height | 44 mm |
| Length | 2.378" (60.40mm) | Weight | 0.270551 oz |
| Wire Gauge | 28 → 12 AWG | Termination | Plug In, Spring Cage |
| Height (Max) | 1.732" (44.00mm) | Housing Color | Gray |
| Mounting Type | DIN Rail | Number of Rows | 3 |
| Housing Material | Polyamide | Length - Overall | 60.5 |
| Primary Material | DINRail | Stripping Length | 10mm |
| Terminal - Width | 5.2mm | Pin Hole Diameter | 5.2mm |
| Termination Style | Plug Receptacles, Push In, Spring | Color - Connectors | Grey |
| Number of Contacts | 3 | Number of Positions | 3 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm2 | 0.08-4mm² | ||
Product Info
| Type | Spring Cage | Gender | F |
| Series | ST | Number of Levels | 1 |
| Base Product Number | ST2.5TWIN/1P | ||
Documents & Media
PDF Document
Similar Parts
1204119
Phoenix Contact
$194.2760
Details
3040588
Phoenix Contact
$3.8760
Details
3038671
Phoenix Contact
$65.0080
Details
0828744
Phoenix Contact
$7.0532
Details

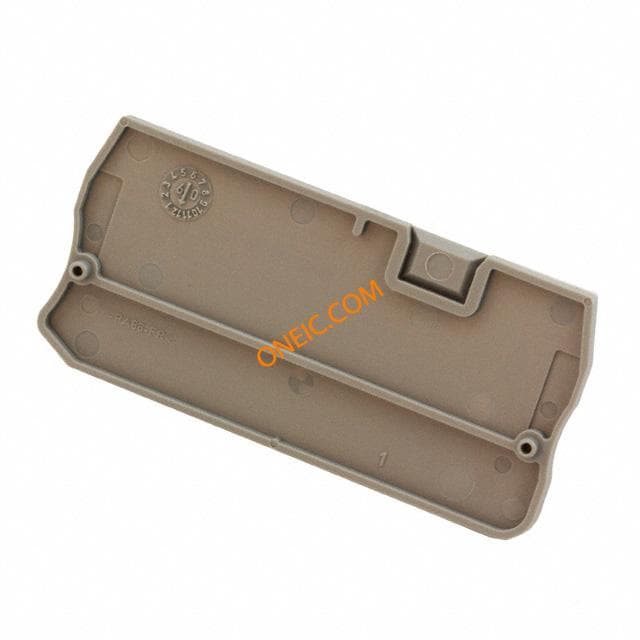

3030488
Phoenix Contact
$6.0520
Details
3030174
Phoenix Contact
$7.9560
Details
0201744
Phoenix Contact
$27.1320
Details
3032127
Phoenix Contact
$105.8080
Details
3030161
Phoenix Contact
$3.8760
Details

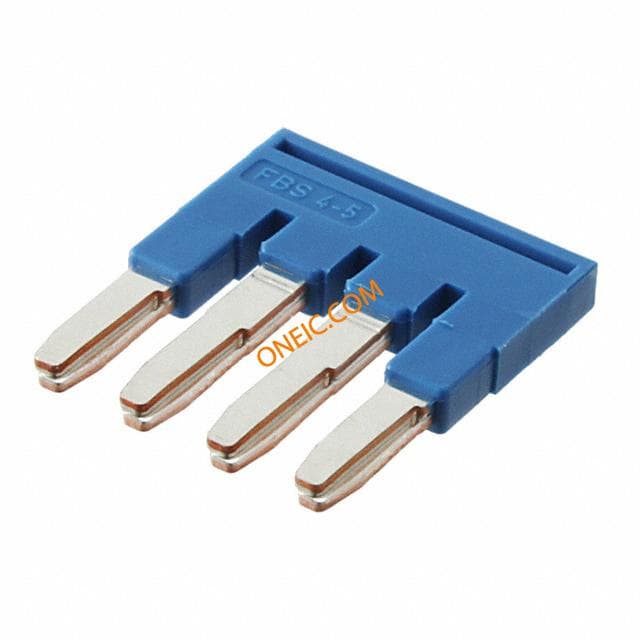

3036893
Phoenix Contact
$11.6144
Details
3030190
Phoenix Contact
$15.4360
Details
3032114
Phoenix Contact
$131.9200
Details

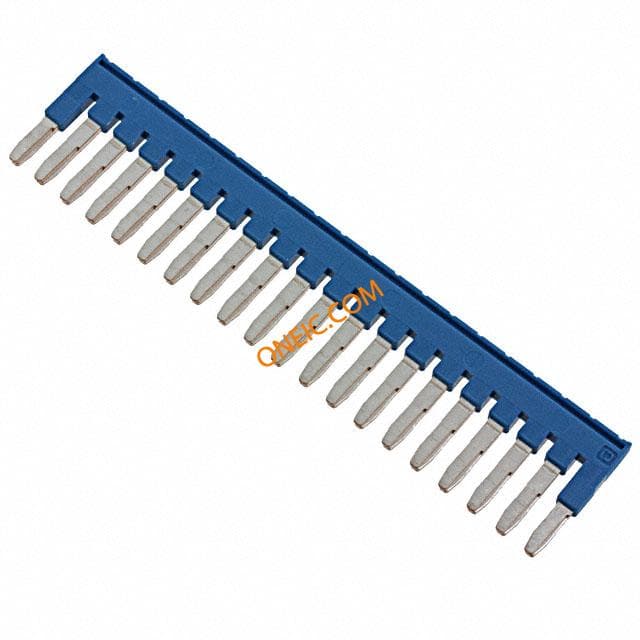

3036929
