Business
| Tradename | CLIPLINE ST | Other Names | STTB 2 5/2P-DIO/O-U |
| Product Category | DIN Rail Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - IEC | 24A | Voltage - IEC | 500V |
Mechanical
| Depth | 5.2 | Length | 2.815" (71.50mm) |
| Weight | 0.373199 oz | Wire Gauge | 12-28 |
| Height (Max) | 2.165" (55.00mm) | Housing Color | Gray |
| Mounting Type | DIN Rail | Number of Rows | 4 |
| Stripping Length | 10mm | Terminal - Width | 5.2mm |
| Termination Style | Plug Receptacles, Push In, Spring | Number of Positions | 3 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm2 | 0.08-4mm² | ||
Product Info
| Type | Spring Cage | Gender | F |
| Series | ST | Features | Diode |
| Number of Levels | 2; Connected | ||
Documents & Media
PDF Document
Similar Parts
1204119
Phoenix Contact
$194.2760
Details
3040588
Phoenix Contact
$3.8760
Details
3039900
Phoenix Contact
$29.0360
Details
0825025
Phoenix Contact
$47.8720
Details

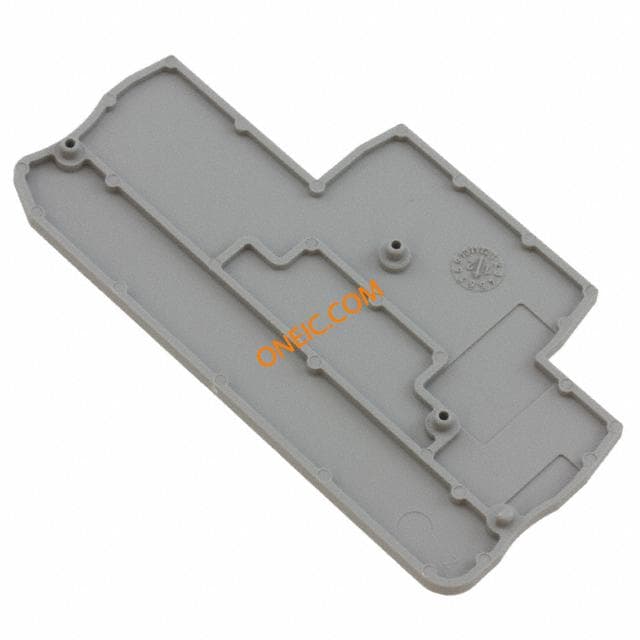

3040096
