3037834
| Manufacturer | |
| Description | DIN Rail Terminal Blocks ST 2.5 QUATTRO-MT BU Conn Disconnect and Test Disconnect Terminal Blocks F 20A CONN TERM BLOCK Disconnect and knife disconnect terminal block ST 2,5-QUATTRO-MT BU ST25-QUATTRO-MTBU |
| Category |
Business
| Product | DIN Rail Terminal Blocks | Tradename | CLIPLINE ST |
| Other Names | ST 2 5-QUATTRO-MT BU | Product Category | DIN Rail Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - UL | 16A | Voltage - UL | 300V |
| Current - IEC | 20A | Voltage - IEC | 400V |
| Current Rating (Max) | 20 | Voltage - Input (Min) | 400V |
Mechanical
| Color | Blue | Depth | 5.2 |
| Weight | 0.382370 oz | Wire Gauge | 12-28 |
| Number of Rows | 4 | Length - Overall | 84 |
| Stripping Length | 10mm | Terminal - Width | 5.2mm |
| Termination Style | Push In, Spring | Number of Positions | 4 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm2 | 0.08-4mm² | ||
Product Info
| Type | Disconnect and Test Disconnect Te... | Gender | F |
| Series | ST | Disconnect Type | Switch, Knife |
| Number of Levels | 1 | ||
Documents & Media
Similar Parts
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
0818108
Phoenix Contact
Unspecified Tools & Accessories UC-TM 5 UNICARD 90 SECTION Connector Accessories Terminal Block Marker Polyamide White UNICARD SHEETS 1 ROLL=96 LABELS Phoenix Contact 0818108 Marker Card Terminal Block, Series: UC-TM Terminal Block Tools & Accessories UC-TM 5 UNICARD 90 SECTION MarkerCard;TermBlk;5.2mm;96labelspercard;white Phoenix Contact UC-TM 系列 标记卡
0825025
Phoenix Contact
Terminal Block Tools & Accessories ZBF 5 CUS ZACK STRIP Terminal Block Tools & Accessories ZBF 5 CUS 1 strip is 1 piece Terminal Marker
0824962
Phoenix Contact
Terminal Block Tools & Accessories ZB 5 CUS ZACK STRIP Terminal Block Tools & Accessories ZB 5 CUS 1 strip is 1 piece

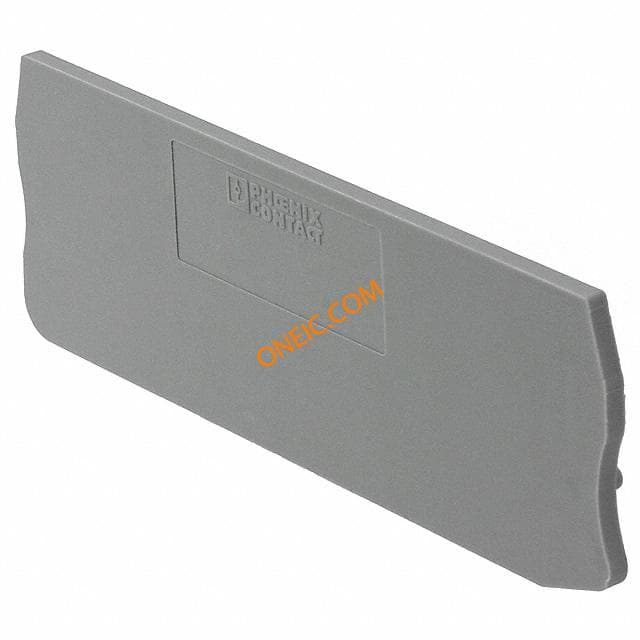

3038590
