3036534
| Manufacturer | |
| Description | DIN Rail Terminal Blocks ST 2.5 QUATTRO-DIO/R Conn Component Terminal Blocks F 4 POS 0.5A CONN TERM BLOCK TB,Spring-cage,Width:5.2mm,grey Component terminal block ST 2,5-QUATTRO-DIO/R-L ST25-QUATTRO-DIO/R-L Phoenix Contact ST 系列 灰色 弹簧笼 , 0.5A, 800 V |
| Category |
Business
| Tradename | CLIPLINE ST | Other Names | ST 2 5-QUATTRO-DIO/R-L |
| Product Category | DIN Rail Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - UL | 20A | Voltage - UL | 600V |
| Current - IEC | 0.5A | Voltage - IEC | 800V |
| Voltage Rating | 800 V | Current Rating (Max) | 0.5A |
| Voltage - Input (Min) | 800V | ||
Mechanical
| Color | Gray | Depth | 5.2 |
| Width | 5.2 mm | Height | 44 mm |
| Length | 72 mm | Weight | 0.333339 oz |
| Wire Gauge | 28 → 12 AWG | Termination | Spring Cage |
| Number of Rows | 4 | Housing Material | Polyamide |
| Length - Overall | 72 | Stripping Length | 10mm |
| Terminal - Width | 5.2mm | Termination Rows | 弹簧笼 |
| Termination Style | Push In, Spring | Color - Connectors | Grey |
| Number of Contacts | 4 | Number of Positions | 4 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 12-28 AWG |
| Wire Gauge or Range - mm2 | 0.08-4mm² | ||
Product Info
| Type | Component Terminal Blocks | Gender | F |
| Series | ST | Features | Diode |
| Number of Layers | 单层 | Number of Levels | 1 |
Documents & Media
Similar Parts
1204119
Phoenix Contact
Mounting Hardware NS 35/7.5 PERF. WH PRICED PER METER Din Rail 35mm DIN RAIL 35MMX7.5MM SLOTTED 2M NS 35/ 7,5 WH PERF 2000MM NS35/7.5PERF.WH
3039900
Phoenix Contact
Terminal Block Tools & Accessories ST-IL Operating Decal For The St Terminal Block DECAL FOR ST TERM BLOCK Mounting material ST-IL Operating decal for the ST terminal block ST-IL
0825025
Phoenix Contact
Terminal Block Tools & Accessories ZBF 5 CUS ZACK STRIP Terminal Block Tools & Accessories ZBF 5 CUS 1 strip is 1 piece Terminal Marker

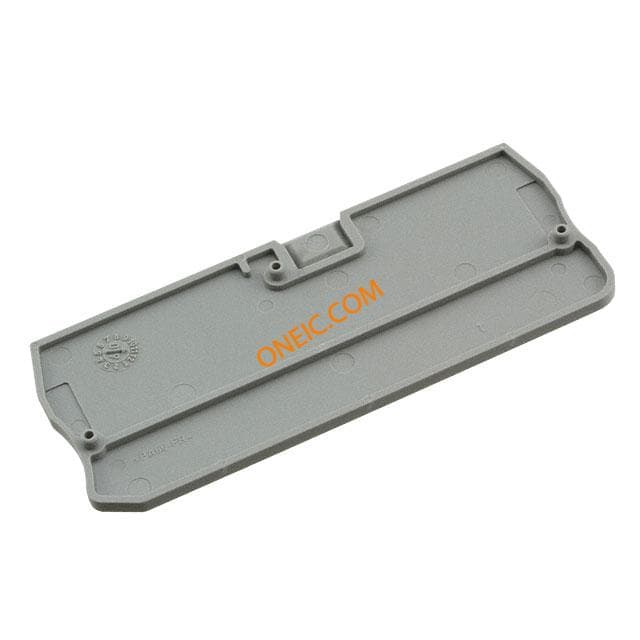

3030514
Phoenix Contact
Terminal Block Tools & Accessories D-ST 2.5 QUATTRO Connector Accessories End Cover Gray CONN COVER END GRAY EndCover;TermBlk;Gray;72mmL;2.2mmW;36.5mmH End plate; grey; Width:2.2mm; Ht:36.5mm; L:72mm
3030174
Phoenix Contact
Terminal Block Tools & Accessories FBS 3-5 Conn Jumper PL 3 POS ST CROSS CONN BRIDGE TERM BLK 3POS Phoenix Contact 3030174 Jumper Bridge;Plug-InBridge;3;Red;Crossconnectionsintheterminalcenter. Comb bridge; ways:3; Width:5mm Phoenix Contact 3 极跳片
3030941
Phoenix Contact
Terminal Block Tools & Accessories WST 2.5 5.2MM WARNING COVER Warning Cover, 5-Pos., For Terminal Width 5.2mm WARNING COVER 5POS FOR TERM BLCK WST25
3030161
Phoenix Contact
Terminal Block Tools & Accessories FBS 2-5 Conn Jumper PL 2 POS ST CROSS CONN BRIDGE TERM BLK 2POS Phoenix Contact 3030161 Jumper FBS 2-5 BRIDGE, PLUG IN Bridge;Plug-InBridge;2;Red;Crossconnectionsintheterminalcenter. Comb bridge; ways:2; Width:5mm Phoenix Contact 2 极跳片
3030190
Phoenix Contact
Terminal Block Tools & Accessories FBS 5-5 5 POS BRIDGE Conn Jumper PL 5 POS ST CROSS CONN BRIDGE TERM BLK 5POS Phoenix Contact 3030190 Jumper BRIDGE, PLUG IN Bridge;Plug-InBridge;5;Red;Crossconnectionsintheterminalcenter. Phoenix Contact 5 极跳片
3038930
Phoenix Contact
Terminal Block Tools & Accessories FBS 50-5 Conn Jumper M 50 POS ST CROSS CONN BRIDGE TRM BLK 50POS Cross connector/jumper for modular terminal block FBS 50-5 Plug-inbridge,Numberofpositions:50,Color:red Plug-in bridge 50 Position Red
3030815
Phoenix Contact
Terminal Block Tools & Accessories ATP-ST4-QUATTRO Connector Accessories Partition Plate Gray PARTITION PLATE TERM BLOCK 2MM Phoenix Contact 3030815 Partition Plate Terminal Block, Series: ATP-ST PartitionPlate;TermBlk;Gray;90.9mmL;2mmW;45mmH Phoenix Contact ATP-ST 系列 隔板
0801704
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN RAIL 35X7.5MM UNSLOT ALUM 2M Din Rail, Material Aluminum, Unperforated, Height 7.5mm, Width 35mm, Length 2 M DINRail,Aluminum,unperforated,height7.5mm,width35mm,2meterslength
1206421
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Galvanized, Perforated, HeIGHt 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM SLOTTED 2M DINrail,Galvanized,perforated,height7.5mm,width35mm,eachpiece2MTRS
0801681
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din Rail, Material Steel, Unperforated, HeIGHt 7.5mm, Width 35mm, Length 2M DIN RAIL 35MMX7.5MM UNSLOT 2M DIN rail,unperforated,steel,35x7.5x2000 DINRail;Steel;Chromated;7.50mm;35mm;2meterlength
3030187
Phoenix Contact
Terminal Block Tools & Accessories FBS 4-5 4 POS BRIDGE Conn Jumper PL 4 POS ST CROSS CONN BRIDGE TERM BLK 4POS Phoenix Contact 3030187 Jumper Cross connector/jumper for modular terminal block FBS 4-5 Bridge;Plug-InBridge;4;Red;Crossconnectionsintheterminalcenter.
3036725
Phoenix Contact
Terminal Block Tools & Accessories DP PS-5 5.2MM SPACER Connector Accessories Spacer Red SPACER PLATE TERMINAL BLOCK DPPS-5
0828734
Phoenix Contact
Terminal Block Tools & Accessories UCT-TM 5 TERM BLOCK MARKER 5.2MM WHITE 0828734 Labels Marker Label Polycarbonate White 4.6x10.5mm UCT-TM5
1206434
Phoenix Contact
Mounting Hardware NS 35/ 7,5 ZN UNPERF 2000MM DIN Rail, Material Galvanized, Un-Perforated, Height 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM UNSLOT 2M NS35/75ZNUNPERF2000MM

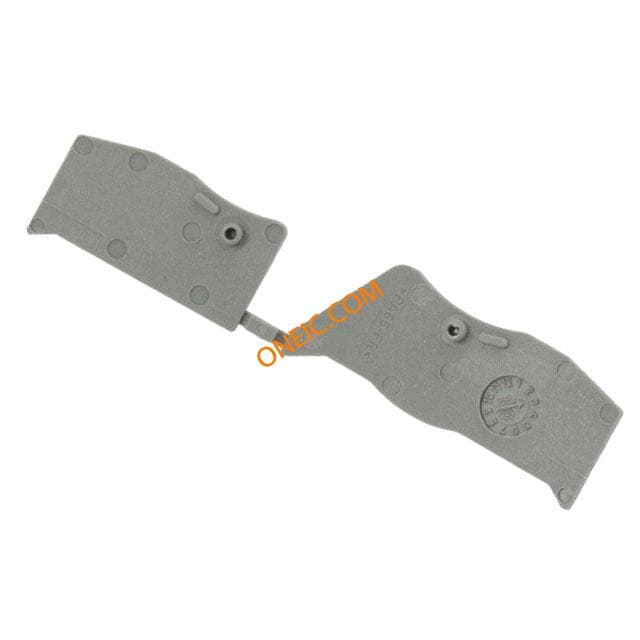

3036602
Phoenix Contact
Terminal Block Tools & Accessories DS-ST 2.5 Connector Accessories Cover Gray COVER SEGMENT TERMINAL BLOCK Phoenix Contact 3036602 Cover Segment Terminal Block, Series: DS-ST COVERSEGMENTGRAY
1204122
Phoenix Contact
DIN RAIL 35MMX7.5MM UNSLOT 2M Terminal Block Tools & Accessories NS 35/ 7,5 WH UNPERF 2000MM NS35/75WHUNPERF2000MM

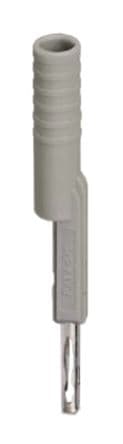

3032871
