点击放大查看
3031076
| Manufacturer | |
| Description | DIN Rail Terminal Blocks ST 1.5 Conn Feed-Thru F 2 POS ST 17.5A CONN TERM BLK W/SPRING CAGE T/H Non-Fuse DIN Rail Terminal, 17.5A, 500V, Grey ,Spring Termination Conn;TermBlk;FeedThru;1;2;26-14AWG;300V;15A;6KV;PA;10mm Phoenix Contact ST 系列 灰色 馈通端子块 , 17.5A, 500 V |
| Category |
Business
| Tradename | CLIPLINE ST | Product Category | DIN Rail Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | cULus,CSA,VDE | Material Flammability Rating | UL94 V-0 |
Electrical
| Current - UL | 15A | Voltage - UL | 300V |
| Current - IEC | 17.5A | Voltage - IEC | 500V |
| Voltage Rating | 500 V | Number of Poles | 2Poles |
| Current Rating (Max) | 17.5A | Voltage - Input (Min) | 500V |
| Voltage - Protection Level (VP) (2416) | 6kV | ||
Mechanical
| Color | Gray | Depth | 4.2 |
| Width | 4.2 mm | Height | 44 mm |
| Length | 48.5 mm | Weight | 0.175312 oz |
| Wire Gauge | 28 → 16 AWG | Termination | Spring |
| Mounting Type | Straight | Cable Material | 0.08 → 1.5mm² |
| Number of Rows | 2 | Housing Material | Polyamide |
| Length - Overall | 48.5 | Primary Material | DINRail |
| Size / Dimension | 48.5mmLx4.2mmWx44mmH | Stripping Length | 10mm |
| Terminal - Width | 4.2mm | Termination Rows | 弹簧 |
| Pin Hole Diameter | 4.2mm | Termination Style | Push In, Spring |
| Color - Connectors | Grey | Number of Contacts | 2 |
| Number of Positions | 2 | Material - Insulation | Polyamide (PA), Nylon |
| Wire Gauge or Range - AWG | 14-26 AWG | Wire Gauge or Range - mm2 | 0.08-1.5mm² |
Product Info
| Type | Feed-Thru | Gender | F |
| Series | ST | Number of Layers | 单层 |
| Number of Levels | 1 | Base Product Number | ST1.5 |
Similar Parts
0801733
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din Rail, Material Steel, Perforated, Height 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM SLOTTED 2M DINRail;Steel;Silver;7.50mm;35mm;2m
1204504
Phoenix Contact
Screwdrivers, Nut Drivers & Socket Drivers SCREWDRIVER Actuation Tool, For ST Terminal Blocks, Also Suitable For Use As A Bladed Screwdriver SCREWDRIVER SLOT 0.4X2.5MM 6.14" ScrewDriver;156mm;0.4mm;2.5mm;75mm;27g Phoenix Contact 2.5 x 0.4 mm 一字刀头 螺丝刀 , 156 mm总长
1201798
Phoenix Contact
取り付け用金具類 PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Un-Perforated, 2.3mm Thick, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din-Rail,NS35/15-2,3UNPERF2000MM,1=2meters CustomcutDIN-Rail
1201442
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories End Clamp Polyamide Gray DINRAIL END BRACKET UNIVERSAL Phoenix Contact 1201442 End Clamp DIN Rail, Series: E/UK EndClamp;TermBlk;Gray;50.8mmLx9.5mmWx35.3mmH Holder; grey; Width:9.5mm; TS32,TS35; Ht:35.3mm; L:50.5mm Phoenix Contact E/UK 系列 端夹
3030925
Phoenix Contact
Terminal Block Tools & Accessories PAI-4 TEST ADAPTER Conn Test Adapter PL/PL 1/1 POS ST 1 Port TEST ADAPTER TERM BLOCK GRAY Test apaptor for 4mm test plug TEST ADAPTOR TESTADAPTER,COLOR:GRAY Phoenix Contact 灰色 测试连接器适配器, 公
3030132
Phoenix Contact
Terminal Block Tools & Accessories FBS 4-4 Conn Jumper M 4 POS ST PLUG-IN BRIDGE TERM CNTR 4PS RED Cross connector/jumper for modular terminal block FBS 4-4 Bridge;Plug-InBridge;4;Red;Crossconnectionsintheterminalcenter. Phoenix Contact FBS 4-4 系列 4 极跳片
3030158
Phoenix Contact
Terminal Block Tools & Accessories FBS 10-4 Conn Jumper PL 10 POS ST PLUGIN BRIDGE TERM CNTR 10PS RED Phoenix Contact 3030158 Plug In Bridge Terminal Block, Series: FBS Bridge;Plug-InBridge;10;Red;Crossconnectionsintheterminalcenter. Phoenix Contact FBS 系列 10 极跳片，3 极跳片
3030145
Phoenix Contact
Terminal Block Tools & Accessories FBS 5-4 Conn Jumper M 5 POS ST PLUG-IN BRIDGE TERM CNTR 5PS RED Cross connector/jumper for modular terminal block FBS 5-4 Bridge;Plug-InBridge;5;Red;Crossconnectionsintheterminalcenter. Plug-In Bridge Red 5 Positions
0201744
Phoenix Contact
Terminal Block Tools & Accessories MPS-MT Test Plug, Consisting Of Metal Part For 2.3mm Diameter Socket Hole TERM BLK TEST PLUG W/O SLEEVE Testplugs Test Plug

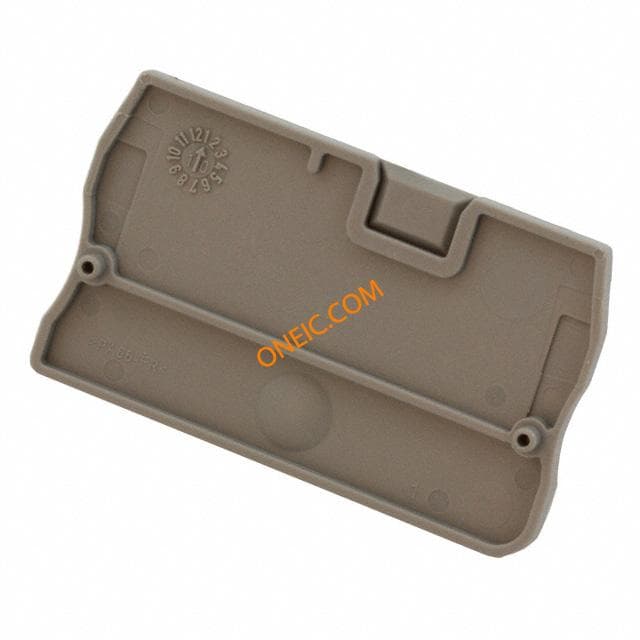

3030417
