3005837
| Manufacturer | |
| Description | DINレール・ターミナルブロック UK 1.5N 4.2mm FEED THRU 300V 15A GRAY Conn Modular Terminal Blocks F 2 POS Screw ST 17.5A CONN TERM BLK FEED THRU 4.2MM TB,Screw connection,Width:4.2 mm,grey Feed-through modular terminal block UK1,5 N DIN Rail Terminal Blocks UK 1.5N 4.2mm FEED THRU 300V 15A GRAY TERMINAL BLOCK, DIN, 1.5MM, GREY Conn;TermBlk;FeedThru;Screw;2;0.14-1.5sq.mm;26-16AWG;4.2mmW;Gray Phoenix Contact UK 系列 灰色 标准 DIN 导轨端子 , 78.5A, 500 V |
| Category |
Business
| Tradename | CLIPLINE UK | Product Category | DIN Rail Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
| Rad Hardened | No | Approval Agency | :EN 50281, EN 60979, IEC 60079 |
| Material Flammability Rating | UL94 V-2 | ||
Electrical
| Current - UL | 15A | Voltage - UL | 300V |
| Current - IEC | 17.5A | Voltage - IEC | 500V |
| Voltage Rating | 500 V | Number of Poles | :1 |
| Conductor Strand | :1.5mm² | Voltage - Working | :500V |
| Current Rating (Max) | 78.5A | Voltage - Input (Min) | 500V |
| Voltage - Supply (Min) | 500V | ||
Mechanical
| Color | Gray | Depth | 4.2 mm |
| Pitch | :4.2mm | Width | 4.2 mm |
| Height | 42 mm | Length | 42.5 mm |
| Weight | 3.527 lbs | Wire Gauge | 26 → 16 AWG |
| Termination | Screw | Mounting Type | Straight |
| Terminal Type | :Screw | Connector Type | :Terminal Block, DIN Rail |
| Contact Finish | :- | Mounting Style | DIN Rail |
| Number of Rows | 2 | Contact Material | :- |
| Housing Material | Polyamide | Length - Overall | 42.5 mm |
| Stripping Length | 7mm | Terminal - Width | 4.2mm |
| Termination Style | Screw | Color - Connectors | Grey |
| Number of Contacts | 2 | Number of Positions | 2 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm2 | 0.14-1.5mm² | 1st Connector Mounting Type | :DIN Rail |
Product Info
| Type | Modular Terminal Blocks | Gender | F |
| Series | UK | Number of Levels | 1 |
| Compatible Sensor Size (Max) | :1.5mm² | ||
Similar Parts
1201015
Phoenix Contact
Mounting Hardware NS 32 UNPERFORATED Gprofile DIN Rail, Material Steel, Unperforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32X15MM UNSLOT STEEL 2M G-profileDINrail,Steel,unperforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 无孔型, 2000mm x 32mm x 15mm

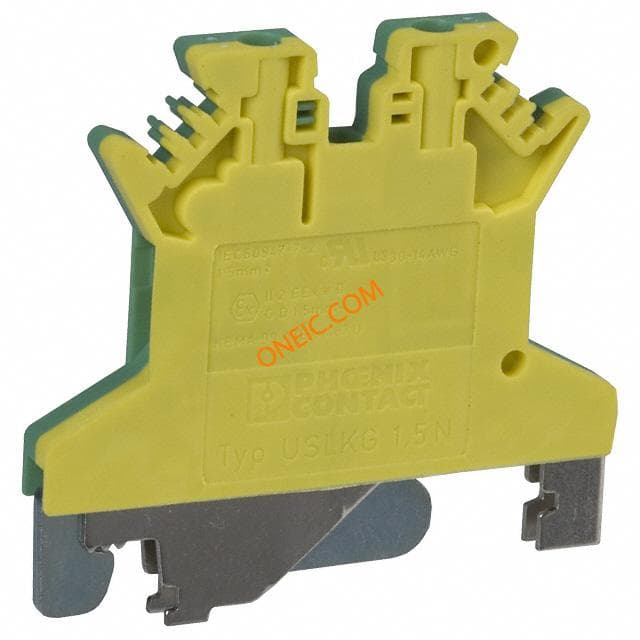

3005853
Phoenix Contact
DINレール・ターミナルブロック 4.2mm UNIV. GRND. Conn Modular Terminal Blocks F 2 POS Screw ST CONN TERM BLK GROUNDING 4.2MM Ground modular terminal block USLKG 1,5 N DIN Rail Terminal Blocks 4.2mm UNIV. GRND. TERMINAL BLOCK, DIN, 1.5MM, GRN/YEL Conn;TermBlk;26-16AWG;ScrewConnection;1;2;6kV;0.22Nm;PA;7mm
1201798
Phoenix Contact
取り付け用金具類 PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Un-Perforated, 2.3mm Thick, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din-Rail,NS35/15-2,3UNPERF2000MM,1=2meters CustomcutDIN-Rail
1201442
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories End Clamp Polyamide Gray DINRAIL END BRACKET UNIVERSAL Phoenix Contact 1201442 End Clamp DIN Rail, Series: E/UK EndClamp;TermBlk;Gray;50.8mmLx9.5mmWx35.3mmH Holder; grey; Width:9.5mm; TS32,TS35; Ht:35.3mm; L:50.5mm Phoenix Contact E/UK 系列 端夹
0805001
Phoenix Contact
Terminal Block Tools & Accessories 4.2mm BLANK STRIPS ZB-4 Connector Accessories Zack Strip Polyamide White CONN ACC MARKER STRIP UNPRINTED ZBMarkingStrip;TermBlk;4mmpitch;Blank Marker; Width:4mm; for labelling by user Zack Marker Strip
0805807:0011
Phoenix Contact
Terminal Block Tools & Accessories 4.2mm HZ STRIP 11-20 Connector Accessories Zack Marker Strip Labeled Vertically Polyamide White CONN ACC MARKER STRIP PREPRINT Terminal marking ZBMarkingStrip;TermBlk;Vert;4mm;Nos11-20;1strip10labels
0800886
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories End Bracket Polyamide Gray CONN TERM BLK END BRACKET 9.5MM EndClamp;TermBlk;Gray;48.6mmL;9.5mmW;32.8mmH Holder; grey; Width:9.5mm; TS35; Ht:32.8mm; L:48.6mm Phoenix Contact E/NS 35 N 系列 端夹
3001624
Phoenix Contact
Terminal Block Tools & Accessories 10POS. FIXED BRIDGE Conn Jumper M 10 POS ST CONN TERM BLK FIXED BRIDGE Phoenix Contact 3001624 Fixed Bridge Terminal Block, Series: FBRN CONNECTION BAR, FBRN-10-4N FixedBridgeBar;TermBlk;Universal;10;Silver Phoenix Contact FBRN 系列 固定桥接

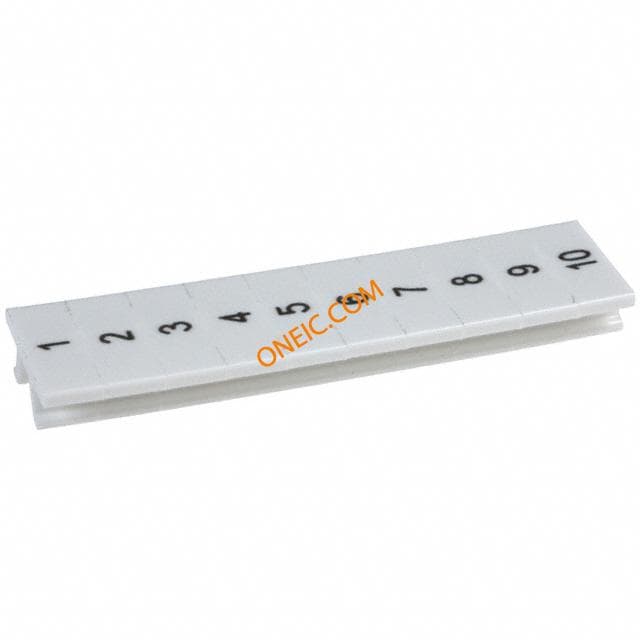

0805807:0001
