3005073
| Manufacturer | |
| Description | DINレール・ターミナルブロック 10.2mm UNIV. BLOCK Conn Universal Terminal Blocks F 2 POS Screw ST 76A CONN TERM BLK FEED THRU 10.2MM Non-Fuse DIN Rail Terminal, 57A, 800V, Grey ,Screw Down Termination DIN Rail Terminal Blocks 10.2mm UNIV. BLOCK TERMINAL BLOCK, DIN, 10MM, GREY Conn;TermBlk;FeedThru;Screw;2;0.5-16sq.mm;20-6AWG;10.2mmW;Gray Phoenix Contact UK 系列 灰色 标准 DIN 导轨端子 , 76A, 800 V |
| Category |
Business
| Tradename | CLIPLINE UK | Product Category | DIN Rail Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
| Rad Hardened | No | Approval Agency | :EN 50281, EN 60979, IEC 60079 |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - UL | 65A | Voltage - UL | 600V |
| Current - IEC | 57A | Voltage - IEC | 800V |
| Voltage Rating | 800 V | Number of Poles | :1 |
| Conductor Strand | :10mm² | Voltage - Working | :800V |
| Current Rating (Max) | 57A | Voltage - Input (Min) | 800V |
| Voltage - Supply (Min) | 800V | ||
Mechanical
| Color | Gray | Depth | 10.2 mm |
| Pitch | :10.2mm | Width | 10.2 mm |
| Height | 52 mm | Length | 42.5 mm |
| Weight | 0.592603 oz | Wire Gauge | 20 → 6 AWG |
| Termination | Screw | Mounting Type | Straight |
| Terminal Type | :Screw | Connector Type | :Terminal Block, DIN Rail |
| Contact Finish | :- | Mounting Style | DIN Rail |
| Number of Rows | 2 | Contact Material | :- |
| Housing Material | Polyamide | Length - Overall | 42.5 mm |
| Stripping Length | 10mm | Terminal - Width | 10.2mm |
| Termination Style | Screw | Color - Connectors | Grey |
| Number of Contacts | 2 | Number of Positions | 2 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 6-24 AWG |
| Wire Gauge or Range - mm2 | 0.5-16mm² | 1st Connector Mounting Type | :DIN Rail |
Product Info
| Type | Universal Terminal Blocks | Gender | F |
| Series | UK | Number of Levels | 1 |
| Compatible Sensor Size (Max) | :10mm² | ||
Documents & Media
Similar Parts
1201015
Phoenix Contact
Mounting Hardware NS 32 UNPERFORATED Gprofile DIN Rail, Material Steel, Unperforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32X15MM UNSLOT STEEL 2M G-profileDINrail,Steel,unperforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 无孔型, 2000mm x 32mm x 15mm
0203328
Phoenix Contact
Terminal Block Tools & Accessories EB 3-10 TERM BLOCK INSERTION BRIDGE 3POS Insertion Bridge, 3-Pos., Fully Insulated InsertionBridge;TermBlk;Universal;3;Gray;Angled
1205066
Phoenix Contact
Screwdrivers, Nut Drivers & Socket Drivers LG. SCREWDRIVER ScrewDriver, Bladed, Matches All Screw Terminal Blocks SCREWDRIVER SLOTTED 1X4MM 7.8" Bladed screwdriver SZS 1,0X4,0 SZS 1,0X4,0 VDE ScrewDriver;200mm;1mm;4mm;100mm;55g Phoenix Contact 1 mm 合金钢 一字刀头 人机工程学 螺丝刀 , 200 mm总长
1201798
Phoenix Contact
取り付け用金具類 PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Un-Perforated, 2.3mm Thick, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din-Rail,NS35/15-2,3UNPERF2000MM,1=2meters CustomcutDIN-Rail
1201442
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories End Clamp Polyamide Gray DINRAIL END BRACKET UNIVERSAL Phoenix Contact 1201442 End Clamp DIN Rail, Series: E/UK EndClamp;TermBlk;Gray;50.8mmLx9.5mmWx35.3mmH Holder; grey; Width:9.5mm; TS32,TS35; Ht:35.3mm; L:50.5mm Phoenix Contact E/UK 系列 端夹
0203137
Phoenix Contact
Terminal Block Tools & Accessories 10 POSITION BRIDGE Conn Jumper M 10 POS CONN TERM BLK INSERTION BRIDGE Phoenix Contact 0203137 Insertion Bridge Terminal Block, Series: EB InsertionBridge;TermBlk;Universal;10;Gray;Angled Phoenix Contact EB 系列 10 极跳片
3003020
Phoenix Contact
Terminal Block Tools & Accessories END COVER GRY Connector Accessories Cover Gray CONN TERM BLK END COVER Phoenix Contact 3003020 Cover Terminal Block, Series: D-UK END COVER, D-UK4/10 EndCover;Universal;TermBlk;Gray;42.5mmL;1.8mmW;35.9mmH End piece; Application: UK4,UK6; grey; polyamide Phoenix Contact D-UK 系列 端板

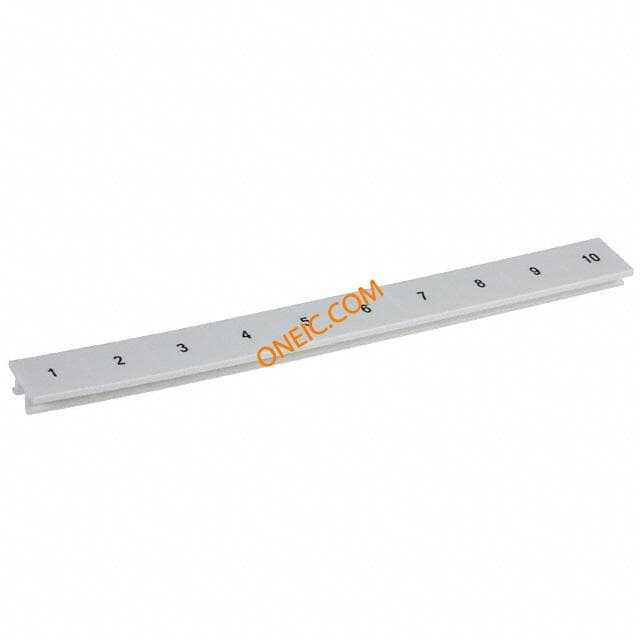

1053014:0001
Phoenix Contact
Terminal Block Tools & Accessories 10.2mm HZ STRIP 1-10 Connector Accessories Zack Marker Strip Labeled Horizontally Polyamide White CONN ACC MARKER STRIP PREPRINT ZBMarkingStrip;TermBlk;Horiz;10.2mm;Nos1-10;White

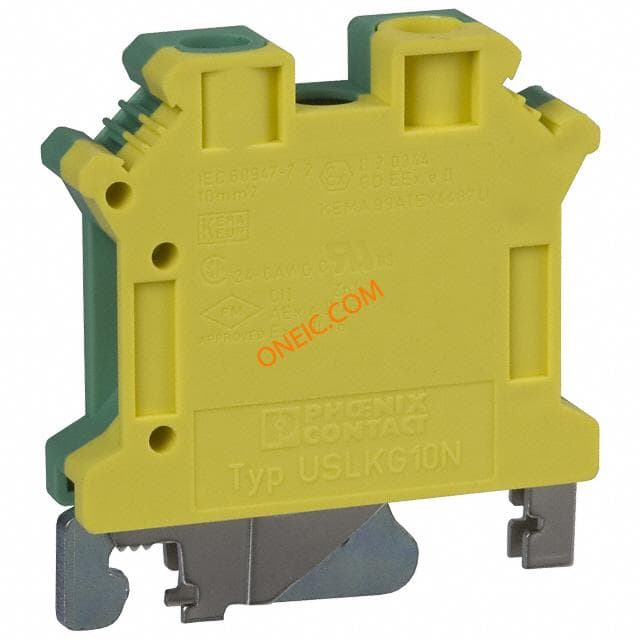

3003923
