3004142
| Manufacturer | |
| Description | DIN Rail Terminal Blocks 8.2mm HINGED 250V Fuse Terminal Block 6.3A 600V TERM BLOCK FUSE W/LEVER/LIGHT Fuse TB,width:8.2 mm,black Fuse modular terminal block UK5-HESILA 250 Fuse Terminal Blocks Conn;TermBlk;Fuse;1;2;26-10;600;6.3A;6kV;M3;0.5Nm;Cartridge;PA Phoenix Contact, UK 系列 黑色 带熔丝的 DIN 导轨端子 单层 2 连接, 5 x 20 mm, 5 x 25 mm, 5 x 30 mm 熔断器 |
| Category |
Business
| Lead Time | 84 Days | Tradename | CLIPLINE UK |
| Subcategory | Fuse Accessories | Product Category | DIN Rail Terminal Blocks |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | UL,CSA | Material Flammability Rating | UL94 V-2 |
Electrical
| Coil Type | G | Current - UL | 12A |
| Voltage - UL | 600V | Current - IEC | 6.3A |
| Voltage - IEC | 500V | Voltage Rating | 500 V |
| Number of Poles | 2Poles | Switch Function | Fuse, Lever |
| Current Rating (Max) | 6.3A | Voltage - Protection Level (VP) (2416) | 6kV |
Mechanical
| Color | Black | Width | 8.2 mm |
| Height | 56.5 mm | Length | 72.5 mm |
| Weight | 0.712887 oz | Wire Gauge | 24 → 12 AWG |
| Termination | Screw | Mounting Style | DIN Rail |
| Primary Material | DINRail | Stripping Length | 8mm |
| Terminal - Width | 8.2mm | Termination Rows | 螺钉 |
| Pin Hole Diameter | 8.2mm | Termination Style | Screw |
| Color - Connectors | Black | Number of Contacts | 2 |
| Cross Hole Diameter | 0.2to4sq.mm | Number of Positions | 2 |
| Material - Insulation | Polyamide (PA), Nylon | Thread/Screw/Hole Size | M3 |
| Wire Gauge or Range - AWG | 10-26 AWG | Wire Gauge or Range - mm2 | 0.2-4mm² |
| Torque - Rated (oz-in / mNm) | 0.5Nm | Contact Finish Thickness - Post | 8.2mm |
Product Info
| Mfr | 0.2-4mm² | Type | Fuse Terminal Block |
| Series | UK | Features | LED |
| Fuse Size | 5 x 20 mm, 5 x 25 mm, 5 x 30 mm | Fuse Type | 5mm x 20mm |
| CAD Drawing | 3D CAD 模型 | Main Purpose | LED |
| Disconnect Type | Fuse, Lever | Industry Aliases | UK 5-HESILA 250 |
| Number of Layers | 单层 | Number of Levels | 1 |
| Base Product Number | UK5-HESILA250 | ||
Documents & Media
Similar Parts
0801733
Phoenix Contact
Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din Rail, Material Steel, Perforated, Height 7.5mm, Width 35mm, Length 2m DIN RAIL 35MMX7.5MM SLOTTED 2M DINRail;Steel;Silver;7.50mm;35mm;2m
1052002
Phoenix Contact
Unspecified Tools & Accessories 8.2mm BLANK STRIPS Terminal Block Tools & Accessories 8.2mm BLANK STRIPS Connector Accessories Zack Marker Strip 10 Section Unprinted For Individual Labeling With M-PEN White Polyamide CONN ACC MARKER STRIP UNPRINTED Phoenix Contact 1052002 Marker Strip Terminal Block, Series: ZB ZACK STRIP, UNPRINTED ZBMarkingStrip;TermBlk;8.2mmpitch;Blank Marker; Width:8mm; for labelling by user Phoenix Contact ZB 系列 标记条
1201015
Phoenix Contact
Mounting Hardware NS 32 UNPERFORATED Gprofile DIN Rail, Material Steel, Unperforated, Height 15mm, Width 32mm, Length 2m DIN RAIL 32X15MM UNSLOT STEEL 2M G-profileDINrail,Steel,unperforated,height15mm,width32mm,eachpc2MTR DIN 导轨 G型, NS32 无孔型, 2000mm x 32mm x 15mm
1205053
Phoenix Contact
Screwdrivers, Nut Drivers & Socket Drivers MED. SCREWDRIVER ScrewDriver, Bladed, Matches All Screw Terminal Blocks Up To 4.0mm Connection Cross Section, Blade 0.6 X 3.5mm, Without VDE Approval SCREWDRIVER SLOT 0.6X3.5MM 7.13" Tool, Driver ScrewDriver;180mm;0.6mm;3.5mm;100mm;35g
1201798
Phoenix Contact
取り付け用金具類 PRICED by the METER 2 METER DIN RAIL DIN Rail, Material Steel, Un-Perforated, 2.3mm Thick, Height 15mm, Width 35mm, Length 2m DIN RAIL 35X15MM UNSLOT STEEL 2M Mounting Hardware PRICED by the METER 2 METER DIN RAIL Din-Rail,NS35/15-2,3UNPERF2000MM,1=2meters CustomcutDIN-Rail
3004207
Phoenix Contact
Terminal Block Tools & Accessories VS Connection Pin, For Coupling Disconnect Knives, In Plastic, 1m Long CONNECTION PIN 1000 MM GRAY Connection pin VS CONNECTIONPIN,FORFUSETERMINALBLOCKS
1201442
Phoenix Contact
Terminal Block Tools & Accessories END BRACKET Connector Accessories End Clamp Polyamide Gray DINRAIL END BRACKET UNIVERSAL Phoenix Contact 1201442 End Clamp DIN Rail, Series: E/UK EndClamp;TermBlk;Gray;50.8mmLx9.5mmWx35.3mmH Holder; grey; Width:9.5mm; TS32,TS35; Ht:35.3mm; L:50.5mm Phoenix Contact E/UK 系列 端夹
1052015:0001
Phoenix Contact
Terminal Block Tools & Accessories 8.2mm HZ STRIP 1-10 Connector Accessories Zack Marker Strip Labeled Horizontally Polyamide White CONN ACC MARKER STRIP PREPRINT ZBMarkingStrip;TermBlk;Horiz;8mm;Nos1-10;1strip10labels

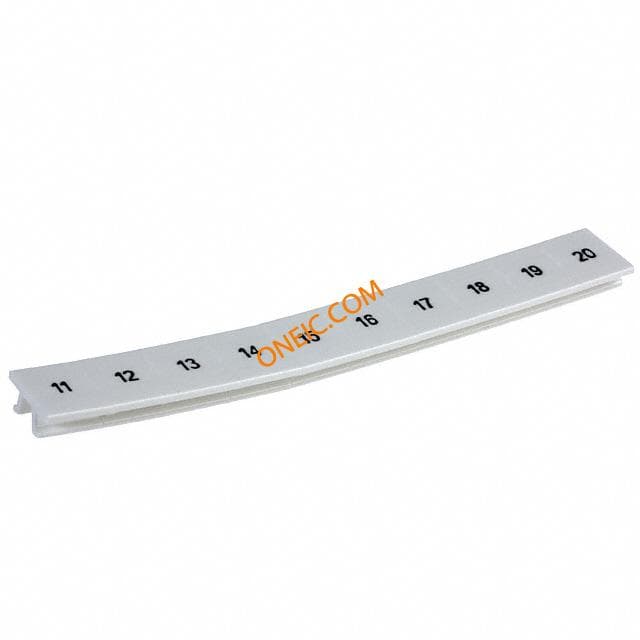

1052015:0011
