3000540
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | CLIPLINE UK | Other Names | UK 5-HESILED 24 N |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Current - IEC | 6.3A | Voltage - IEC | 500V |
| Voltage Rating | 500 V | Current Rating (Max) | 6.3 A |
Mechanical
| Color | Black | Width | 8.2 mm |
| Height | 50 mm, 57.5 mm, 58 mm | Length | 58 mm |
| Termination | Screw | Mounting Type | Cable Mount |
| Mounting Style | DIN Rail | Stripping Length | 8mm |
| Terminal - Width | 8.2mm | Termination Style | Screw |
| Number of Contacts | 2 | Number of Positions | 2 |
| Material - Insulation | Polyamide (PA), Nylon | Wire Gauge or Range - AWG | 12-24 AWG |
| Wire Gauge or Range - mm2 | 0.2-6mm² | ||
Product Info
| Type | Fuse Modular Terminal Blocks | Series | UK |
| Features | LED | Fuse Type | 5mm x 20mm |
| Disconnect Type | Fuse, Lever | Number of Levels | 1 |
Documents & Media
PDF Document
Similar Parts
1204119
Phoenix Contact
$194.2760
Details
1052002
Phoenix Contact
$5.7120
Details
1201015
Phoenix Contact
$289.5379
Details
0806602
Phoenix Contact
$104.4480
Details
3118151
Phoenix Contact
$9.7920
Details

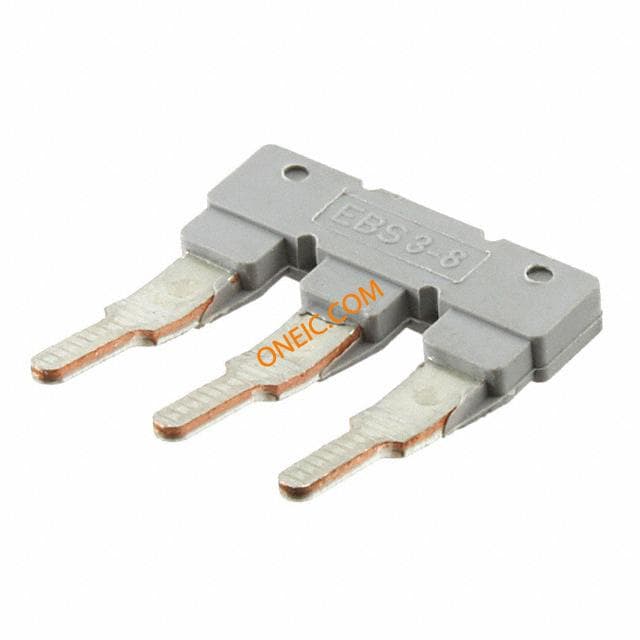

3118148
