点击放大查看

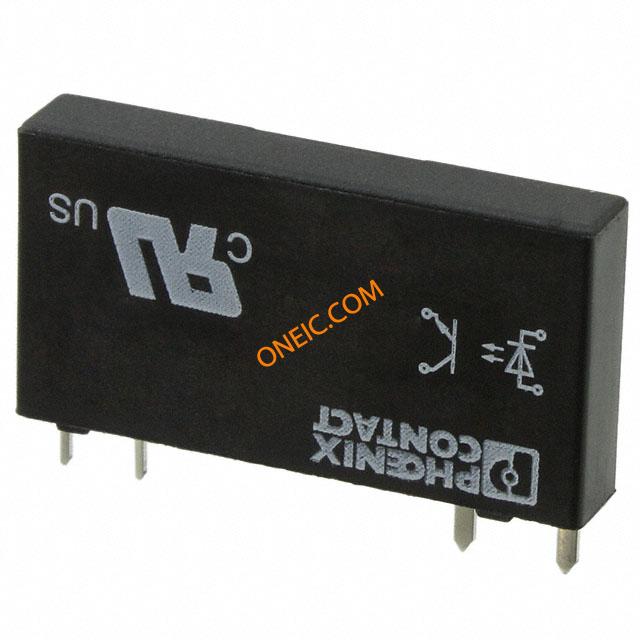

2967992
| Manufacturer | |
| Description | Solid State Relays - PCB Mount OPT-5DC/48DC/100 Optocoupler 4-Pin SIP OPTOCOUPLERS 5VDC Relay;E-Mech;Control;Cur-Rtg100mA;Ctrl-V5DC;Vol-Rtg3-48DC;cULus,RoHS |
| Category |
Business
| Lead Time | 28 Days | Tradename | INTERFACE Relay |
| Subcategory | Specialized Interfaces | Product Category | Solid State Relays - PCB Mount |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Standards | cULus,RoHS | ||
Electrical
| Circuit | SPST-NO (1 Form A) | Output Type | DC |
| Load Current | 100mA | Power - Rated | 144W(OhmicLoad),42W(InductiveLoad) |
| Isolation Type | Optocoupler | Voltage - Load | 3 ~ 48 V |
| Voltage Rating | 48VDC | Voltage - Supply | 5 VDC |
| Current Rating (Max) | 100 mA | Voltage - Input (Min) | 5VDC |
| Voltage - Supply (Min) | 3 VDC to 48 VDC | Current - Input Bias (Max) | 4 mA |
| Drive Voltage (Max Rds On, Min Rds On) | 5VDC | ||
Mechanical
| Width | 5 | Weight | 0.172842 oz |
| Packaging | Bulk | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Package / Case | SIP-4 |
| Length - Overall | 15 | Size / Dimension | 28mmLx5mmWx15mmH |
| Termination Style | Solder Pin | Number of Positions | 4 |
| Shell Size - Insert | 28 | ||
Product Info
| Series | OPT | Function | GeneralPurpose |
| Relay Type | Relay | Product Type | PCB Mount |
| Industry Aliases | OPT-5DC/48DC/100 | Base Product Number | OPT-5DC/48DC/100 |
| Printed Circuit Board | 4 | ||
Environmental
| Operating Temperature | + 60 C | Operating Temperature - Junction | 60°C |
