2967345
| Manufacturer | |

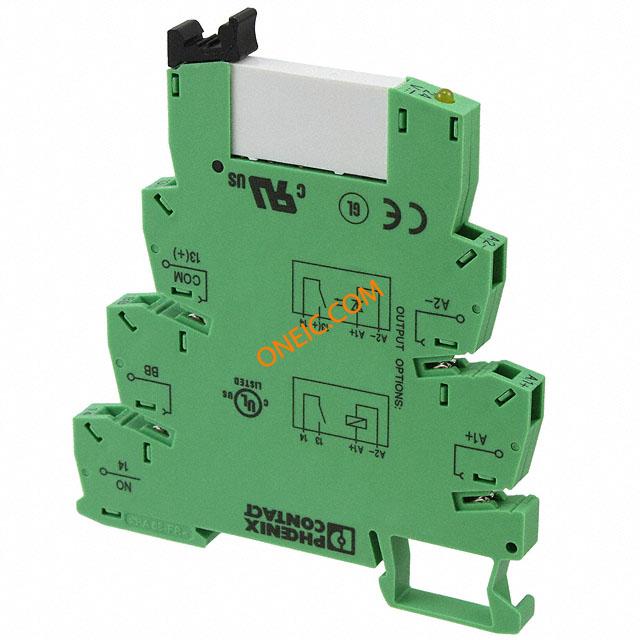

| Description | Industrial Relays PLC-RSP- 24DC/1/ACT Electromechanical Relay SPST-NO 6A 24VDC 2.67KOhm DIN Rail RELAY GEN PURPOSE SPST 6A 24V Relay PLC-RSP- 24DC/ 1/ACT Relay;E-Mech;SPST-NO;6A;Ctrl-V24DC;Vol-Rtg250AC/DC;DINRail;Spring-Cage |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 20 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | Industrial Relays |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Coil Type | Non Latching | Coil Current | 9 mA |
| Release Time | 8ms | Power - Rated | 1.5kVA |
| Visible Output | Yes | Voltage Rating | 250VAC/VDC |
| Coil Resistance | 2.67K | Pushing (MHz/V) | No |
| Voltage - Supply | 24 VDC | Switching Voltage | 250 VAC, 250 VDC |
| Diode Configuration | Yes | Current Rating (Max) | 6A |
| Voltage - Input (Min) | 250 | Contact Rating (Current) | 6 A |
| Drive Voltage (Max Rds On, Min Rds On) | 24VDC | ||
Mechanical
| Seal | Unsealed | Depth | 80 |
| Height | 94 | Weight | 1.052222 oz |
| Packaging | Bulk | Termination | SpringCage |
| Contact Form | SPST | Mounting Type | DIN Rail |
| Mounting Style | DIN Rail | Number of Pins | 5 |
| Contact Material | Silver Tin Oxide | Length - Overall | 6.2 |
| Termination Style | Screw Terminal | Contact Layout, Typical | SPST-NO |
Product Info
| Type | PLC Relay | Series | PLC-RSP |
| Features | LED Indicator, PLC Terminal Block | Function | PLC |
| Relay Type | PLC Relay | Industry Aliases | PLC-RSP- 24DC/1/ACT |
Environmental
| Operate Time | 5ms | Operating Temperature | -40°C ~ 60°C |
