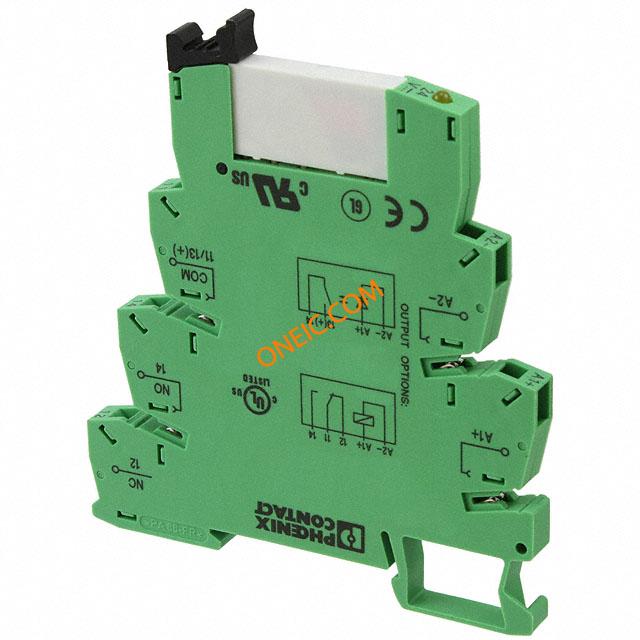

2966540
| Manufacturer | |
| Description | Industrial Relays PLC-RSP- 24DC/21AU Electromechanical Relay SPDT 0.05A 24VDC 2.67KOhm DIN Rail RELAY GEN PURPOSE SPDT 50MA 24V Relay PLC-RSP- 24DC/21AU PLCSENSORRELAYBASETERMINALBLOCK 单刀双掷 DIN Rail 接口继电器模块, 50mA |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 28 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | Industrial Relays |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Coil Type | Non Latching | Coil Current | 9 mA |
| Release Time | 8ms | Turn On Time | 5ms |
| Visible Output | Yes | Voltage Rating | 36 |
| Coil Resistance | 2.67K | Pushing (MHz/V) | No |
| Voltage - Supply | 24 VDC | Switching Voltage | 30 VAC, 36 VDC |
| Diode Configuration | Yes | Current Rating (Max) | 50mA |
| Voltage - Input (Min) | 30 | Contact Rating (Current) | 50 mA |
| Current - Input Bias (Max) | 9mA | ||
Mechanical
| Seal | Unsealed | Depth | 6.2mm |
| Height | 80mm | Length | 94mm |
| Weight | 1.069859 oz | Packaging | Bulk |
| Contact Form | SPDT | Mounting Type | DIN Rail |
| Mounting Style | DIN Rail | Contact Material | Silver |
| Length - Overall | 14 | Size / Dimension | 94 x 6.2 x 80mm |
| Termination Style | Screw Terminal | Number of Contacts | 5 |
| Contact Layout, Typical | SPDT | ||
Product Info
| Type | PLC Relay | Series | PLC-RSP |
| Features | LED Indicator, PLC Terminal Block | Relay Type | PLC Relay |
| CAD Drawing | 3D CAD 模型 | Industry Aliases | PLC-RSP- 24DC/21AU |
Environmental
| Operate Time | 5ms | Operating Temperature | -25°C ~ 60°C |
| Maximum Temperature Limit | +60°C | ||
