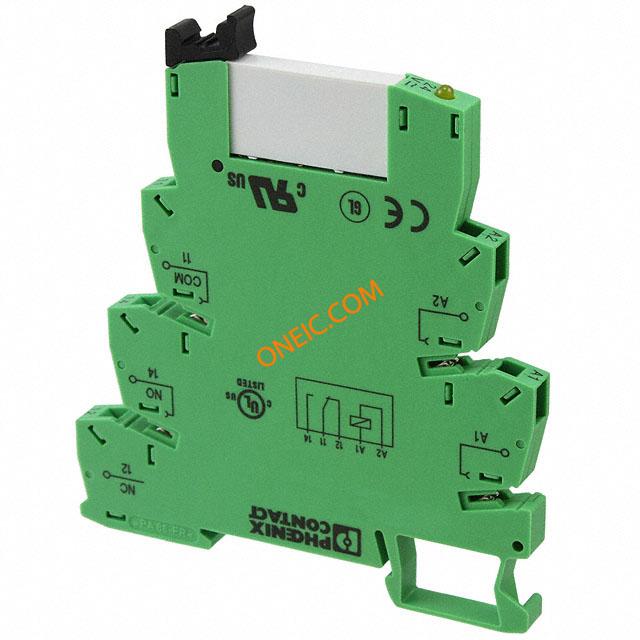

2966485
| Manufacturer | |
| Description | Industrial Relays PLC-RSP- 24UC/21 Electromechanical Relay SPDT 6A 24VDC 24VAC DIN Rail RELAY GEN PURPOSE SPDT 6A 24V SPDT DIN Rail Panel Mount Interface Relay Module, 250V PLCSENSORRELAYBASETERMINALBLOCK PLCrelay,consistingofbaseterminalblockpluggableminiaturerelay 单刀双掷 DIN Rail 接口继电器模块, 24V ac |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 20 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | Industrial Relays |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Coil Type | Non Latching | Coil Current | 11 mA |
| Release Time | 15ms | Power - Rated | 1.5kVA |
| Visible Output | Yes | Voltage Rating | 24V ac |
| Pushing (MHz/V) | No | Voltage - Supply | 24 VAC |
| Switching Voltage | 250 VAC, 250 VDC | Diode Configuration | Yes |
| Current Rating (Max) | 6 | Voltage - Input (Min) | 250 |
| Voltage - Supply (Min) | 250V | Contact Rating (Current) | 6 A |
| Current - Input Bias (Max) | 11 (ac), 8.5 (dc)mA | ||
Mechanical
| Seal | Unsealed | Depth | 6.2mm |
| Height | 94mm | Length | 80mm |
| Weight | 1.079030 oz | Packaging | Bulk |
| Contact Form | SPDT | Mounting Type | DIN Rail |
| Terminal Type | Screw | Mounting Style | DIN Rail |
| Contact Material | Silver Tin Oxide | Length - Overall | 6.2 |
| Size / Dimension | 80 x 6.2 x 94mm | Termination Style | Screw Terminal |
| Contact Layout, Typical | SPDT | ||
Product Info
| Type | PLC Relay | Series | PLC-RSP |
| Features | LED Indicator, PLC Terminal Block | Relay Type | PLC Relay |
| Industry Aliases | PLC-RSP- 24UC/21 | ||
Environmental
| Operate Time | 6ms | Operating Temperature | -25°C ~ 60°C |
| Maximum Temperature Limit | +60°C | ||
