点击放大查看

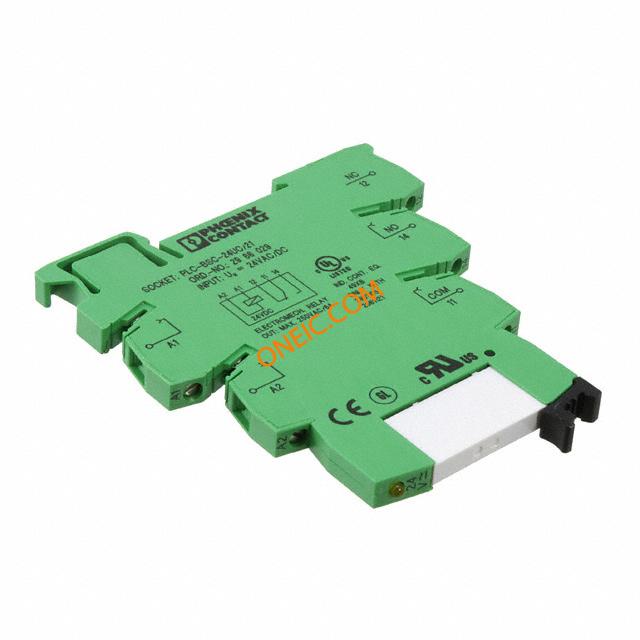

2966278
| Manufacturer | |
| Description | Industrial Relays PLC-RSC- 24UC/21AU RELAY PN 651-2961121 Electromechanical Relay SPDT 0.05A 24VDC 24VAC DIN Rail RELAY GEN PURPOSE SPDT 50MA 24V Relay PLC-RSC- 24UC/21AU RELAY, PLC, SPDT, 24VAC/DC, DIN, SCREW PLCSENSORRELAYBASETERMINALBLOCK |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 20 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | Industrial Relays |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85364190 |
Electrical
| Coil Type | Non Latching | Coil Current | 11 mA, 8.5 mA |
| Release Time | 15ms | Visible Output | Yes |
| Voltage Rating | 36 | Pushing (MHz/V) | No |
| Voltage - Supply | 24 VAC | Switching Voltage | 30 VAC, 36 VDC |
| Diode Configuration | Yes | Current Rating (Max) | 0.05 |
| Current - Max/Contact | :50mA | Voltage - Input (Min) | 30 |
| Contact Rating (Current) | 50 mA | Voltage - Supply (Vcc/Vdd) | :36V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :30V | ||
Mechanical
| Seal | Unsealed | Depth | :94mm |
| Width | 6.2 mm | Height | 94 mm |
| Length | 80 mm | Weight | 1.204606 oz |
| Packaging | Bulk | Contact Form | 1 Form C (SPDT-BM) |
| Height (Max) | :80mm | Mounting Type | DIN Rail |
| Mounting Style | DIN Rail | Contact Material | Silver |
| Length - Overall | 6.2 | Termination Style | Screw Terminal |
| Contact Termination | Screw | Contact Layout, Typical | SPDT |
Product Info
| Type | DIN Rail Relay | Series | PLC-RSC |
| Features | LED Indicator, PLC Terminal Block | Relay Type | PLC Relay |
| Industry Aliases | PLC-RSC- 24UC/21AU | ||
Environmental
| Operate Time | 6ms | Operating Temperature | -25°C ~ 60°C |
Documents & Media
Online Document
PDF Document
PDF Document
PDF Document
Online Document
