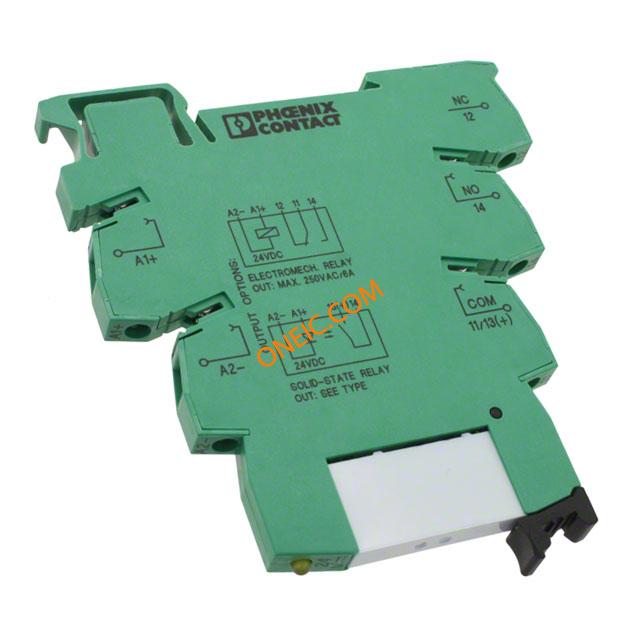

2966265
| Manufacturer | |
| Description | Industrial Relays PLC-RSC- 24DC/21AU RELAY PN 651-2961121 Electromechanical Relay SPDT 0.05A 24VDC 2.66KOhm DIN Rail RELAY GEN PURPOSE SPDT 50MA 24V SPDT DIN Rail Panel Mount Interface Relay Module, 30, 36V ac, V dc RELAY, PLC, SPDT, 24VDC, DIN, SCREW PLC-RSCRelayModules,SPDT,6Aat24VDC,AUPlated,ScrewTerminalBase 单刀双掷 DIN Rail 接口继电器模块, 24V dc |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 20 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | Industrial Relays |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85364190 |
Electrical
| Coil Type | Non Latching | Coil Current | 10 mA |
| Release Time | 8ms | Visible Output | Yes |
| Voltage Rating | 24V dc | Coil Resistance | 2.66K |
| Pushing (MHz/V) | No | Voltage - Supply | 24 V |
| Switching Voltage | 30VAC, 36VDC - Max | Resistance - Input | 2.66kΩ |
| Diode Configuration | Yes | Current Rating (Max) | 6A |
| Current - Max/Contact | :6A | Voltage - Input (Min) | 30 |
| Voltage - Supply (Min) | 30 V ac, 36 V dc | Power - Average Forward | 140 W |
| Contact Rating (Current) | 50mA | Current - Input Bias (Max) | 9mA |
| Voltage - Supply (Vcc/Vdd) | :250V | Drive Voltage (Max Rds On, Min Rds On) | 24VDC |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Seal | Unsealed | Depth | 6.2mm |
| Width | :6.2mm | Height | 94mm |
| Length | 80mm | Weight | 1.170390 oz |
| Packaging | Bulk | Termination | Screw |
| Contact Form | SPDT | Height (Max) | :80mm |
| Mounting Type | DIN Rail | Terminal Type | Screw |
| Mounting Style | DIN Rail | Contact Material | Silver Tin Oxide |
| Length - Overall | 6.2 | Termination Style | Screw Terminal |
| Contact Termination | PCB | Contact Layout, Typical | SPDT |
Product Info
| Type | Interface | Series | PLC-RSC |
| Features | LED Indicator, PLC Terminal Block | Function | PLC |
| Relay Type | PLC Relay | Manufacturer | PLC-RSC/RSP |
| Industry Aliases | PLC-RSC- 24DC/21AU | Base Product Number | PLC-RSC-24DC/21AU |
Environmental
| Operate Time | 5ms | Operating Temperature | -25°C ~ 60°C |
