点击放大查看

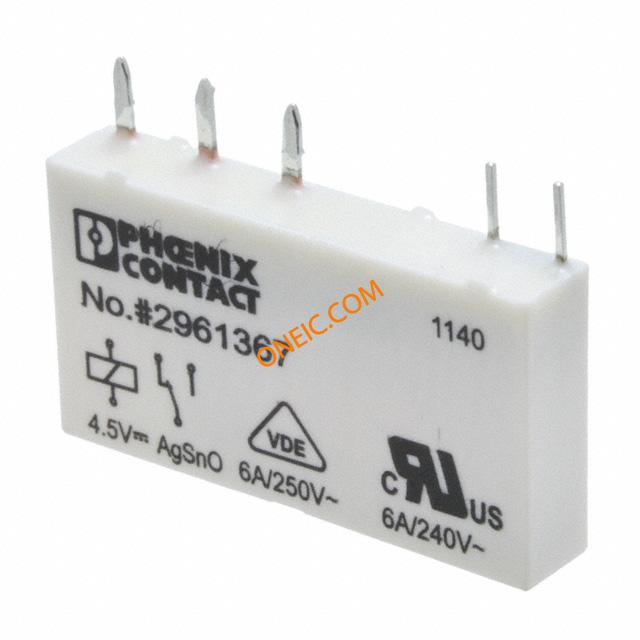

2961367
| Manufacturer | |
| Description | General Purpose Relays REL-MR-4.5DC/21 Electromechanical Relay SPDT 6A 4.5VDC 119Ohm Plug-In RELAY GEN PURPOSE SPDT 6A 4.5V Single relay REL-MR- 4,5DC/21 Relay;PluggableMiniaturew/PowerContact;1PDT;4.5VDC;38mA; |
| Category |
Business
| Lead Time | 28 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | General Purpose Relays |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Coil Type | High Sensitivity | Coil Current | 38 mA |
| Release Time | 2.5ms | Power - Rated | 1.5kVA |
| Visible Output | No | Voltage Rating | 250 |
| Coil Resistance | 325 Ohms | Pushing (MHz/V) | No |
| Voltage - Supply | 9 V | Switching Voltage | 250VAC, 250VDC - Max |
| Diode Configuration | No | Current Rating (Max) | 6 |
| Voltage - Input (Min) | 250 | Power - Average Forward | 25 mW |
| Contact Rating (Current) | 6A | ||
Mechanical
| Seal | Unsealed | Depth | 5 |
| Height | 15 | Weight | 0.224695 oz |
| Packaging | Bulk | Contact Form | 1 Form A (SPST-NO) |
| Mounting Type | Plug-In | Mounting Style | Plug In |
| Contact Material | Silver Cadmium Oxide | Length - Overall | 28 |
| Termination Style | Solder Pin | Number of Contacts | 5 |
| Contact Termination | PCB | Contact Layout, Typical | SPDT |
Product Info
| Type | Power Relays | Series | REL-MR |
| Relay Type | Non-Latching | Industry Aliases | REL-MR-4.5DC/21 |
Environmental
| Operate Time | 5ms | Operating Temperature | -40°C ~ 85°C |
