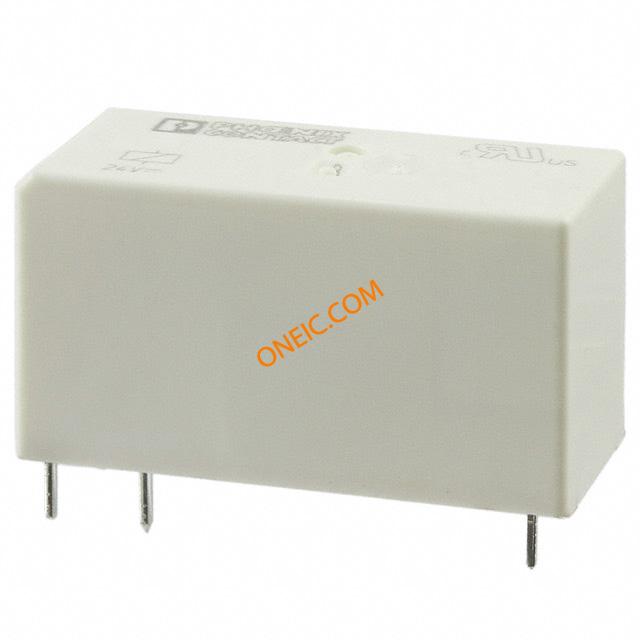

2961341
| Manufacturer | |
| Description | General Purpose Relays REL-MR-24DC/1IC REPLACEMENT RELAY Electromechanical Relay SPST-NO 16A 24VDC 1.44KOhm Through Hole RELAY GEN PURPOSE SPST 16A 24V Single relay REL-MR- 24DC/ 1IC Relay;E-Mech;Power;SPST;Cur-Rtg16A;Ctrl-V24VDC;Vol-Rtg250AC/DC;PCBMnt;8Pin 单刀单掷 PCB（印刷电路板）安装 电源继电器模块, 16A, 24V dc |
| Category |
Business
| Lead Time | 28 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | General Purpose Relays |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | CRU 认证，cUL 认证，CULus，UL 认证，VDE | ||
Electrical
| Coil Type | Non Latching | Coil Current | 17 mA |
| Release Time | 3ms | Turn On Time | 8ms |
| Power - Rated | 4kVA | Visible Output | No |
| Voltage Rating | 250 | Coil Resistance | 1440 Ohms |
| Input Impedance | 1440Ω | Number of Poles | 1 |
| Pushing (MHz/V) | No | Voltage - Supply | 24 VDC |
| Switching Voltage | 250VAC, 250VDC - Max | Diode Configuration | No |
| Current Rating (Max) | 16A | Voltage - Input (Min) | 250 |
| Contact Rating (Current) | 16 A | Current - Input Bias (Max) | 17mA |
Mechanical
| Seal | Unsealed | Depth | 12.7mm |
| Width | 12.7 mm | Height | 15.7 mm |
| Length | 29 mm | Weight | 0.523466 oz |
| Packaging | Bulk | Contact Form | 1 Form A (SPST-NO) |
| Mounting Type | Through Hole | Mounting Style | Plug In |
| Package Cooled | DIP | Contact Material | Silver Tin Oxide |
| Length - Overall | 29 | Size / Dimension | 29 x 12.7 x 15.7mm |
| Termination Style | PC Pin | Number of Contacts | 8 |
| Contact Termination | Screw | Contact Layout, Typical | SPST-NO |
Product Info
| Type | Pluggable Relay | Series | REL-MR |
| Features | 高保护等级，线圈和触点之间安全隔离符合 DIN EN 50178 标准，高达 RT III | Relay Type | Non-Latching |
| Industry Aliases | REL-MR-24DC/1IC | Base Product Number | REL-MR-24DC/1IC |
Environmental
| Operate Time | 8ms | Operating Temperature | -40°C ~ 85°C |
| Maximum Temperature Limit | +85°C | ||
