2961228
| Manufacturer | |
| Description | General Purpose Relays REL-MR-110DC/21-21 REPLACEMENT RELAY Electromechanical Relay DPDT 0.05A 110VDC 26.6KOhm Through Hole RELAY GEN PURPOSE DPDT 50MA 110V Single relay REL-MR-110DC/21-21AU Relay;E-Mech;Power;DPDT;Cur-Rtg50mA;Ctrl-V110VDC;Vol-Rtg30VAC/36VDC;PCBMnt;8 |
| Category |
Business
| Lead Time | 12 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | General Purpose Relays |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | No | EU RoHS | Compliant |
Electrical
| Coil Type | Non Latching | Coil Current | 4.1mA |
| Release Time | 3ms | Visible Output | No |
| Voltage Rating | 36 | Coil Resistance | 26600 Ohms |
| Pushing (MHz/V) | No | Voltage - Supply | 110 V |
| Switching Voltage | 30VAC, 36VDC - Max | Diode Configuration | No |
| Current Rating (Max) | 0.05 | Voltage - Input (Min) | 30 |
| Contact Rating (Current) | 50mA | ||
Mechanical
| Seal | Unsealed | Depth | 12.7 |
| Width | 12.7 mm | Height | 15.7 mm |
| Length | 29 mm | Weight | 0.528051 oz |
| Packaging | Bulk | Contact Form | 1 Form C (SPDT-BM) |
| Mounting Type | Through Hole | Mounting Style | Plug In |
| Package Cooled | DIP | Contact Material | Silver Tin Oxide |
| Length - Overall | 29 | Termination Style | PC Pin |
| Number of Contacts | 8 | Contact Termination | Screw |
| Contact Layout, Typical | DPDT | ||
Product Info
| Type | Miniature Relay | Series | REL-MR |
| Relay Type | Non-Latching | Industry Aliases | REL-MR-110DC/21-21/AU |
| Base Product Number | REL-MR-110DC/21-21AU | ||
Environmental
| Operate Time | 7ms | Operating Temperature | -40°C ~ 85°C |
Documents & Media
Similar Parts
2833518
Phoenix Contact
Relay Sockets & Hardware RELAY SOCKET PR1 PR1-BSC2/2X21 Relay Socket For Miniature Power Relay Or Miniature Switching Relay RELAY SKT SPDT OR DPDT DIN RAIL Relay Socket For Use With PR1 Series SOCKET, RELAY, FOR PR1 SERIES RELAYSOCKETPR1
2833521
Phoenix Contact
Relay Sockets & Hardware PR1-BSC3/2X21 CONNECTOR SOCKET RELAY SKT SPDT OR DPDT DIN RAIL Relay Socket For Use With PR1 Series Conn Relay Socket SKT Screw Cable Mount RELAYSOCKETPR2
2967138
Phoenix Contact
Industrial Relays PLCRSC-120UC/21-21AU RELAY PN 651-2961228 Electromechanical Relay DPDT 0.05A 110VDC 120VAC DIN Rail RELAY GEN PURPOSE DPDT 50MA 120V Relay PLC-RSC-120UC/21-21AU PLC-RSCRelayModules,DPDT,6Aat120VACor110VDC(AUPlated)
2912617
Phoenix Contact
Industrial Relays PLC-RSP-120UC/ 21-21AU Electromechanical Relay DPDT 0.5A 110VDC 120VAC Socket DIN RAIL TERM BLOCK W/RELAY DPDT Relay PLC-RSP-120UC/21-21AU PLC-RSP-120UC/21-21AU
2912484
Phoenix Contact
Relay Sockets & Hardware PLC-BSP-230UC/21-21 Conn PLC Terminal Blocks Cable Mount 14 MM PLC BASIC TERM BLOCK Basic terminal block PLC-BSP-230UC/21-21 PLC-BSP-230UC/21-21
2833534
Phoenix Contact
Relay Sockets & Hardware PR1 RELAY SKT FOR MINI POWER/SWITCHING Conn Relay Socket SKT 8 POS RELAY SKT SPDT OR DPDT DIN RAIL Relay socket PR1-BSP3/2X21 PR1-BSP3/2X21
2967141
Phoenix Contact
Industrial Relays PLC-RSC-230UC/ 21-21AU Electromechanical Relay DPDT 6A 220VDC 230VAC DIN Rail RELAY GEN PURPOSE DPDT 50MA 230V Relay PLC-RSC-230UC/21-21AU PLC-RSC-230UC/21-21AU

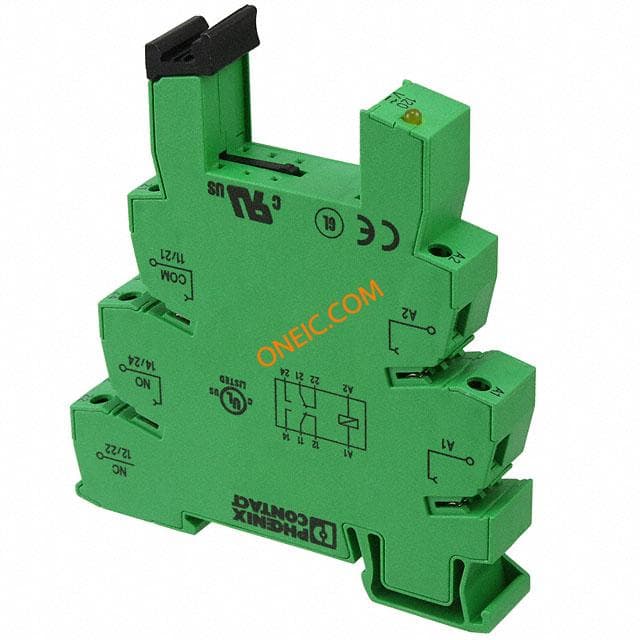

2967031
Phoenix Contact
Relay Sockets & Hardware PLC-BSC-120UC/21-21 14MM PLC RELAY BASE Conn PLC Terminal Blocks Screw ST 6A 14MM PLC BASIC TERM BLOCK 24V Basic terminal block PLC-BSC-120UC/21-21 Socket,Relay;TerminalBlock(14mm),(InputVoltage120VAC/VDC) 14MMPLCTERMINALBLOCKS120VAC/DC

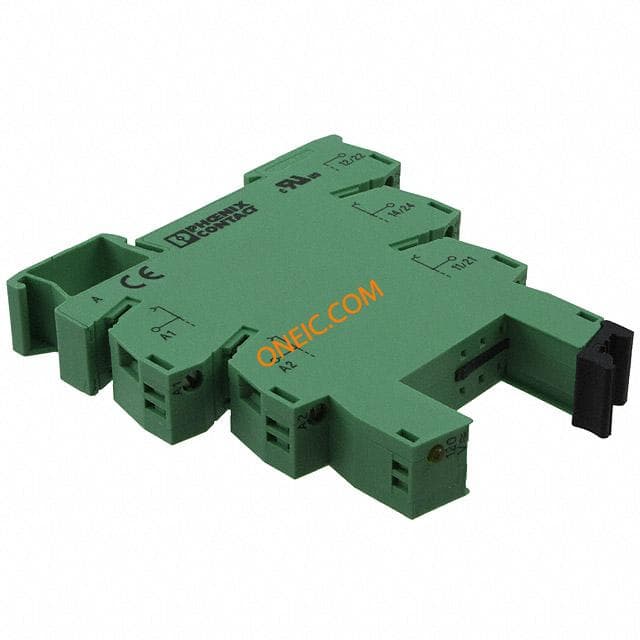

2980416
