2961215
| Manufacturer | |
| Description | General Purpose Relays REL-MR 24DC/21-21/AU REPLACEMENT RELAY Electromechanical Relay DPDT 0.05A 24VDC 1.44KOhm Through Hole RELAY GEN PURPOSE DPDT 50MA 24V MIN.RELAYS,2 PDT,24 V DC AU Relay;E-Mech;Power;DPDT;Cur-Rtg8A;Ctrl-V24VDC;Vol-Rtg250AC/DC;PCBMnt;8Pin |
| Category |
Business
| Lead Time | 28 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | General Purpose Relays |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Coil Type | Non Latching | Power - Max | 190 W |
| Coil Current | 17mA | Release Time | 3ms |
| Visible Output | No | Voltage Rating | 36 |
| Coil Resistance | 1440 Ohms | Pushing (MHz/V) | No |
| Voltage - Supply | 24 V | Switching Voltage | 30VAC, 36VDC - Max |
| Current - Switching | 50 mA | Diode Configuration | No |
| Current Rating (Max) | 0.05 | Power - Output Surge | 2000 VA |
| Voltage - Input (Min) | 30 | Voltage - Switching DC | 36V dc |
| Contact Rating (Current) | 50mA | ||
Mechanical
| Seal | Unsealed | Depth | 15.7mm |
| Width | 12.7 mm | Height | 15.7 mm |
| Length | 29 mm | Weight | 0.527346 oz |
| Packaging | Bulk | Contact Form | 1 Form C (SPDT-BM) |
| Mounting Type | Through Hole | Terminal Type | Through Hole |
| Mounting Style | Plug In | Package Cooled | DIP |
| Contact Material | Silver Nickel | Length - Overall | 29 |
| Termination Style | PC Pin | Number of Contacts | 8 |
| Contact Termination | Screw | Contact Layout, Typical | DPDT |
Product Info
| Type | Miniature Relay | Series | REL-MR |
| Relay Type | Non-Latching | Industry Aliases | REL-MR 24DC/21-21/AU |
| Base Product Number | REL-MR-24DC/21-21AU | Application Specifics | Power |
Environmental
| Operate Time | 7ms | Operating Temperature | -40°C ~ 85°C |
Similar Parts
2967028
Phoenix Contact
Relay Sockets & Hardware PLC-BSC- 24UC/21-21 Conn PLC Terminal Blocks Screw ST 6A 14MM PLC BASIC TERM BLOCK 24V Basic terminal block PLC-BSC- 24UC/21-21 14 mm PLC basic terminal blocks with screw connection method, input voltage 24 V AC/DC(without relay or optocoupler) Socket,Relay;TerminalBlock(14mm),(InputVoltage24VAC/VDC) 底盘安装 接口继电器模块, 24V ac/dc
2967125
Phoenix Contact
Industrial Relays PLC-RSC-24DC/21-21AU RELAY PN 651-2961215 Electromechanical Relay DPDT 0.05A 24VDC 1.33KOhm DIN Rail RELAY GEN PURPOSE DPDT 50MA 24V Relay PLC-RSC- 24DC/21-21AU RELAY, PLC, DPDT, 24VDC, DIN, SCREW Relay;E-Mech;PLC;DPDT;Cur-Rtg50mA;Ctrl-V24DC;Vol-Rtg30/36AC/DC;Screw
2833518
Phoenix Contact
Relay Sockets & Hardware RELAY SOCKET PR1 PR1-BSC2/2X21 Relay Socket For Miniature Power Relay Or Miniature Switching Relay RELAY SKT SPDT OR DPDT DIN RAIL Relay Socket For Use With PR1 Series SOCKET, RELAY, FOR PR1 SERIES RELAYSOCKETPR1
2833521
Phoenix Contact
Relay Sockets & Hardware PR1-BSC3/2X21 CONNECTOR SOCKET RELAY SKT SPDT OR DPDT DIN RAIL Relay Socket For Use With PR1 Series Conn Relay Socket SKT Screw Cable Mount RELAYSOCKETPR2
2912578
Phoenix Contact
Industrial Relays PLC-RSP- 24DC/ 21-21AU Electromechanical Relay DPDT 0.05A 24VDC 1.33KOhm DIN Rail RELAY GEN PURPOSE DPDT 6A 24V Relay PLC-RSP- 24DC/21-21AU PLC-RSP-24DC/21-21AU
2967112
Phoenix Contact
Industrial Relays PLC-RSC- 24UC/21-21A RELAY PN 651-2961215 Electromechanical Relay DPDT 0.05A 24VDC 24VAC DIN Rail RELAY GEN PURPOSE DPDT 50MA 24V Relay PLC-RSC- 24UC/21-21AU PLC-RSC-24UC/21-21AU
2833534
Phoenix Contact
Relay Sockets & Hardware PR1 RELAY SKT FOR MINI POWER/SWITCHING Conn Relay Socket SKT 8 POS RELAY SKT SPDT OR DPDT DIN RAIL Relay socket PR1-BSP3/2X21 PR1-BSP3/2X21
2967280
Phoenix Contact
Industrial Relays PLC-RSC- 48DC/ 21-21AU Electromechanical Relay DPDT 6A 48VDC 2.4KOhm DIN Rail RELAY GEN PURPOSE DPDT 50MA 48V Relay PLC-RSC- 48DC/21-21AU PLC relay, consisting of base terminal block PLC-BSC.../21 with screw connection and pluggable miniature relay with multi-layer contact, for assembly ... PLC relay, consisting of base terminal block PLC-BSC.../21 with screw connection and pluggable miniature relay with multi-layer contact, for assembly on DIN rail NS 35/7.5, 2 PDT, input voltage 48 V DC PLC-RSC-48DC/21-21AU
2912439
Phoenix Contact
Relay Sockets & Hardware PLC-BSP-24DC/21-21 NO RELAY INCL Conn PLC Terminal Blocks F 14 MM PLC BASIC TERM BLOCKS Basic terminal block PLC-BSP- 24DC/21-21 Socket,Relay;TerminalBlock(14mm),(InputVoltage24VDC) Socket, Relay; Terminal Block (14mm)

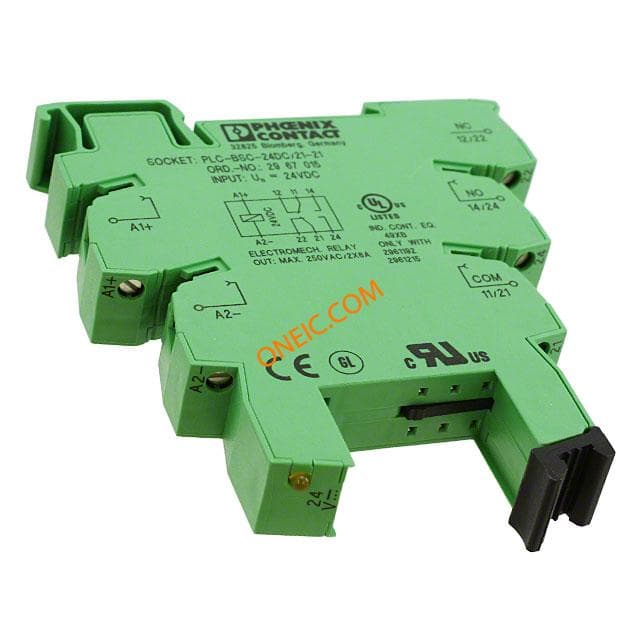

2967015
