2961163
| Manufacturer | |
| Description | General Purpose Relays REL-MR- 12DC/21AU REPLACEMENT RELAY Electromechanical Relay SPDT 0.05A 12VDC 848Ohm Through Hole RELAY GEN PURPOSE SPDT 50MA 12V Single relay REL-MR- 12DC/21AU REL-MR-12DC/21AU |
| Category |
Business
| Lead Time | 28 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | General Purpose Relays |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | No | EU RoHS | Compliant |
Electrical
| Coil Type | Non Latching | Coil Current | 14 mA |
| Release Time | 2.5ms | Visible Output | No |
| Voltage Rating | 36 | Coil Resistance | 848 Ohms |
| Pushing (MHz/V) | No | Voltage - Supply | 12 VDC |
| Switching Voltage | 30VAC, 36VDC - Max | Diode Configuration | No |
| Current Rating (Max) | 0.05 | Voltage - Input (Min) | 30 |
| Contact Rating (Current) | 6 A | ||
Mechanical
| Seal | Unsealed | Depth | 5 |
| Width | 5 mm | Height | 15 mm |
| Length | 28 mm | Weight | 0.232103 oz |
| Packaging | Bulk | Contact Form | 1 Form C (SPDT-BM) |
| Mounting Type | Through Hole | Mounting Style | Plug In |
| Package Cooled | SIP | Contact Material | Silver |
| Length - Overall | 28 | Termination Style | PC Pin |
| Number of Contacts | 5 | Contact Termination | Screw |
| Contact Layout, Typical | SPDT | ||
Product Info
| Type | Miniature Relay | Series | REL-MR |
| Relay Type | Non-Latching | Industry Aliases | REL-MR- 12DC/21AU |
Environmental
| Operate Time | 5ms | Operating Temperature | -40°C ~ 85°C |
Similar Parts
2966919
Phoenix Contact
Industrial Relays PLC-RSC- 12DC/21AU RELAY PN 651-2961163 Electromechanical Relay SPDT 0.05A 12VDC 784.3Ohm DIN Rail RELAY GEN PURPOSE SPDT 50MA 12V Relay PLC-RSC- 12DC/21AU PLCRELAYBASETERMINALBLOCK
2987024
Phoenix Contact
Industrial Relays PLC-RSP- 24UC/ 21AU/RW 6.2 Mm Plc Complete Relay Module With Spring-Cage Connections 6.2MM PLC RELAY MODULE 24VDC 6.2MMPLCCOMPLETERELAYMODULE
2967442
Phoenix Contact
Industrial Relays PLC-RSP- 12DC/21AU Electromechanical Relay SPDT 0.05A 12VDC 784.31Ohm DIN Rail RELAY GEN PURPOSE SPDT 50MA 12V Relay PLC-RSP- 12DC/21AU RelayModule;PLCInterface;1PDT;12VDC;PLC-RSP-12DC/21AU
2967426
Phoenix Contact
Relay Sockets & Hardware PLC-BSP- 12DC/21 Conn PLC Terminal Blocks F 6.2MM PLC SENSOR TERM BLOCKS Basic terminal block PLC-BSP- 12DC/21 PLC-BSP-12DC/21

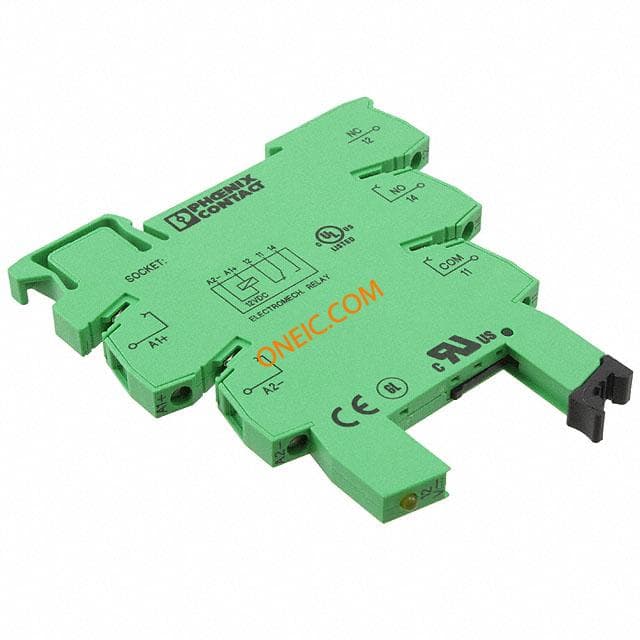

2966896
