2961134
| Manufacturer | |
| Description | General Purpose Relays REL-MR- 60DC/21AU REPLACEMENT RELAY Electromechanical Relay SPDT 0.05A 60VDC 20.5KOhm Plug-In RELAY GEN PURPOSE SPDT 50MA 60V REL-MR- 60DC/21AU Relay;E-Mech;Power;SPDT;Cur-Rtg50mA;Ctrl-V60VDC;Vol-Rtg30VAC/36VDC;PCBMnt; |
| Category |
Business
| Lead Time | 28 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | General Purpose Relays |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Coil Type | Non Latching | Coil Current | 3 mA |
| Release Time | 2.5ms | Visible Output | No |
| Voltage Rating | 36 | Coil Resistance | 20500 Ohms |
| Pushing (MHz/V) | No | Voltage - Supply | 60 V |
| Switching Voltage | 30VAC, 36VDC - Max | Diode Configuration | No |
| Current Rating (Max) | 0.05 | Voltage - Input (Min) | 30 |
| Power - Average Forward | 1.2 W | Contact Rating (Current) | 50mA |
Mechanical
| Seal | Unsealed | Depth | 5 |
| Height | 15 | Weight | 0.233514 oz |
| Packaging | Bulk | Contact Form | 1 Form C (SPDT-BM) |
| Mounting Type | Plug-In | Mounting Style | Plug In |
| Package Cooled | SIP | Contact Material | Silver Tin Oxide |
| Length - Overall | 28 | Termination Style | Solder Pin |
| Number of Contacts | 5 | Contact Termination | PCB |
| Contact Layout, Typical | SPDT | ||
Product Info
| Type | Interface | Series | REL-MR |
| Relay Type | Non-Latching | Industry Aliases | REL-MR- 60DC/21AU |
| Base Product Number | REL-MR-60DC/21AU | ||
Environmental
| Operate Time | 5ms | Operating Temperature | -40°C ~ 85°C |
Similar Parts
2966045
Phoenix Contact
Relay Sockets & Hardware PLC-BSC-230UC/21 Conn PLC Terminal Blocks Screw ST RELAY SOCKET TERM BLOCK Basic terminal block PLC-BSC-230UC/21 Socket,Relay;TerminalBlock(6.2mm),(InputVoltage230VAC/VDC) Socket for interface relay 230VAC
2980322
Phoenix Contact
Relay Sockets & Hardware PLC-BSC-120UC/1/ SEN/SO46 Conn PLC Terminal Blocks Screw ST 6.2MM PLC SENSOR TERM BLOCK 120V Basic terminal block PLC-BSC-120UC/ 1/SEN/SO46 6.2MMPLCACTUATORBASICTERMINALBLOCK PLCsensorbasicterminalblocks(withoutrelay)120VAC/DC
2966320
Phoenix Contact
Industrial Relays PLC-RSC-120UC/1AUSEN RELAY PN 651-2961134 Electromechanical Relay SPST-NO 0.05A 110VDC 120VAC DIN Rail RELAY GEN PURPOSE SPST 50MA 120V Relay PLC-RSC-120UC/ 1AU/SEN PLC-RSC-120UC/1AU/SEN
2966074
Phoenix Contact
Relay Sockets & Hardware PLC-BSC-120UC/1/SEN Conn PLC Terminal Blocks F Screw 6.2MM PLC SENSOR TERM BLOCK 120V Basic terminal block PLC-BSC-120UC/ 1/SEN 6.2 mm PLC sensor basic terminal blocks with screw connection method, input voltage 120 V AC/DC(without relay or optocoupler) PLC-BSC-120UC/1/SEN
2967167
Phoenix Contact
Relay Sockets & Hardware PLC-BSP-120UC/21 Conn PLC Terminal Blocks F RELAY SOCKET TERM BLOCK Basic terminal block PLC-BSP-120UC/21 6.2 mm PLC basic terminal blocks with spring-cage connection method, input voltage 120 V AC/DC(without relay or optocoupler) Socket,Relay;TerminalBlock(6.2mm),(InputVoltage120VAC/VDC)
2980335
Phoenix Contact
Relay Sockets & Hardware PLC-BSC-23OUC/21SO46 Conn PLC Terminal Blocks Screw ST 6.2 MM PLC BASIC TERMINAL BLOCKS Basic terminal block PLC-BSC-230UC/21/SO46 6.2 mm PLC basic terminal blocks with screw connection method and integrated RCZ filter against interference voltages and currents on ... 6.2 mm PLC basic terminal blocks with screw connection method and integrated RCZ filter against interference voltages and currents on the control side, input voltage 230 V AC/DC(without relay or optocoupler) PLC-BSC-230UC/21/SO46
2966281
Phoenix Contact
Industrial Relays PLC-RSC-120UC/21AU RELAY PN 651-2961134 Electromechanical Relay SPDT 0.05A 110VDC 120VAC DIN Rail RELAY GEN PURPOSE SPDT 50MA 120V Relay PLC-RSC-120UC/21AU PLC-RSCRelayModules,SPDT,6Aat120VACor110VDC(AUPlated) PLCSENSORRELAYBASETERMINALBLOCK
2966294
Phoenix Contact
Industrial Relays PLC-RSC-230UC/21AU Electromechanical Relay SPDT 0.05A 220VDC 230VAC DIN Rail RELAY GEN PURPOSE SPDT 50MA 230V SPDT DIN Rail Panel Mount Interface Relay Module, 30, 36V ac, V dc PLC relay, consisting of base terminal block PLC-BSC.../21 with screw connection and pluggable miniature relay with multi-layer contact, for assembly ... PLC relay, consisting of base terminal block PLC-BSC.../21 with screw connection and pluggable miniature relay with multi-layer contact, for assembly on DIN rail NS 35/7.5, 1 PDT, input voltage 230 V AC / 220 V DC PLCSENSORRELAYBASETERMINALBLOCK
2966333
Phoenix Contact
Industrial Relays PLC-RSC-230UC/ 1AU/SEN Electromechanical Relay SPST-NO 6A 220VDC 230VAC DIN Rail RELAY GEN PURPOSE SPST 50MA 230V Relay PLC-RSC-230UC/ 1AU/SEN PLC-RSC-230UC/1AU/SEN
2966087
Phoenix Contact
Relay Sockets & Hardware PLC-BSC-230UC/1/SEN Conn PLC Terminal Blocks F Screw 6.2MM PLC SENSOR BASIC TERM BLCK Basic terminal block PLC-BSC-230UC/ 1/SEN PLC-BSC-230UC/1/SEN
2980034
Phoenix Contact
Industrial Relays PLC-RSC 125DC/21 AU Electromechanical Relay SPDT 125VDC DIN Rail RELAY GEN PURPOSE SPDT 50MA 125V Relay PLC-RSC-125DC/21AU PLCRELAYBASICTERMINALBLOCK125VDC
2966582
Phoenix Contact
Industrial Relays PLC-RSP-120UC/21AU Electromechanical Relay SPDT 110VDC 120VAC DIN Rail RELAY GEN PURPOSE SPDT 50MA 120V Relay PLC-RSP-120UC/21AU PLC-RSP-120UC/21AU

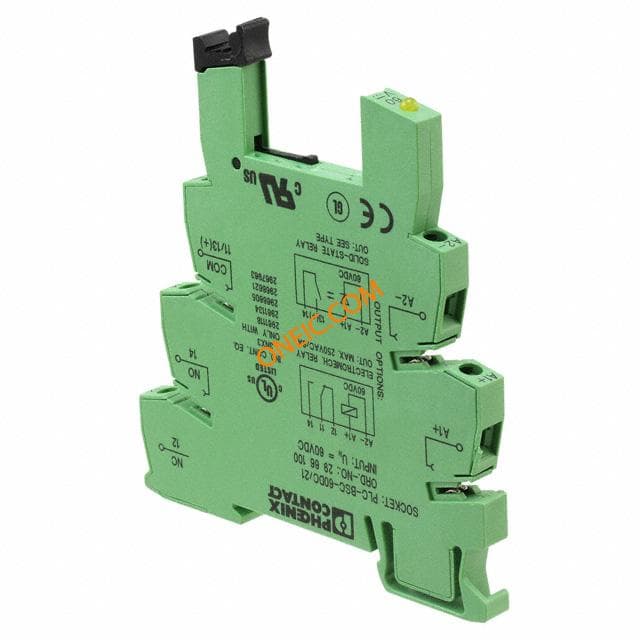

2966100
Phoenix Contact
Relay Sockets & Hardware PLC-BSC- 60DC/21 Conn PLC Terminal Blocks F Screw 6.2MM PLC BASIC TERM BLOCK Basic terminal block PLC-BSC- 60DC/21 Socket,Relay;TerminalBlock(6.2mm),(InputVoltage60VDC),ScrewTerm

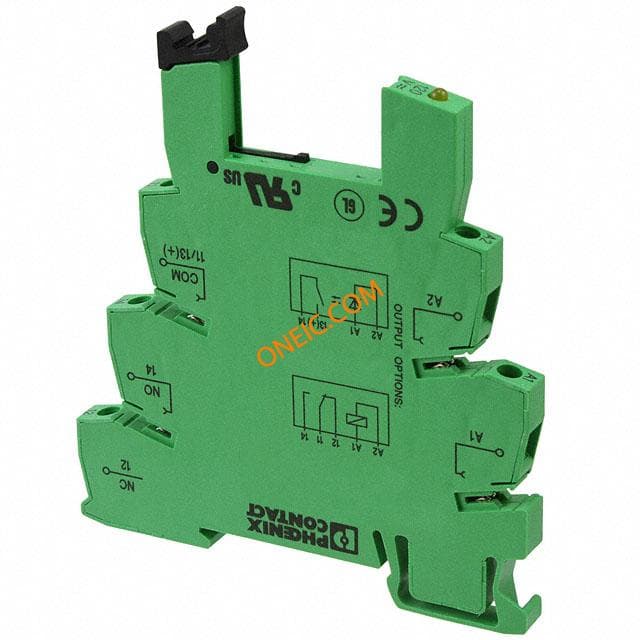

2980319
Phoenix Contact
Relay Sockets & Hardware PLC-BSC-12OUC/21SO46 Conn PLC Terminal Blocks F 8 POS 6.2mm Screw 6.2MM PLC TERM BLOCK 120V Basic terminal block PLC-BSC-120UC/21/SO46 6.2mmPLCbasicterminalblocksscrewconnectionmethod120VAC/DC

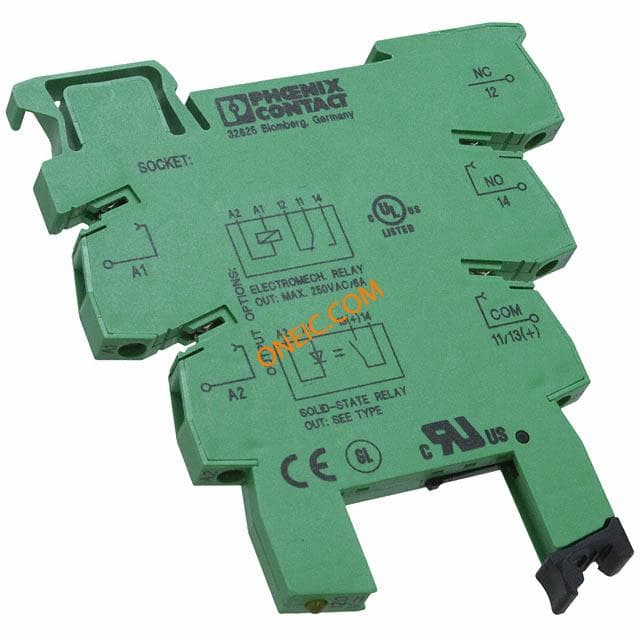

2966032
