2941154
| Manufacturer | |

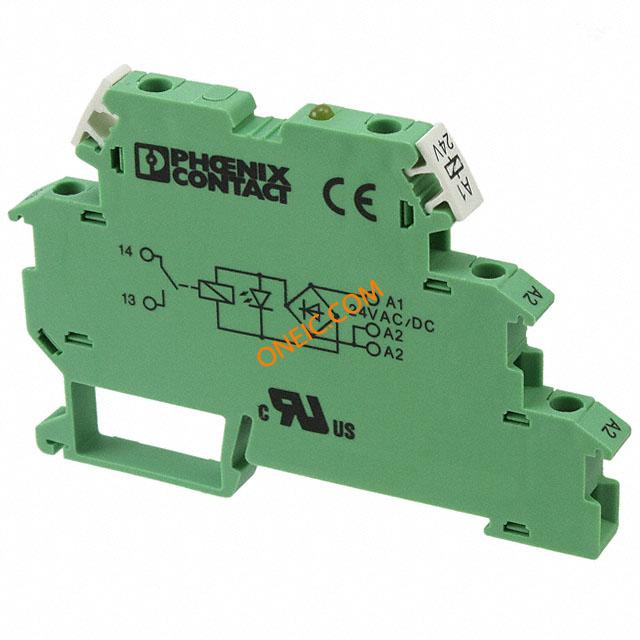

| Description | Industrial Relays 24V RELAY TERM BLOCK Relay Terminal Block, With Solderedin Miniature Relays RELAY GEN PURPOSE SPST 3A 24V Relay terminal blocks DEK-REL- 24/O/1 Relay,TerminalBlock,6.22mm,1n/0contact,24VAC/DCinputvoltage 单极常开 DIN Rail 接口继电器模块, 5A, 24V ac/dc |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | INTERFACE Relay | Product Category | Industrial Relays |
| Standard Package | 10 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Coil Type | Non Latching | Coil Current | 3 A |
| Release Time | 15ms | Turn On Time | 5ms |
| Voltage - Supply | 24 VAC, 24 VDC | Switching Voltage | 250 VAC, 125 VDC |
| Current Rating (Max) | 5A | Contact Rating (Current) | 3 A |
| Current - Input Bias (Max) | 6.5mA | ||
Mechanical
| Depth | 6.2mm | Width | 6.2 mm |
| Height | 56 mm | Length | 80 mm |
| Weight | 0.874794 oz | Packaging | Bulk |
| Contact Form | 1 Form A (SPST-NO) | Mounting Type | DIN Rail |
| Mounting Style | DIN Rail | Contact Material | Silver Nickel |
| Size / Dimension | 56 x 6.2 x 80mm | Termination Style | Screw Terminal |
| Contact Termination | Screw | Contact Layout, Typical | 单极常开 |
Product Info
| Type | Industrial Relay | Series | DEK-REL |
| Relay Type | General Purpose | Base Product Number | DEK-REL-24/O/1 |
Environmental
| Operate Time | 5ms | Operating Temperature | -20°C ~ 50°C |
