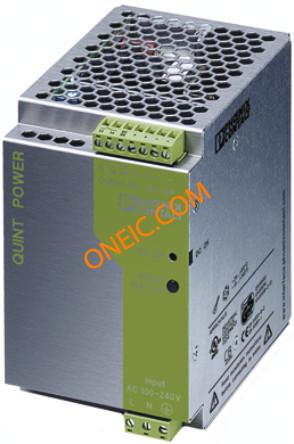

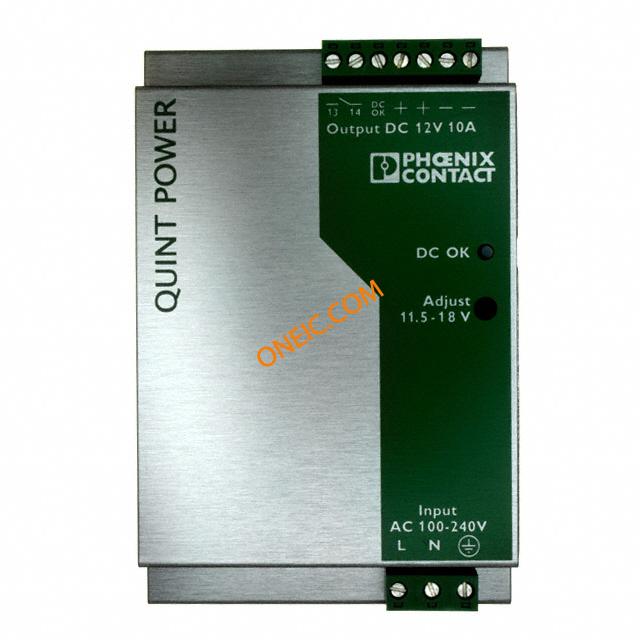

2938811
| Manufacturer | |
| Description | DIN Rail Power Supplies QUINT 12VOLT 10AMP AC/DC Power Supply Single-OUT 12V 10A PWR SUPPLY 10A 100-240AC 12VDC Din Rail Power supply, 12 V DC / 10 A Power supply unit QUINT-PS-100-240AC/12DC/10 PowerSupply;AC-DC;12V@10A;85-264VIn;Enclosed;DINRailMount;QUINTSeries Phoenix Contact QUINT 系列 开关模式 DIN 导轨和面板安装电源 , 84%效能, 264V ac输入, 10A输出, 18V dc输出 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Lead Time | 20 Days |
| Tradename | QUINT POWER | Subcategory | AC to DC Power Supply |
| Product Category | DIN Rail Power Supplies | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | CB, cUL, UL | ||
Electrical
| Noise | 30mV Pk-Pk | Output | 12VDC@10A |
| Frequency | 45to65Hz | Operation | Switching |
| Efficiency | 84% | Output Power | 120 W |
| Power (Watts) | 120W | Power - Rated | 120W |
| Power - Output | 120W | Voltage Rating | 85 → 264 V ac, 90 → 350 V dc |
| Current - Output | 12 VDC @ 10A | Phase Difference | 1 |
| Voltage - Supply | 交流 | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 120W |
| Voltage - Isolation | 2 kV | Current Rating (Max) | 10A |
| Voltage - Input (Min) | 12V | Voltage - Output (Max) | 18V 直流 |
| Current - Output / Channel | 10 A | Voltage - Output (Min/Fixed) | 11.5V 直流 |

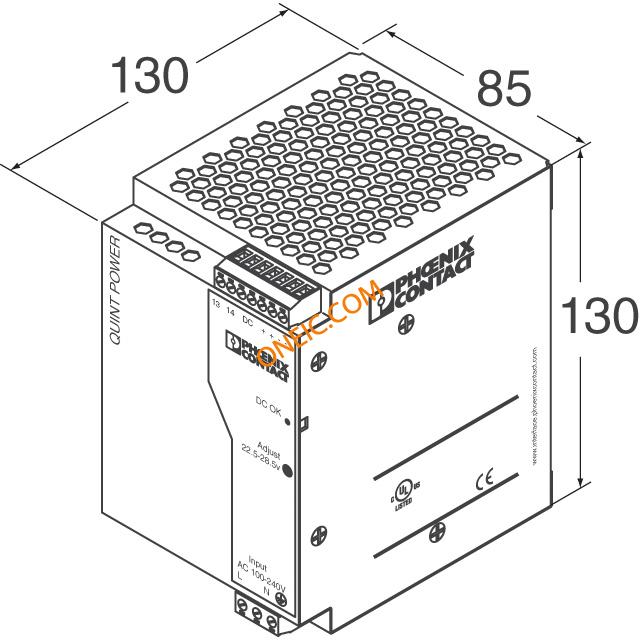

Mechanical
| Depth | 130mm | Width | 85mm |
| Height | 130mm | Length | 130mm |
| Weight | 1.3kg | Mounting Type | DIN Rail |
| Mounting Style | DIN Rail | Panel Mount Type | Enclosed |
| Primary Material | AC-DC | Size / Dimension | 5.12" L x 3.35" W x 5.12" H (130.0mm x 85.0mm x 130.0mm) |
Product Info
| Type | Switching | Style | Enclosed |
| Series | QUINT-PS | Features | ReliableStartupofHeavyLoadsDuetoPowerBoost |
| Application | Commercial | Applications | Commercial |
| Manufacturer | QUINTSeries | Configuration | Enclosed |
| Industry Aliases | QUINT-PS-100-240AC/12DC/10 | Base Product Number | QUINT-PS-100-240AC/12DC/10 |
| For Use With/Related Products | 2866718 | ||
Environmental
| Operate Time | 500000h | Operational Life | 500000h |
| Operating Temperature | -25°C ~ 70°C | Maximum Temperature Limit | +70°C |
| Operating Temperature - Junction | 70°C | ||
