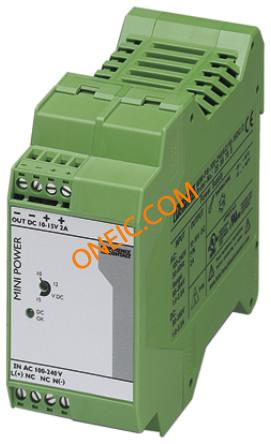

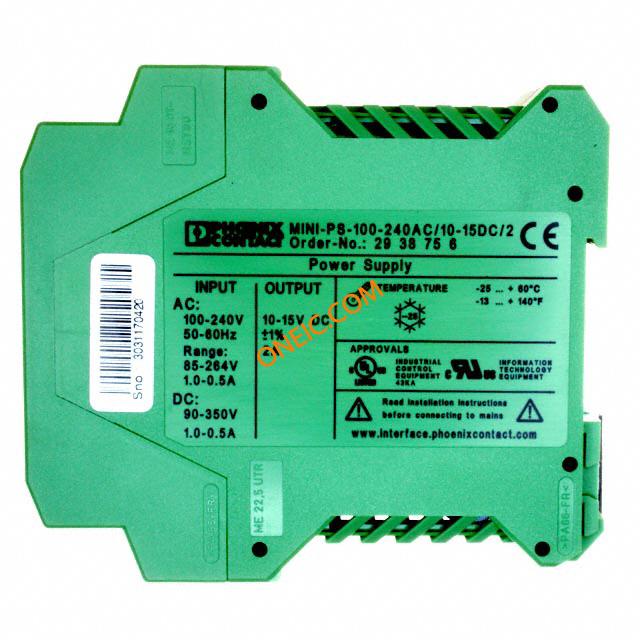

2938756
| Manufacturer | |
| Description | DIN Rail Power Supplies MINI 10-15VOLT 2AMP AC/DC Power Supply Triple-OUT 12V/10V/15V 2A/2A/2A PWR SUPPLY 2A 100-240AC 10-15VDC MINI-PS-100-240AC/10-15DC/2 PowerSupply;AC-DC;12.5V@2A;85-264VIn;Enclosed;DINRailMount;MINISeries Phoenix Contact MINI 系列 开关模式 DIN 导轨和面板安装电源, 2A输出 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Lead Time | 20 Days |
| Tradename | MINI POWER | Subcategory | AC to DC Power Supply |
| Part # Aliases | MINI-PS-100-240AC/10-15DC/2 | Product Category | DIN Rail Power Supplies |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | cUL, UL | ||
Electrical
| Noise | 20mV Pk-Pk | Output | 12.5VDC@2A |
| Frequency | 45 to 65 | Operation | Switching |
| Efficiency | 85% | Output Power | 24 W |
| Power (Watts) | 30W | Power - Rated | 30W |
| Power - Output | 25W | Voltage Rating | 85 → 264 V ac, 90 → 350 V dc |
| Current - Output | 10 ~ 15 VDC @ 2A | Voltage - Supply | 交流 |
| Number of Outputs | 3 | Power Supply Type | Switching (Closed Frame) |
| Voltage - Output 3 | 15 V | Power (Watts) - Max | 30W |
| Voltage - Isolation | 4 kV | Current Rating (Max) | 2 A |
| Voltage - Input (Min) | 10 ~ 15V | Voltage - Output (Max) | 15V 直流 |
| Current - Output / Channel | 2 A | Voltage - Output (Min/Fixed) | 10V 直流 |
Mechanical

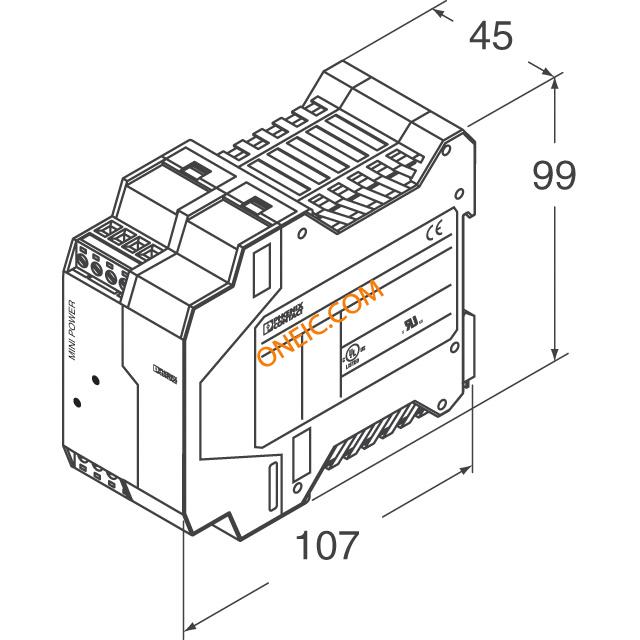

| Depth | 99mm | Width | 45mm |
| Length | 107mm | Weight | 0.25kg |
| Mounting Type | DIN Rail | Mounting Style | DIN Rail |
| Panel Mount Type | Enclosed | Primary Material | AC-DC |
| Size / Dimension | 4.21" L x 1.77" W x 3.90" H (107.0mm x 45.0mm x 99.0mm) | ||
Product Info
| Type | Switching | Style | Enclosed |
| Series | MINI-PS | Features | ReliableStartupofHeavyLoadsDuetoPowerBoost |
| Application | Commercial | Applications | Commercial |
| Manufacturer | MINISeries | Configuration | Enclosed |
| Industry Aliases | MINI-PS-100-240AC/10-15DC/2 | Base Product Number | MINI-PS-100-240AC/10-15DC/2 |
Environmental
| Operate Time | 500000h | Operational Life | 500000h |
| Operating Temperature | -25°C ~ 70°C | Maximum Temperature Limit | +70°C |
