2938594
| Manufacturer | |

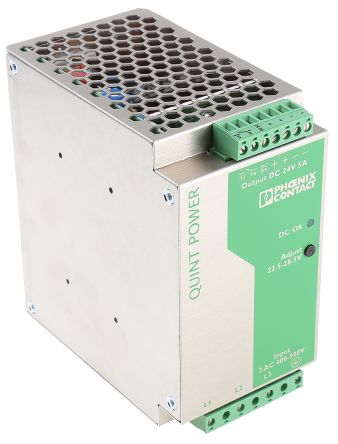

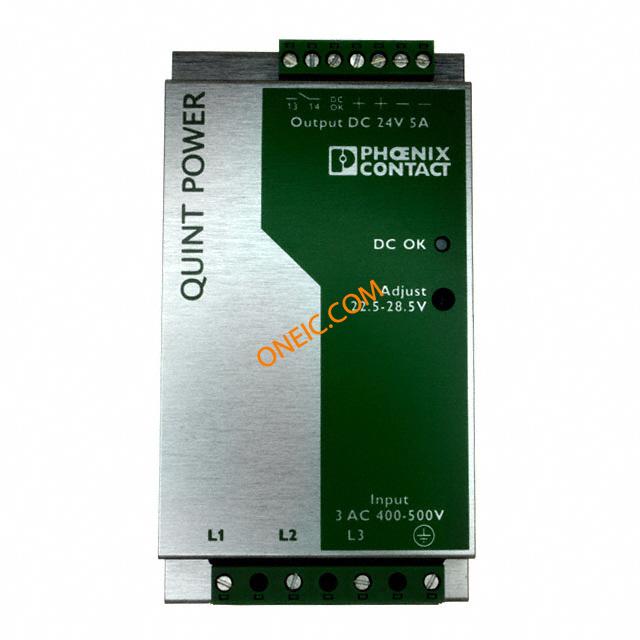

| Description | DIN Rail Power Supplies QUINT 3-PHASE 24V/5A DIN RAIL POWER SUPPLY UNIT 24 V DC/5 A, PRIMARY SWITCHED-MODE, 3-PHASE. POWER SUPPLY 5A 3X400-500AC 24DC POWER SUPPLY Power Supply 7-Pin PowerSupply;AC-DC;24V@5A;320-575V3PhIn;Enclosed;DINRailMnt;QUINTSeries Phoenix Contact QUINT 系列 开关模式 DIN 导轨和面板安装电源 , 88%效能, 575V ac输入, 5A输出, 28.5V dc输出 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Lead Time | 28 Days |
| Tradename | QUINT POWER | Subcategory | Power Misc |
| Product Category | DIN Rail Power Supplies | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | ABS, CB, cUL, DNV, GL, GOST, UL | ||
Electrical
| Noise | 10mV Pk-Pk | Output | 24VDC@5A |
| Frequency | 45to65Hz | Operation | Switching |
| Efficiency | 88% | Output Power | 120 W |
| Power (Watts) | 120W | Power - Rated | 120W |
| Power - Output | 120W | Voltage Rating | 320 → 575 V ac, 450 → 800 V dc |
| Line Regulation | ±0.1% | Load Regulation | ±1% |
| Current - Output | 24 VDC @ 5A | Phase Difference | 3 |
| Voltage - Supply | 575V 交流 | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 120W |
| Voltage - Isolation | 4 kV | Current Rating (Max) | 5A |
| Voltage - Input (Min) | 24V | Voltage - Output (Max) | 28.5V 直流 |
| Voltage Regulation - Load | ±1% | Current - Output / Channel | 5 A |
| Voltage - Output (Min/Fixed) | 22.5V 直流 | ||
Mechanical

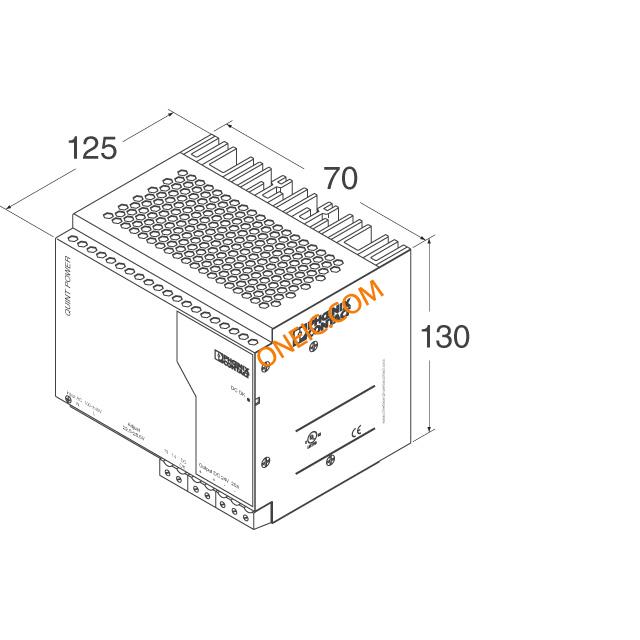

| Depth | 130mm | Width | 70mm |
| Height | 130mm | Length | 125mm |
| Weight | 0.95kg | Mounting Type | DIN Rail |
| Mounting Style | DIN Rail | Panel Mount Type | Enclosed |
| Primary Material | AC-DC | Size / Dimension | 4.92" L x 2.76" W x 5.12" H (125.0mm x 70.0mm x 130.0mm) |
| Number of Positions | 7 | ||
Product Info
| Type | Standard Product | Series | QUINT-PS |
| Features | Idling-ProofandShort-CircuitProof | Application | Commercial |
| Applications | Commercial | Manufacturer | QUINTSeries |
| Configuration | Enclosed | Industry Aliases | QUINT-PS-3X400-500AC/24DC/5 |
| Base Product Number | QUINT-PS-3X400-500AC/24DC/5 | Printed Circuit Board | 7 |
| For Use With/Related Products | 2866734 | ||
Environmental
| Operate Time | 500000h | Operational Life | 500000h |
| Operating Temperature | -25°C ~ 70°C | Maximum Temperature Limit | +70°C |
| Operating Temperature - Junction | +70°C(Ambient) | ||
