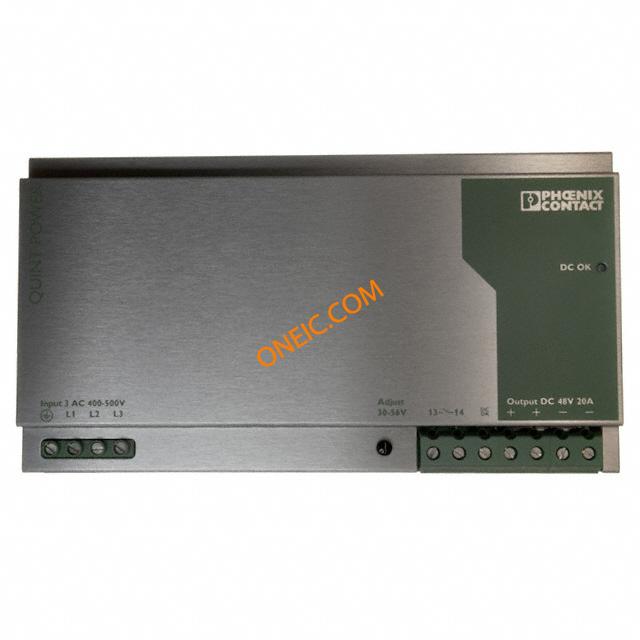

2938222
| Manufacturer | |
| Description | 3-PHASE POWER SUPPLY, PRIMARY SWITCH MODE FOR UNIVERSAL USE POWR SUPPLY 20A 3X400-500AC 48DC QUINT-PS-3X400-500AC/48DC/20 DIN Rail Power Supplies QUINT 48VOLT 20AMP 3 PHASE Power Supply 11-Pin PowerSupply;AC-DC;48V@20A;320-575V3PhIn;Enclosed;DINRailMnt;QUINTSeries |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Lead Time | 28 Days |
| Tradename | QUINT POWER | Subcategory | Power Misc |
| Product Category | DIN Rail Power Supplies | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | CB, cUL, UL | ||
Electrical
| Noise | 20mV Pk-Pk | Output | 48VDC@20A |
| Current | 15A(Surge) | Frequency | 45to65Hz |
| Operation | Switching | Efficiency | 90% |
| Output Power | 960 W | Power (Watts) | 960W |
| Power - Rated | 960W | Power - Output | 960W |
| Voltage Rating | 320 → 575 V ac, 450 → 800 V dc | Current - Output | 48 VDC @ 20A |
| Phase Difference | 3 | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 960W |
| Voltage - Isolation | 3 kV | Current Rating (Max) | 20A |
| Voltage - Input (Min) | 48V | Current - Output / Channel | 20 A |
Mechanical
| Depth | 130mm | Width | 125mm |
| Height | 130mm | Length | 240mm |
| Weight | 3.5kg | Mounting Type | DIN Rail |
| Mounting Style | DIN Rail | Length - Overall | 240 |
| Panel Mount Type | Enclosed | Primary Material | AC-DC |
| Size / Dimension | 5.12" L x 9.45" W x 5.12" H (130.0mm x 240.0mm x 130.0mm) | Number of Positions | 11 |
| Shell Size - Insert | 125 | ||
Product Info
| Type | Standard Product | Series | QUINT-PS |
| Features | ReliableStartupofHeavyLoads | Application | Commercial |
| Applications | Commercial | Manufacturer | QUINTSeries |
| Configuration | Enclosed | Industry Aliases | QUINT-PS-3x400-500AC/48DC/20 |
| Base Product Number | QUINT-PS-3x400-500AC/48DC/20 | Printed Circuit Board | 11 |
Environmental
| Operate Time | 500000h | Operating Temperature | -25°C ~ 70°C |
| Maximum Temperature Limit | +70°C | Operating Temperature - Junction | +70°C(Ambient) |
