2917492
| Manufacturer | |

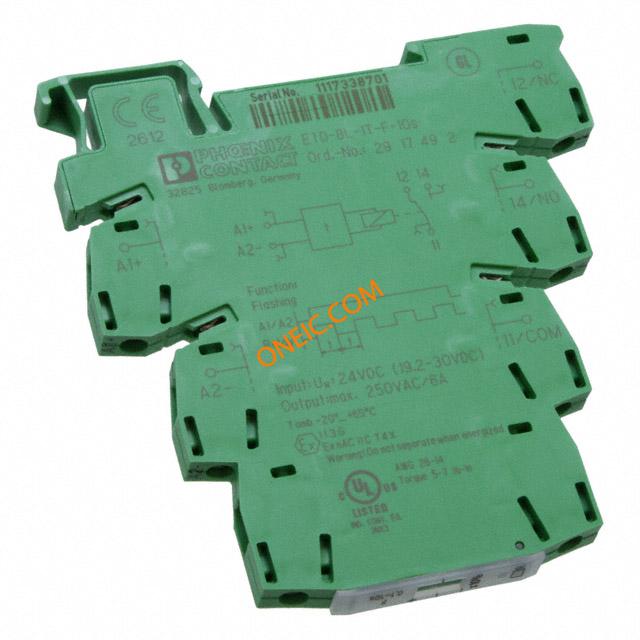

| Description | Time Delay & Timing Relays ETD-BL-1T-F- 10S Electromechanical Relay SPDT 6.3A 24VDC DIN Rail RELAY TIMER SPDT 24VDC FLASHER Time Delay Relay Phoenix Contact 2917492, 3 to 300min Spring Clamp SPDT RELAY;E-MECH;TIMING;FLASHER;SPDT;CUR-RTG6.3A;CTRL-V24DC;DINRAILMNT;.1-10SEC |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 12 Days | Tradename | INTERFACE Monitoring |
| Subcategory | Electromechanical Relay | Product Category | Time Delay & Timing Relays |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Circuit | SPDT (1 Form C) | Delay Time | 0.1 Sec ~ 10 Sec |
| Timer Type | Flasher | Output Type | Mechanical Relay |
| Range deg/s | 0.1 s to 10 s | Operating Mode | Flash Start with Pulse |
| Visible Output | Yes | Voltage Rating | 19.2-30VDC |
| Pushing (MHz/V) | No | Voltage - Supply | 24 VDC |
| Power Supply Type | External | Voltage - Clamping | 19.2VDC |
| Diode Configuration | No | Current Rating (Max) | 6.3 A |
| Switch Function/Rating | SPDT | Timing Initiate Method | Input Voltage |
| Contact Rating @ Voltage | 6A @ 250VAC | Drive Voltage (Max Rds On, Min Rds On) | 24VDC |
Mechanical
| Seal | Unsealed | Depth | 86mm |
| Width | 6.2mm | Height | 80 |
| Length | 80mm | Termination | Screw |
| Contact Form | 1 Form C (SPDT-BM) | Mounting Type | DIN Rail |
| Terminal Type | Spring Clamp | Mounting Style | DINRail |
| Length - Overall | 6.2 | Termination Style | Screw |
| Number of Contacts | 1 | Contact Layout, Typical | SPDT |
Product Info
| Type | Timer Relay | Function | Flasher |
| Relay Type | Time Delay | Manufacturer | ETD |
| Number of Macrocells | Single | Timing Adjustment Method | Screwdriver Slot |
Environmental
| Operating Range | 3 → 300 min | Operating Temperature | +60°C |
