2869773
| Manufacturer | |

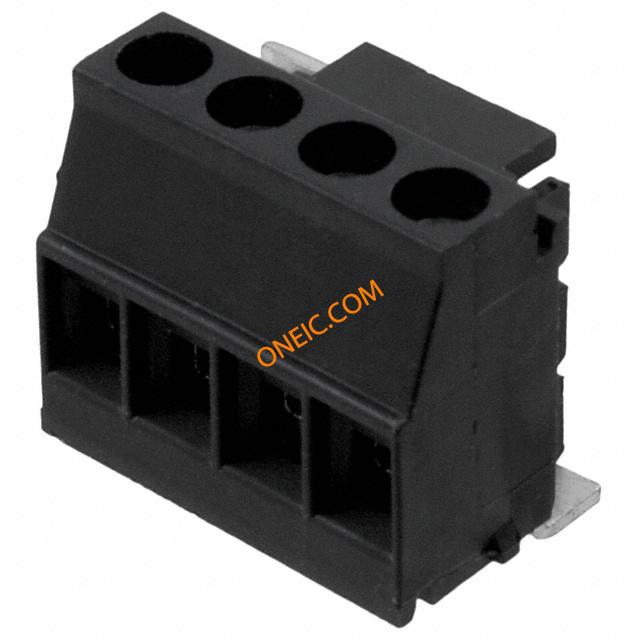

| Description | 固定ターミナルブロック MKDSO 2.5/ 4-L BK Conn PC Terminal Block Solder 24A PC TERMINAL BLOCK 24A 320V BLACK Fixed Terminal Blocks MKDSO 2.5/ 4-L BK MKDSO25/4-LBK |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Fixed Terminal Blocks | Product Category | Fixed Terminal Blocks |
| Standard Package | 1 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 20A | Voltage | 300V |
| Voltage Rating | 320 V | Current Rating (Max) | 24 A |
| Voltage - Input (Min) | 400V | ||
Mechanical
| Color | Black | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Wire Gauge | 12-30 AWG |
| Termination | Solder | Screw Thread | M3 |
| Mounting Type | Through Hole | Torque - Screw | 0.5-0.6 Nm (4.4-5.3 Lb-In) |
| Wire Termination | Screw - Rising Cage Clamp | Mating Orientation | Horizontal with Board |
| Wire Gauge or Range - mm2 | 12 | ||
Product Info
| Type | PC Terminal Block | Number of Levels | 1 |
| Positions Per Level | 4 | ||
