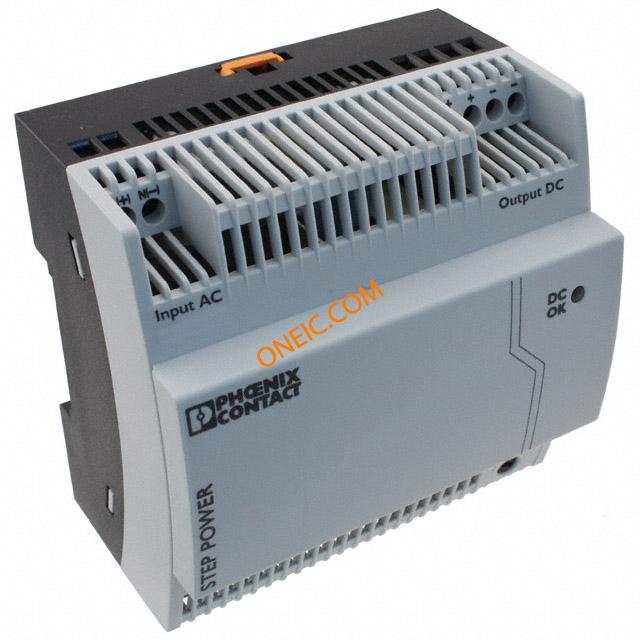

2868664
| Manufacturer | |
| Description | DIN Rail Power Supplies STEP-PS/1AC/24DC/4.2 24VDC 4.2A AC/DC Power Supply Single-OUT 24V 4.2A 6-Pin POWER SUPPLY STEP 4.2A 24DC STEP-PS/1AC/24DC/4 PowerSupply;AC-DC;24V@4.2A;85-264VIn;Enclosed;DINRailMount;STEPSeries Phoenix Contact STEP 系列 开关模式 DIN 导轨和面板安装电源, 4.2A输出 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Lead Time | 28 Days |
| Tradename | STEP POWER | Subcategory | AC to DC Power Supply |
| Product Category | DIN Rail Power Supplies | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | CB, cUL, UL | ||
Electrical
| Noise | 40mV Pk-Pk | Output | 24VDC@4.2A |
| Frequency | 45 to 65 | Operation | Switching |
| Efficiency | 88% | Output Power | 101 W |
| Power (Watts) | 100W | Power - Output | 100.8W |
| Voltage Rating | 85 → 264 V ac, 95 → 250 V dc | Line Regulation | ±0.1% |
| Load Regulation | ±1% | Current - Output | 24 VDC @ 4.2A |
| Phase Difference | 1 | Voltage - Supply | 264V 交流 |
| Number of Outputs | 1 | Power Supply Type | Switching (Closed Frame) |
| Power (Watts) - Max | 100.8W | Voltage - Isolation | 2000VAC |
| Current Rating (Max) | 4.2 A | Voltage - Input (Min) | 24V |
| Voltage - Output (Max) | 29.5V 直流 | Voltage Regulation - Load | ±1% |
| Current - Output / Channel | 4.2 A | Voltage - Output (Min/Fixed) | 22.5V 直流 |
Mechanical

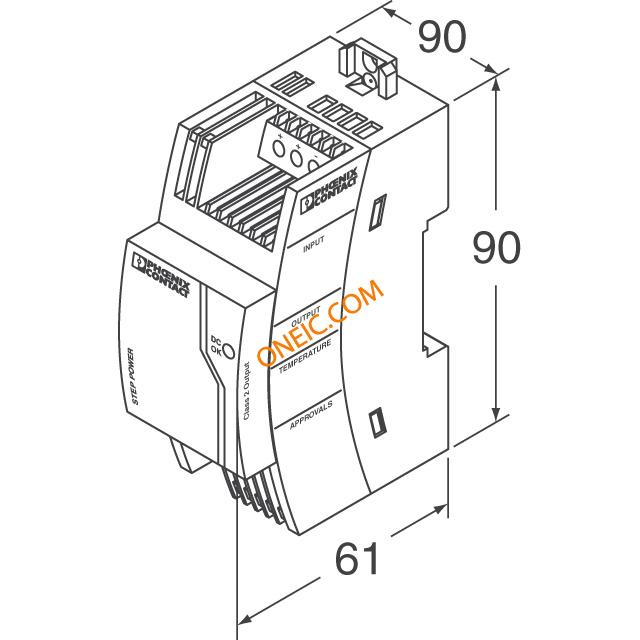

| Depth | 90mm | Width | 61mm |
| Length | 90mm | Weight | 0.4kg |
| Mounting Type | DIN Rail | Mounting Style | DIN Rail |
| Panel Mount Type | Enclosed | Primary Material | AC-DC |
| Size / Dimension | 2.40" L x 3.54" W x 3.54" H (61.0mm x 90.0mm x 90.0mm) | Number of Positions | 6 |
Product Info
| Type | Switching | Style | DIN Rail |
| Series | STEP-PS | Features | HighMTBF>500000H |
| Application | Commercial | CAD Drawing | 3D CAD 模型 |
| Applications | Commercial | Manufacturer | STEPSeries |
| Configuration | Enclosed | Measuring Range | 阶跃电源 |
| Industry Aliases | STEP-PS/1AC/24DC/4.2 | Base Product Number | STEP-PS/1AC/24DC/4.2 |
Environmental
| Operate Time | 500000h | Operational Life | 500000h |
| Operating Temperature | -25°C ~ 70°C | Maximum Temperature Limit | +70°C |
