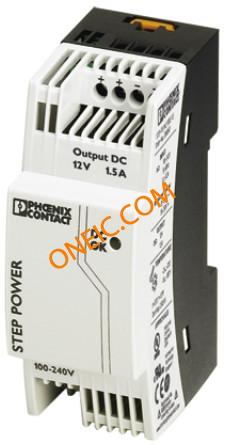

2868567
| Manufacturer | |
| Description | DIN Rail Power Supplies STEP-PS/1AC/12DC/1.5 12VDC 1.5A AC/DC Power Supply Single-OUT 12V 1.5A 6-Pin POWER SUPPLY STEP 1.5A 12DC STEP-PS/1AC/12DC/1.5 DIN RAIL POWER SUPPLY UNIT 12 V DC/1.5 A PRIMARY SWITCHED-MODE 1- PHASE PowerSupply;AC-DC;12V@1.5A;135-264VIn;Enclosed;DINRailMount;STEPSeries Phoenix Contact STEP 系列 开关模式 DIN 导轨和面板安装电源, 1.5A输出 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Switching Supplies | Lead Time | 28 Days |
| Tradename | STEP POWER | Subcategory | AC to DC Power Supply |
| Product Category | DIN Rail Power Supplies | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | ABS, cUL, GL, UL | ||
Electrical
| Noise | 75mV Pk-Pk | Output | 12VDC@1.5A |
| Frequency | 45 to 65 | Operation | Switching |
| Efficiency | 84% | Power - Max | 18W |
| Output Power | 18 W | Power (Watts) | 18W |
| Power - Input | Switching (Closed Frame) | Power - Output | 18W |
| Voltage Rating | 85 → 264 V ac, 95 → 250 V dc | Line Regulation | ±0.1% |
| Load Regulation | ±1% | Current - Output | 12 VDC @ 1.5A |
| Phase Difference | 1 | Voltage - Supply | 12V |
| Number of Outputs | 1 | Power Supply Type | Switching (Closed Frame) |
| Power (Watts) - Max | 18W | Voltage - Isolation | 2000VAC |
| Current Rating (Max) | 12 VDC @ 1.5A | Voltage - Input (Min) | 12V |
| Voltage - Output (Max) | 12V 直流 | Voltage Regulation - Load | ±1% |
| Current - Output / Channel | 1.5 A | Voltage - Output (Min/Fixed) | 12V 直流 |
Mechanical
| Size | 2.40" L x 1.42" W x 3.54" H (61.0mm x 36.0mm x 90.0mm) | Depth | 90mm |
| Width | 36mm | Length | 61mm |
| Weight | 0.1kg | Mounting Type | DIN Rail |
| Mounting Style | DIN Rail | Length - Overall | 90 |
| Panel Mount Type | Enclosed | Primary Material | AC-DC |
| Size / Dimension | 2.40" L x 1.42" W x 3.54" H (61.0mm x 36.0mm x 90.0mm) | Number of Positions | 6 |
| Shell Size - Insert | 36 | ||
Product Info
| Type | Switching | Style | DIN Rail |
| Series | STEP-PS | Features | HighMTBF>500000H |
| Application | Commercial | CAD Drawing | 3D CAD 模型 |
| Applications | Commercial | Manufacturer | STEPSeries |
| Configuration | Enclosed | Industry Aliases | STEP-PS/1AC/12DC/1.5 |
| Base Product Number | STEP-PS/1AC/12DC/1.5 | Output Configuration | DIN Rail |
| Printed Circuit Board | 6 | ||
Environmental
| Operate Time | 500000h | Operational Life | 500000h |
| Operating Temperature | -25°C ~ 70°C | Maximum Temperature Limit | +70°C |
