2859547
| Manufacturer | |

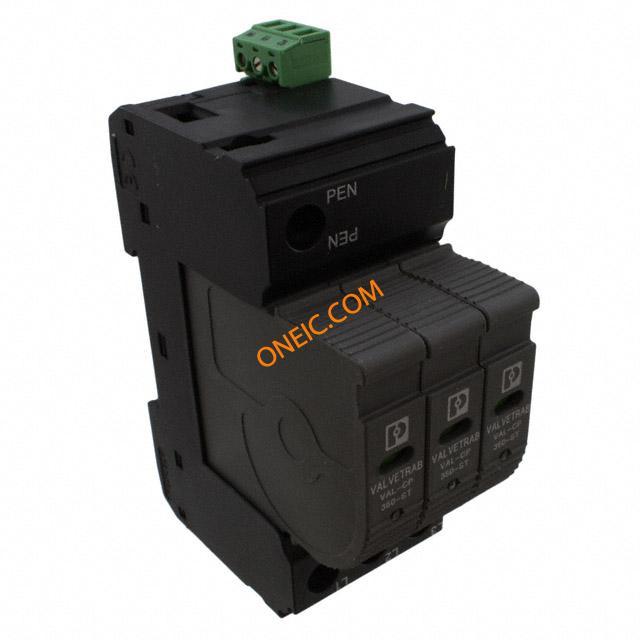

| Description | Surge Suppressors VAL-CP-3C-350 4 WIRE SYS 277/480 SURGE SUPPRESSORS SURGE ARRESTER PLUGGABLE 36MM Surgeprotectionfor4wiresystems,350VAC230/400and240/415Vpowersystems Backup fuse:125A; Protection type: surge arrestor; Mounting: DIN |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 20 Days | Tradename | VALVETRAB Compact |
| Subcategory | Surge Arrestor | Standard Pack | 1 |
| Product Category | Surge Suppressors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Protection | 1,4kV (L-N) | Protection Features | surge arrestor |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Response Time | 25ns (L-N) | Voltage - Max | 1,1kV (L-N) |
| Voltage Rating | 240 V / 415 V | Current - Surge | 60kA |
| Voltage - Supply | 240/415VAC | Voltage - Clamping | ≤0.9kV |
| Current Rating (Max) | 40 A | Voltage - DC Spark Over (Nom) | 350V |
| Impulse Discharge Current (8/20us) | 20kA | Voltage - Continuous Operating (Max) (MCOV) | 250/125VAC/VDC |
Mechanical
| Width | 37.25 mm | Length | 98.5 mm |
| Weight | 10.624165 oz | Packaging | Bulk |
| Wire Gauge | 28-16AWG | Termination | Screw |
| Mounting Type | DIN Rail | Mounting Style | DINRail |
| Package / Case | Module, Plug-In Terminal Block | Primary Material | SurgeSuppressor |

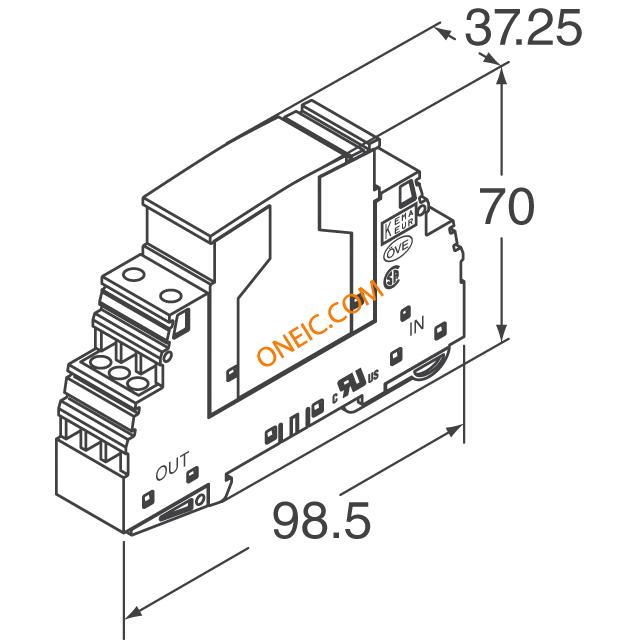

| Size / Dimension | 98.5L×37.25W×70Hmm | Termination Style | Screw |
| Cross Section Shape | 25mm2 | Material - Housing & Prism | thermoplastic |
Product Info
| Type | Three-Phase | Class | II |
| Series | VAL-CP | Fuse Type | 125A |
| Schematic | see | Manufacturer | VALVETRAB |
| Number of Units | 1 | Industry Aliases | VAL-CP-3C-350 |
| Network Technology | TN-C | Base Product Number | VAL-CP-3C-350 |
| For Use With/Related Products | IndustrialEquipment | ||
Environmental
| Ingress Protection | IP20 | Operating Temperature | - 40 C to + 80 C |
