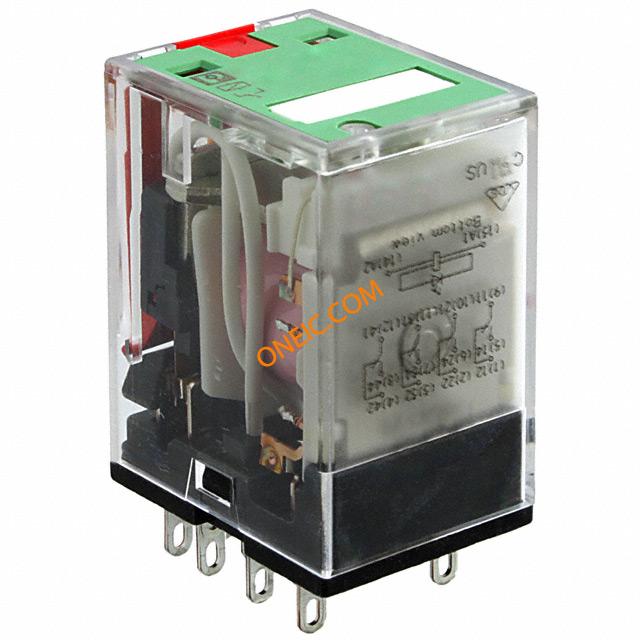

2834135
| Manufacturer | |
| Description | Industrial Relays REL-IR/L-120A C/4X21 AU Electromechanical Relay 4PDT 5A 120VAC 4.43KOhm Plug-In RELAY GEN PURPOSE 4PDT 5A 120V PLUGGABLEINDUSTRIALRELAYCOIL120VAC |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 28 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | Industrial Relays |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Coil Type | Non Latching | Coil Current | 11 mA, 9 mA |
| Release Time | 12ms | Power - Rated | 1.25kVA |
| Visible Output | No | Voltage Rating | 250 |
| Coil Resistance | 4.43 kOhms | Pushing (MHz/V) | Yes |
| Voltage - Supply | 120 VAC | Switching Voltage | 250 VAC, 250 VDC |
| Diode Configuration | No | Current Rating (Max) | 5 |
| Voltage - Input (Min) | 250 | Contact Rating (Current) | 5 A |
Mechanical
| Seal | Unsealed | Depth | 28 |
| Height | 36 | Weight | 1.303020 oz |
| Packaging | Bulk | Contact Form | 4 Form C (4PDT) |
| Mounting Type | Plug-In | Mounting Style | Plug In |
| Package Cooled | Dust Cover | Contact Material | Silver Nickel |
| Length - Overall | 21.5 | Termination Style | Solder Lug |
| Number of Contacts | 14 | Contact Termination | Plug In |
| Contact Layout, Typical | 4PDT | ||
Product Info
| Type | Industrial Relay | Series | REL-IR |
| Relay Type | Non-Latching | Industry Aliases | REL-IR/L-120AC/4X21 AU |
Environmental
| Operate Time | 10ms | Operating Temperature | -55°C ~ 70°C |
