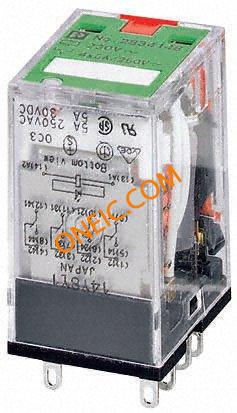

2834122
| Manufacturer | |
| Description | Industrial Relays REL-IR/L-24AC /4X21 AU Electromechanical Relay 4PDT 12A 24VAC 180Ohm Plug-In RELAY GEN PURPOSE 4PDT 5A 24V INDUST.REL.,4 PDT,24V AC,AU REL-IR/L-24AC/4X21AU |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 12 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | Industrial Relays |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Coil Type | Non Latching | Coil Current | 46mA |
| Release Time | 12ms | Power - Rated | 1.25kVA |
| Visible Output | Yes | Voltage Rating | 250 |
| Coil Resistance | 180 Ohms | Pushing (MHz/V) | Yes |
| Voltage - Supply | 24 V | Switching Voltage | 250VAC, 250VDC - Max |
| Current - Switching | 12 A | Diode Configuration | Yes |
| Current Rating (Max) | 12 | Power - Output Surge | 1250 VA |
| Voltage - Input (Min) | 250 | Voltage - Switching DC | 250V dc |
| Contact Rating (Current) | 5A | ||
Mechanical
| Seal | Unsealed | Depth | 36mm |
| Height | 28mm | Length | 21.5mm |
| Weight | 1.263866 oz | Packaging | Bulk |
| Contact Form | 4PDT | Mounting Type | Plug-In |
| Terminal Type | Through Hole | Mounting Style | Plug In |
| Package Cooled | Dust Cover | Contact Material | Silver Nickel |
| Length - Overall | 28 | Termination Style | Solder Lug |
| Number of Contacts | 14 | Contact Layout, Typical | 4PDT |
Product Info
| Type | General Purpose Relay | Series | REL-IR |
| Relay Type | Non-Latching | Industry Aliases | REL-IR/L-24AC/4X21 AU |
| Application Specifics | Power | ||
Environmental
| Operate Time | 10ms | Operating Temperature | -55°C ~ 70°C |
