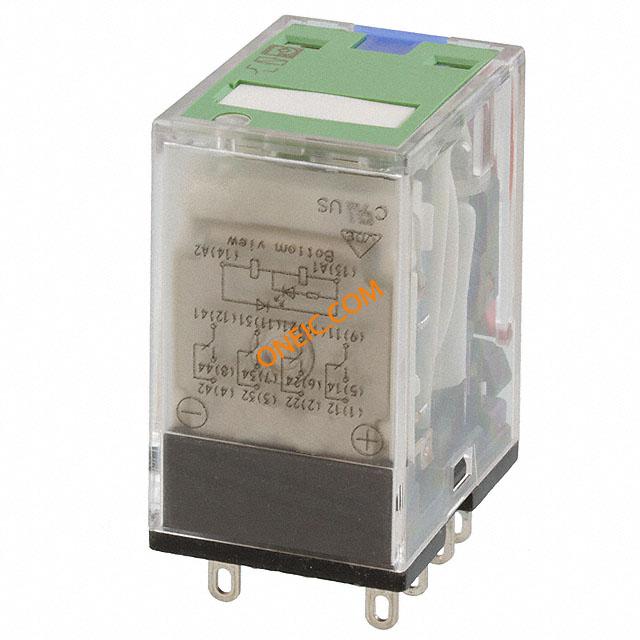

2834096
| Manufacturer | |
| Description | Industrial Relays REL-IR/LDP-24 DC/4X21AU Electromechanical Relay 4PDT 5A 24VDC 636Ohm Plug-In RELAY GEN PURPOSE 4PDT 5A 24V INDUST.REL.,2 PDT,24V DC,AU RELAY, 24VDC, 5A, 4PDT, PLUG IN PLUGGABLEINDUSTRIALRELAYCOIL24VDC |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 28 Days | Tradename | INTERFACE Relay |
| Subcategory | Electromechanical Relay | Product Category | Industrial Relays |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85364190 |
Electrical
| Coil Type | DC | Range deg/s | :- |
| Coil Current | 38 mA | Release Time | 5ms |
| Power - Rated | 1.25kVA | Visible Output | No |
| Voltage Rating | 250 | Coil Resistance | 636 Ohms |
| Pushing (MHz/V) | No | Current - Output | :5A |
| Voltage - Supply | 24 VDC | Switching Voltage | 250VAC, 250VDC - Max |
| Current - Switching | 12 A | Diode Configuration | No |
| Current Rating (Max) | 5 | Power - Output Surge | 1250 VA |
| Contact Voltage (Max) | :250V | Current - Max/Contact | :5A |
| Voltage - Input (Min) | 250 | Voltage - Switching DC | 250V dc |
| Power - Average Forward | :1250VA | Contact Rating (Current) | 5A |
| Voltage - Supply, Digital | :250V | Voltage - Supply (Vcc/Vdd) | :250V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Seal | Unsealed | Depth | 36mm |
| Width | 21.5 mm | Height | 28 mm |
| Length | 36 mm | Weight | 1.360164 oz |
| Packaging | Bulk | Contact Form | 4PDT |
| Height (Max) | :28mm | Mounting Type | Plug-In |
| Terminal Type | Through Hole | Mounting Style | Plug In |
| Package Cooled | Dust Cover | Contact Material | Silver Nickel |
| Length - Overall | 21.5 | Termination Style | Solder Lug |
| Number of Contacts | 14 | Contact Termination | Plug In |
| Contact Layout, Typical | 4PDT | ||
Product Info
| Type | Industrial Relay | Series | REL-IR |
| Relay Type | Non-Latching | Industry Aliases | REL-IR/LDP-24DC/4X21AU |
| Application Specifics | Power | ||
Environmental
| Operate Time | 13ms | Operating Temperature | -55°C ~ 70°C |
