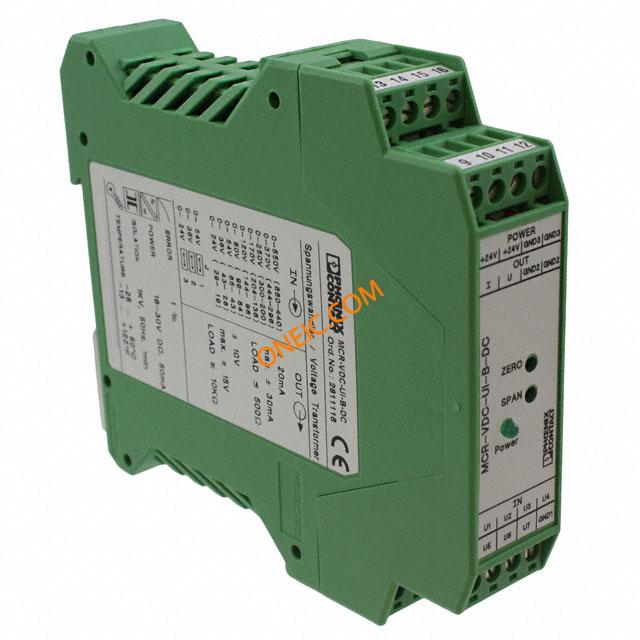

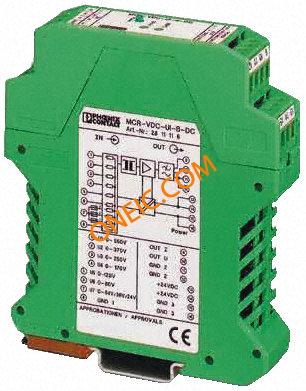

2811116
| Manufacturer | |
| Description | Interface Modules MCR-VDC-UI-B-DC Transducer MCR Voltage Measuring Transducer VOLT MEASURING TRANS 20-660VDC MCR-VDC volt transducer,+/-10V o/p MCRVOLTAGEMEASURINGTRANSDUCER |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Interface Modules | Tradename | INTERFACE Monitoring |
| Part # Aliases | MCR-VDC-UI-B-DC | Product Category | Interface Modules |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Input Type | Resistance, Voltage | Input Range | 550 kΩ, -550 → 550 V dc |
| Output Type | Analogue | Output Range | 0 → 10 V, 0 → 20 mA |
| Voltage Rating | 18.5 VDC to 30.2 VDC | Voltage - Supply | 18.5 → 30.2 V dc |
| Signal Conditioning | Filter | Current Rating (Max) | 50 mA |
Mechanical
| Color | Green | Width | 22.5 mm |
| Height | 99 mm | Length | 114.5 mm |
| Weight | 4.776094 oz | Mounting Type | DIN Rail |
| Mounting Style | DIN Rail | Housing Material | Polyamide (PA) |
| Termination Style | Screw | Wire Gauge or Range - AWG | 24-14 |
Product Info
| Type | Voltage Measuring Transducer | Series | MCR |
Environmental
| Operating Temperature | - 25 C to + 50 C | ||
