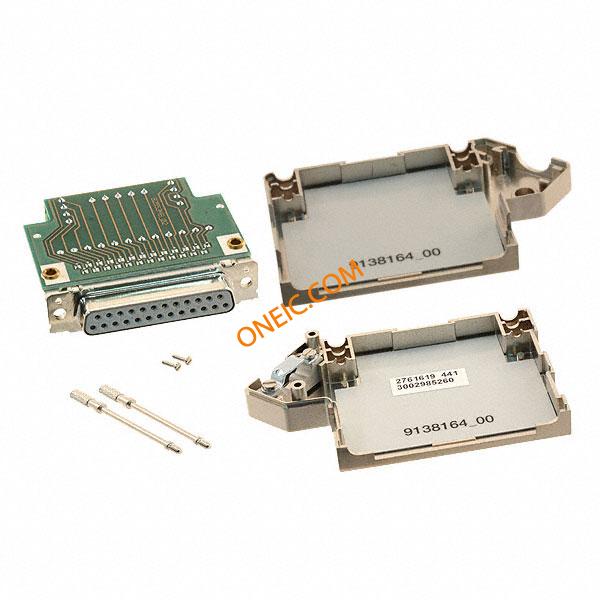

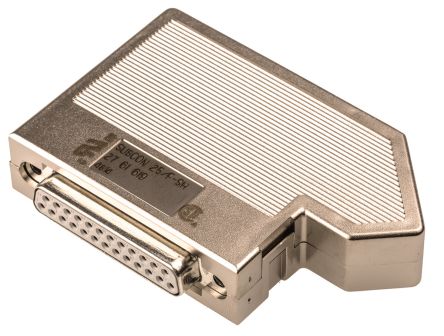

2761619
| Manufacturer | |
| Description | D-Sub Standard Connectors SUBCON 25/F-SH D-SUB Module F 25 POS RA CONN D-SUB 25POS FEM TERM BLOCK SOCKET & BACKSHELL, D, 25WAY Connector;Connector;60VAC/VDC;cUL,ULListed Phoenix Contact SH系列 2.77mm节距 25路 直角 母 螺钉端子 D-sub 连接器, 印刷电路板安装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 28 Days | Tradename | SUBCON-PLUS |
| Subcategory | Connector Other | Part # Aliases | 25/F-SH SUBCON |
| Product Category | D-Sub Standard Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :PHOENIX CONTACT - Wireable D Series | Voltage Rating | 60 V |
| Voltage - Working | :60V | Current Rating (Max) | 1 A |
Mechanical
| Depth | 16 | Height | 78.7 |
| Weight | 3 oz | Material | :ABS |
| Packaging | Bulk | Shell Size | :DB |
| Wire Gauge | :16AWG | Termination | Terminal Block |
| Contact Type | Signal | Mounting Type | Right Angle |
| Shell Plating | Metal Die Cast | Connector Type | Receptacle, Female Sockets |
| Flange Feature | Cable Side; Male Jackscrew (4-40) | Mounting Style | Wire |
| Number of Rows | 2 | Shell Material | Acrylonitrile Butadiene Styrene |
| Connector Style | D-Sub | Material - Body | :Metal |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS), Metal Plated | Termination Style | Screw |
| Number of Contacts | 25 | Contact Termination | :Screw |
| Number of Positions | 25 | Wire Gauge or Range - AWG | :26AWG |
| Material - Housing & Prism | :ABS-VO, metal-plated | Shell Size, Connector Layout | 3 (DB, B) |
| Diameter - Outside, Non-Expanded | :10mm | ||
Product Info
| Type | D-SUB Module | Gender | Female |
| Series | 27 | Features | Cable Clamp, Shielded |
| Industry Aliases | SUBCON 25/F-SH | ||
Environmental
| Mating Cycles | :50 | Operating Temperature | - 20 C to + 75 C |
