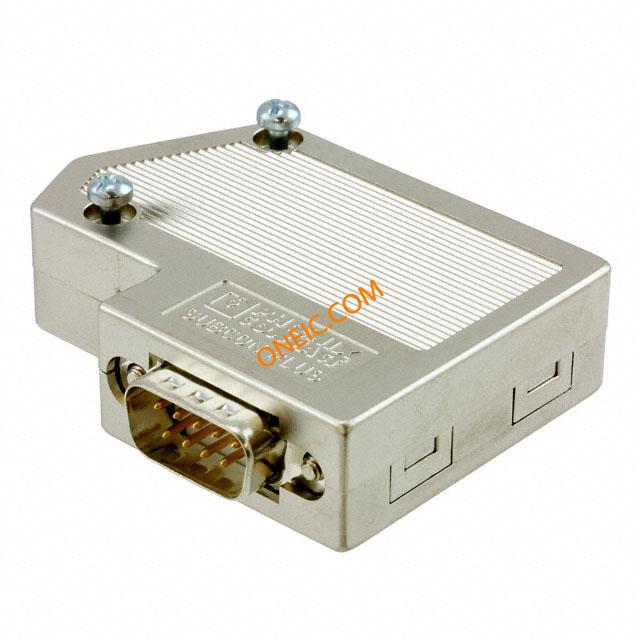

2744348
| Manufacturer | |
| Description | D-Sub Standard Connectors SUBCON-PLUS-PROFIB D-SUB Module M 9 POS RA 9POS DSUB ML CONNECTOR Profibus subD spring terminal connection CONNECTOR, PROFIBUS, 90DEGR SUBCON-PLUS-PROFIB Phoenix Contact SUBCON-PLUS-PROFIB 系列 9路 直角 弹簧端子 D-sub 连接器 插头 |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 28 Days | Tradename | SUBCON-PLUS |
| Subcategory | Connector Other | Part # Aliases | 2744348. |
| Product Category | D-Sub Standard Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | :cULus | ||
Electrical
| Range deg/s | :PHOENIX CONTACT - Profibus Series | Voltage Rating | 60 V |
| Conductor Strand | :0.12mm² | Voltage - Working | :60V |
| Current Rating (Max) | 1 A | ||
Mechanical
| Depth | 16mm | Width | 60mm |
| Height | 60 | Length | 54.5mm |
| Weight | 1.770753 oz | Material | :ABS |
| Packaging | Bulk | Shell Size | :DE |
| Wire Gauge | :20AWG | Termination | Terminal Block |
| Contact Type | Signal | Mounting Type | Right Angle |
| Shell Plating | Metal Die Cast | Connector Type | Plug, Male Pins |
| Flange Feature | Board Side (4-40) | Mounting Style | Wire |
| Number of Rows | 2 | Shell Material | Acrylonitrile Butadiene Styrene |
| Connector Style | D-Sub | Material - Body | :Metal |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS), Metal Plated | Length - Overall | 54.5 |
| Size / Dimension | 54.5 x 60 x 16mm | Termination Style | Crimp |
| Number of Contacts | 9 | Contact Termination | :Screw |
| Cross Section Shape | :0.5mm² | Number of Positions | 9 |
| Wire Gauge or Range - AWG | :28AWG | Shell Size, Connector Layout | 1 (DE, E) |
| Diameter - Outside, Non-Expanded | :8.4mm | ||
Product Info
| Type | D-SUB Module | Gender | Male |
| Series | 27 | Features | Backshell, On-Off Switch, Grounding Indents |
| Industry Aliases | SUBCON-PLUS-PROFIB | ||
Environmental
| Mating Cycles | :200 | Operating Temperature | - 20 C to + 70 C |
