2320238
| Manufacturer | |
| Description | DC/DC Converters UPS/24DC/24DC/20 QUINT UPS 24VDC 20A DIN RAIL Power Supply UPS 24Vdc/24Vdc, 20A UPS - Uninterruptible Power Supplies UPS/24DC/24DC/20 QUINT QUINT-UPS/24DC/24DC/20 Phoenix Contact DIN 导轨安装 UPS 不间断电源 , 24V dc输入, 24V dc输出 |
| Category |
Business
| Lead Time | 12 Days | Tradename | QUINT POWER |
| Subcategory | Not Specified | Standard Pack | 1 |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Output | ScrewTerminals | Operation | Switching |
| Input Type | ScrewTerminals | Output Power | 480 W |
| Voltage Rating | 24V dc | Voltage - Supply | 18-30VDC |
| Number of Outputs | 1 | Voltage - Input (Min) | 18 VDC to 30 VDC |
| Current - Output / Channel | 20 A | ||
Mechanical
| Size | 4.92" L x 1.57" W x 5.12" H (125.0mm x 40.0mm x 130.0mm) | Depth | 125mm |
| Width | 40mm | Length | 130mm |
| Weight | 1.3 lbs (589.7g) | Mounting Type | DIN Rail Mount |
| Mounting Style | DIN Rail | Size / Dimension | 130 x 40 x 125mm |
| Connector - AC Input | Hardwired | Connector - AC Output | Hardwired |
Product Info
| Form | Din Rail | Type | Standby (No Regulation) |
| Series | QUINT-UPS | CAD Drawing | 3D CAD 模型 |
| Manufacturer | QUINT | Base Product Number | QUINT-UPS/24DC/24DC/20 |
Environmental
| Mechanical Life | New Technology: Cutting edge technology for the newest designs. | Run Time (Hours) | 1 h |
| Ingress Protection | IP20 | Operating Temperature | -25°C |
| Backup Time - Max Load | 1Hr. | Maximum Temperature Limit | +70°C |
Documents & Media
Similar Parts

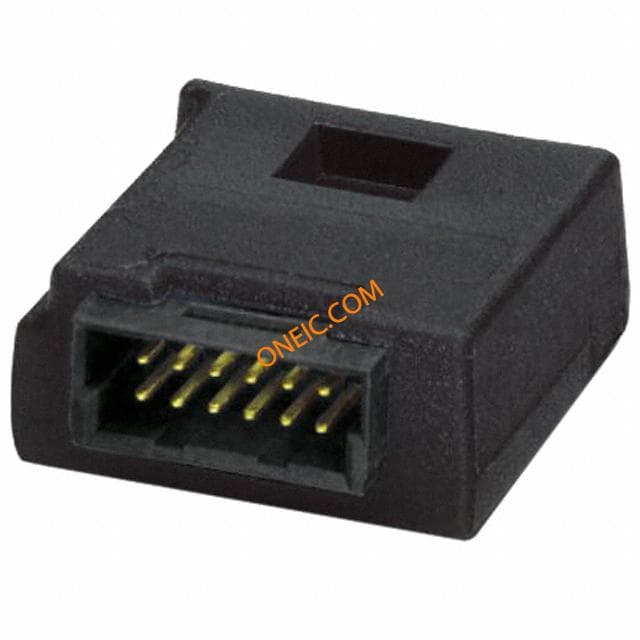

2986122
Phoenix Contact
Terminal Block Tools & Accessories IFS-CONFSTICK Multi-Functional Memory Block For The Interface Systemf For Easystorage And Backup Of The Configuration MEMORY MODULE FOR TRIO UPS IFS-CONFSTICK MULTI-FUNCTIONMEMORYMODULEFORTHEINTERFACESYSTEM;FOREASYSTORAGEANDBACK Phoenix Contact Memory Block, 使用于 SF4B 系列光幕、SF-C13 控制装置

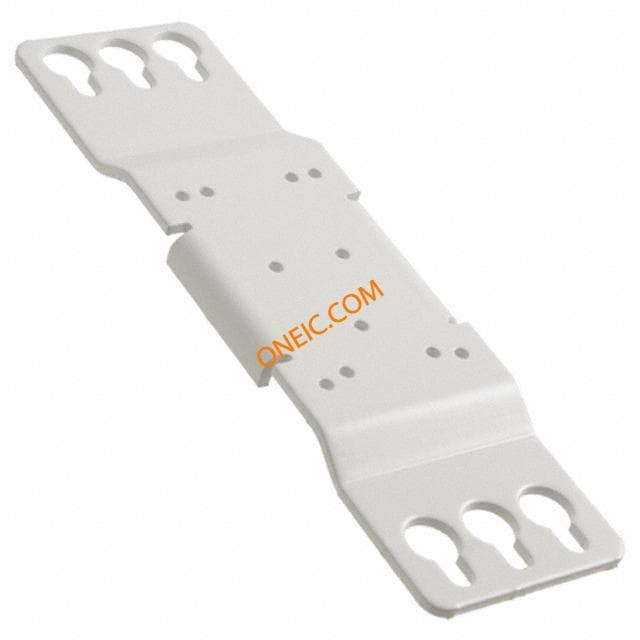

2938235
Phoenix Contact
Linear and Switching Power Supplies UWA 182/52 WALL MNT TRIO/QUINT Universal Wall Adapter UNIVERSAL WALL ADAPTER Universal wall adapter UniversalWallAdapter(usedforQuint-DC-UPS)UWA182/52

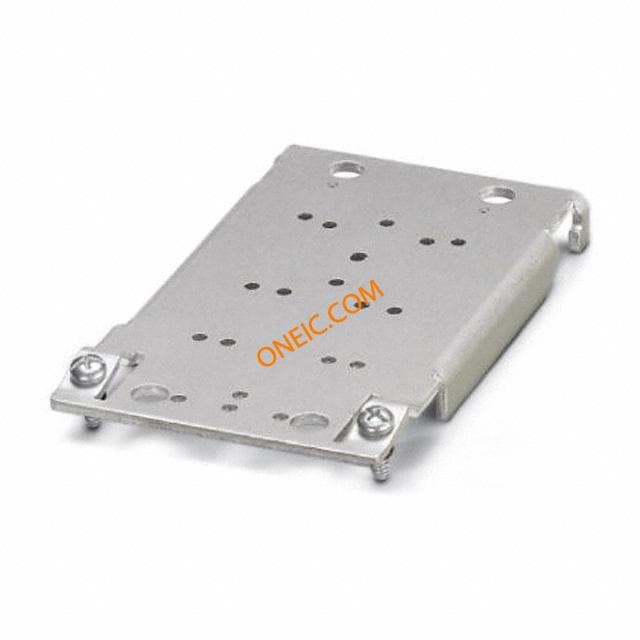

2938196
Phoenix Contact
DIN Rail Power Supplies ASSY ADAPTER Assembly Adapter For Quint Power 2.5 A And 5 A On S7300 Rail ASSEMBLY ADAPTOR QUINT-BS Assembly adapters QUINT-PS-ADAPTERS7/1 QUINT-PS-ADAPTER-S7/1

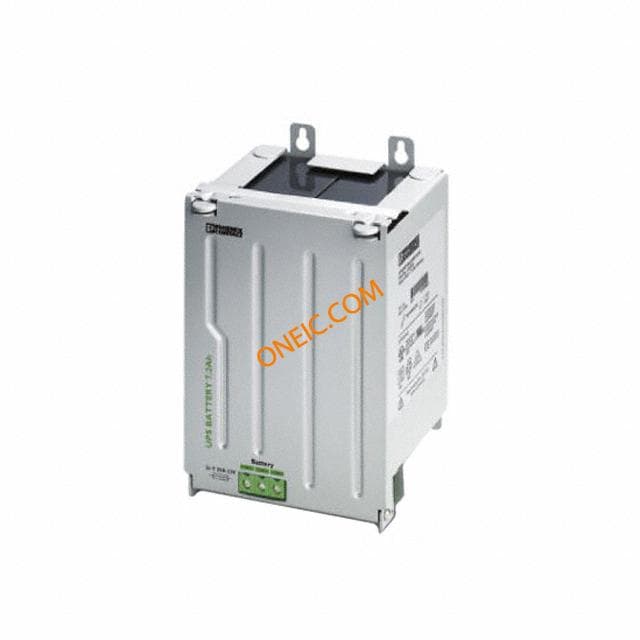

2320319
PHOENIX CONTACT
Rectangular 7.2Ah Rechargeable RECHARGEABLE BATT MODULE 24VDC UPS-BAT/VRLA/24DC/ 7.2 AH Sealed Lead Acid Battery VRLA/24DC/7.2AH QUINT UPS-BAT/VRLA/24DC/7.2AH Phoenix Contact UPS 电源, 110 x 135 x 202mm, 使用于UPS

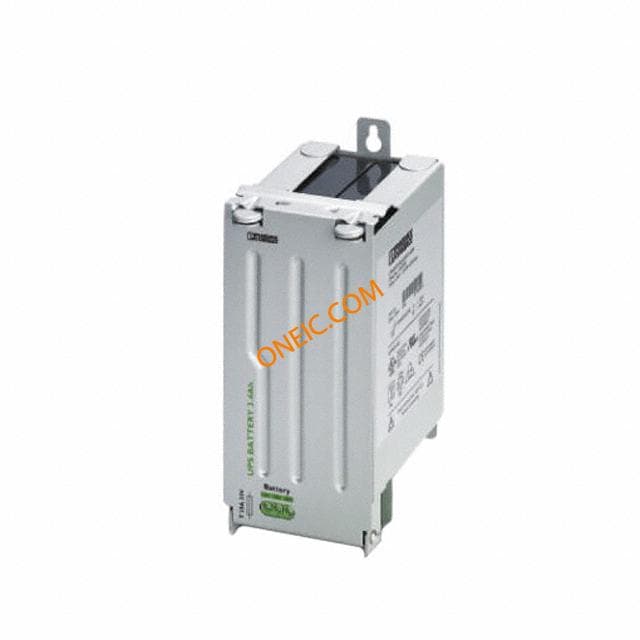

2320306
