1883268
| Manufacturer | |
| Description | Pluggable Terminal Blocks 5.08 3P PLUG IDC Conn Terminal Block F 3 POS 5.08mm ST Cable Mount 10A TERM BLOCK PLUG 3POS STR 5.08MM Printed-circuit board connector QC 1/ 3-ST-5,08 Plug component, Nominal current: 10 A, Nom. voltage: 500 V, Pitch: 5.08 mm, Number of positions: 3, Connection type: Insulation ... Plug component, Nominal current: 10 A, Nom. voltage: 500 V, Pitch: 5.08 mm, Number of positions: 3, Connection type: Insulation displacement connection QUICKON, Color: green QC1/3-ST-508 |
| Category |
Business
| Product | Plugs | Tradename | COMBICON Control |
| Standard Pack | 50 | Product Category | Pluggable Terminal Blocks |
| Standard Package | 1 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 10A | Voltage | 300V |
| Voltage Rating | 500 V | Current Rating (Max) | 10 A |
| Voltage - Input (Min) | 630V | ||
Mechanical
| Color | Green | Depth | 28.2 |
| Pitch | 0.200" (5.08mm) | Height | 15 |
| Weight | 0.195065 oz | Packaging | Bulk |
| Wire Gauge | 18-22 AWG | Termination | IDC |
| Mounting Type | Straight | Contact Finish | Tin |
| Number of Rows | 1 | Plug Wire Entry | 180° |
| Housing Material | Polyamide | Length - Overall | 15.96 |
| Termination Style | IDC / IDT | Number of Contacts | 3 |
| Number of Positions | 3 | Terminal Block Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 20-18 | ||
Product Info
| Type | Terminal Block | Gender | F |
| Series | QC | Features | Retention Latches (Non-Wire Side) |
| Number of Levels | 1 | Positions Per Level | 3 |
Documents & Media
Similar Parts
1800682
Phoenix Contact
Pluggable Terminal Blocks MDSTB 2.5/ 3-G1-5,08 BK HEADER NOMINAL CURRENT 10A NUMBER OFPOSITIONS 3 TERM BLOCK HDR 6POS R/A 5.08MM Conn Terminal Block M 3 POS 5.08mm 10A MDSTB25/3-G1-508BK
1802414
Phoenix Contact
プラグ着脱可能ターミナルブロック MDSTBW 2 5/ 3-G-5 08 Conn Shrouded Header HDR 6 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 5.08MM Header for PCB plug connector MDSTBW 2,5/ 3-G-5,08 Pluggable Terminal Blocks MDSTBW 2 5/ 3-G-5 08 MDSTBW25/3-G-508 Phoenix Contact MDSTBW 系列 端子束夹 , 10A, 400 V
1902754
Phoenix Contact
プラグ着脱可能ターミナルブロック 5.08mm 3P R/A BLK Conn Shrouded Header HDR 3 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 3POS R/A 5.08MM Header for PCB plug connector MSTBA 2,5/ 3-G-5,08 THT Pluggable Terminal Blocks 5.08mm 3P R/A BLK MSTBA25/3-G-508THT COMBICON MSTBA 系列 5.08mm节距 3路 印刷电路板接线端子块, 焊接端接, 12A
1748183
Phoenix Contact
Pluggable Terminal Blocks 3P 5.08mm TERM BLOCK HDR 3POS R/A 5.08MM Header for PCB plug connector MSTBA 2,5/ 3-G-5,08 AU Conn Wire to Board HDR 3 POS 5.08mm MSTBA25/3-G-508AU
1763087
Phoenix Contact
Pluggable Terminal Blocks 3P 5.08mm Conn Shrouded Header HDR 3 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 6POS VERT 5.08MM Header for PCB plug connector MDSTBV 2,5/ 3-G-5,08 Conn;TermBlk;PCB;Header;DblLvl;Sldr;3Pole;5.08mmPitch;COMBICON
1859522
Phoenix Contact
Pluggable Terminal Blocks 3P 5.08mm 180 DEG Conn Shrouded Header HDR 3 POS 5.08mm Press Fit ST Thru-Hole TERM BLOCK HDR 3POS VERT 5.08MM Header for PCB plug connector EMSTBVA 2,5/ 3-G-5,08 EMSTBVA25/3-G-508 Phoenix Contact COMBICON EMSTBVA 系列 3路 5.08mm节距 PCB 接线端子块 , 按式端接, 12A
1757255
Phoenix Contact
Pluggable Terminal Blocks 5.08 3P HEADER 90DEG Conn Shrouded Header HDR 3 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 3POS R/A 5.08MM CONNECTOR, HEADER, THT, RA, 5.08MM, 3WAY Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;3Pole;5.08mmPitch;COMBICON Pluggable terminal block; socket; male; angled; 5.08mm; ways:3 Phoenix Contact COMBICON MSTBA 系列 5.08mm节距 3路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A
1788541
Phoenix Contact
Pluggable Terminal Blocks MVSTBU 2 5/ 3-GB-5 0 Conn Terminal Block F 3 POS 5.08mm Screw Panel Mount 12A TERM BLOCK RCPT 3POS 5.08MM Header for PCB plug connector MVSTBU 2,5/ 3-GB-5,08 Header, nominal current: 12 A, rated voltage: 320 V, pitch: 5.08 mm, no. of positions: 3, mounting: Direct mou MVSTBU25/3-GB-508 Phoenix Contact MVSTBU 系列 3路 5.08mm节距 印刷电路板管座
1762075
Phoenix Contact
Pluggable Terminal Blocks 5.08 3x3P HEADER 90D Conn Shrouded Header HDR 12 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 5.08MM Header for PCB plug connector MDSTB 2,5/ 3-G-5,08 Conn;TermBlk;PCB;Header;DblLvl;90DegAngl;Sldr;3Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MDSTB 系列 5.08mm节距 3路 (2排) 直角 印刷电路板接线端子块, 焊接端接, 10A
1762376
Phoenix Contact
Pluggable Terminal Blocks DBL LEVEL HDR Conn Shrouded Header HDR 3 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 6POS R/A 5.08MM Header for PCB plug connector MDSTB 2,5/ 3-G1-5,08 MDSTB25/3-G1-508
1767384
Phoenix Contact
Pluggable Terminal Blocks 3P 5.08MM Conn Shrouded Header HDR 3 POS 5.08mm Solder Thru-Hole TERM BLOCK HDR 3POS 45DEG 5.08MM Header for PCB plug connector SMSTBA 2,5/ 3-G-5,08 SMSTBA25/3-G-508 Phoenix Contact COMBICON SMSTBA 系列 3路 5.08mm节距 PCB 接线端子块 , 焊接端接, 12A

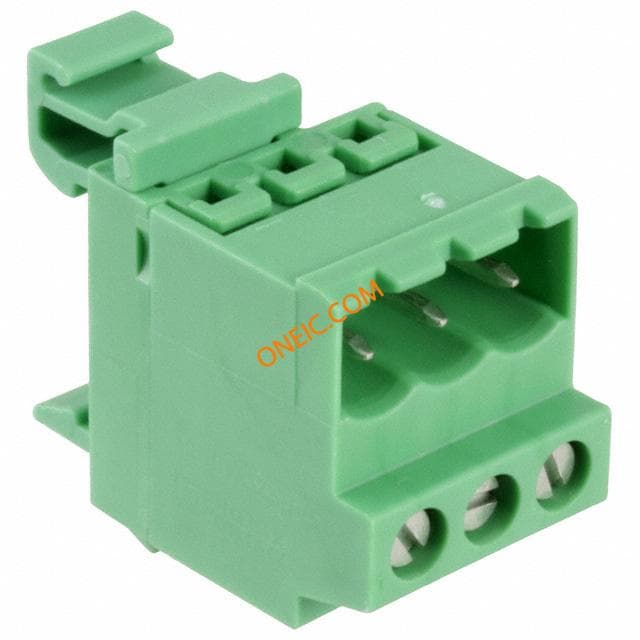

1788732
