1874497
| Manufacturer | |
| Description | Pluggable Terminal Blocks SMSTB 2.5/ 9-ST- 5,08 BK Conn Terminal Block F 9 POS 5.08mm Screw 12A TERM BLOCK PLUG 9POS 5.08MM SMSTB25/9-ST-508BK |
| Category |
Business
| Product | Plugs | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Black | Pitch | 5.08 mm |
| Packaging | Bulk | Wire Gauge | 12-30 AWG |
| Termination | Screw | Mounting Type | Free Hanging (In-Line) |
| Contact Finish | Tin | Plug Wire Entry | 225° |
| Housing Material | Polyamide | Termination Style | Screw |
| Number of Contacts | 9 | Number of Positions | 9 |
| Terminal Block Type | Plug, Female Sockets | Wire Gauge or Range - AWG | 24-12 |
Product Info
| Type | Wire to Wire | Gender | F |
| Series | SMSTB | Features | Retention Latches (Non-Wire Side) |
| Number of Levels | 1 | Positions Per Level | 9 |
Similar Parts
1788790
Phoenix Contact
Pluggable Terminal Blocks MSTBVK 2.5/ 9-G-5.08 Conn Terminal Block HDR 9 POS 5.08mm Screw Cable Mount 12A TERM BLOCK PLUG Header for PCB plug connector MSTBVK 2,5/ 9-G-5,08 MSTBVK25/9-G-508 Phoenix Contact MSTBVK 系列 绿色 印刷电路板管座 , 12A, 630 V
1757310
Phoenix Contact
Pluggable Terminal Blocks 5.08 9P HEADER 90DEG Conn Shrouded Header HDR 9 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 9POS R/A 5.08MM Conn;TermBlk;PCB;Header;SnglLvl;90DegAngl;Sldr;9Pole;5.08mmPitch;COMBICON Phoenix Contact COMBICON MSTBA 系列 5.08mm节距 9路 (1排) 直角 印刷电路板接线端子块, 焊接端接, 12A

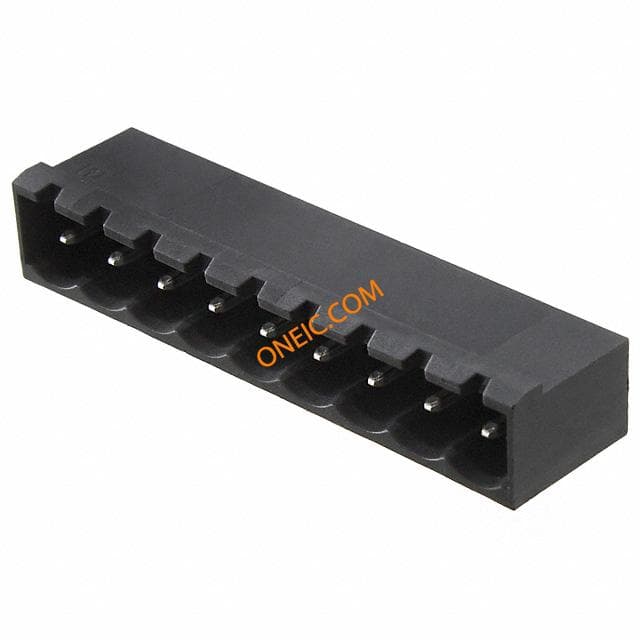

1746952
