1853528
| Manufacturer | |
| Description | Heavy Duty Power Connectors VC-AMS 2 Conn Terminal Block M 2 POS 7.5mm Screw RA Cable Mount 20A CONN CONTACT 2POS SCREW CLAMP VC-AMS2 |
| Category |
Business
| Tradename | PLUSCON Device | Product Category | Heavy Duty Power Connectors |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Voltage Rating | 600V | Current Rating (Max) | 20A |
| Voltage - Input (Min) | 400V | ||
Mechanical
| Depth | 29.8 | Pitch | 7.5 |
| Height | 22 | Weight | 0.271257 oz |
| Packaging | Bulk | Wire Gauge | 12-24 |
| Termination | Screw | Mounting Type | Cable Mount |
| Connector Type | Insert | Contact Finish | Tin |
| Number of Rows | 1 | Insertion Force | Male |
| Contact Material | Brass | Housing Material | Polyamide (PA), Nylon |
| Termination Style | Screw | Number of Contacts | 2 |
| Number of Positions | 2 | Wire Gauge or Range - AWG | 24-12 |
Product Info
| Type | Terminal Block | Gender | M |
| Product Type | Inserts | ||
Environmental
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Similar Parts
1852846
Phoenix Contact
ヘビーデューティパワーコネクタ VC-TFS 2 Conn Terminal Block F 2 POS 7.5mm Screw RA Cable Mount 20A CONN CONTACT 2POS SCREW CLAMP Heavy Duty Power Connectors VC-TFS 2 VC-TFS2 VC-TFS系列 紧凑型电源连接器 触点插件, 使用于Sleeve Frame
1600027
Phoenix Contact
Heavy Duty Power Connectors CODING SECTION Coding Section Is Inserted Into The Slot On The Plug And Panel Mounting Base Red Insulating Material TERM BLOCK CODING PROFILE Coding profile CP-HCC 4 CP-HCC4
1852985
Phoenix Contact
Heavy Duty Power Connectors VC-AR2/3M Panel Mounting Frame, Without Pe, For Contact Insert Modules CONN FRAME PANEL MT 3POS INSERT Panel mounting frames VC-AR2/3M VC-AR2/3M
1853007
Phoenix Contact
ヘビーデューティパワーコネクタ VC-AR4/5M Panel Mounting Frame, Without Pe, For Contact Insert Modules CONN FRAME PANEL MT 5POS INSERT Panel mounting frames VC-AR4/5M Heavy Duty Power Connectors VC-AR4/5M VC-AR4/5M Phoenix Contact VC4 系列 安装框架

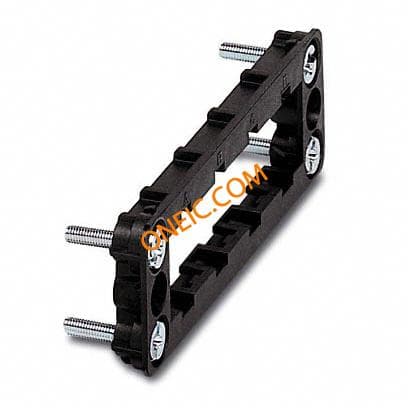

1852972
